How the machine works
Film is unwound and shaped vertically into the selected sachet format. The product is dosed, then the sachet is sealed, cut, and discharged.
Granule Packaging Machines

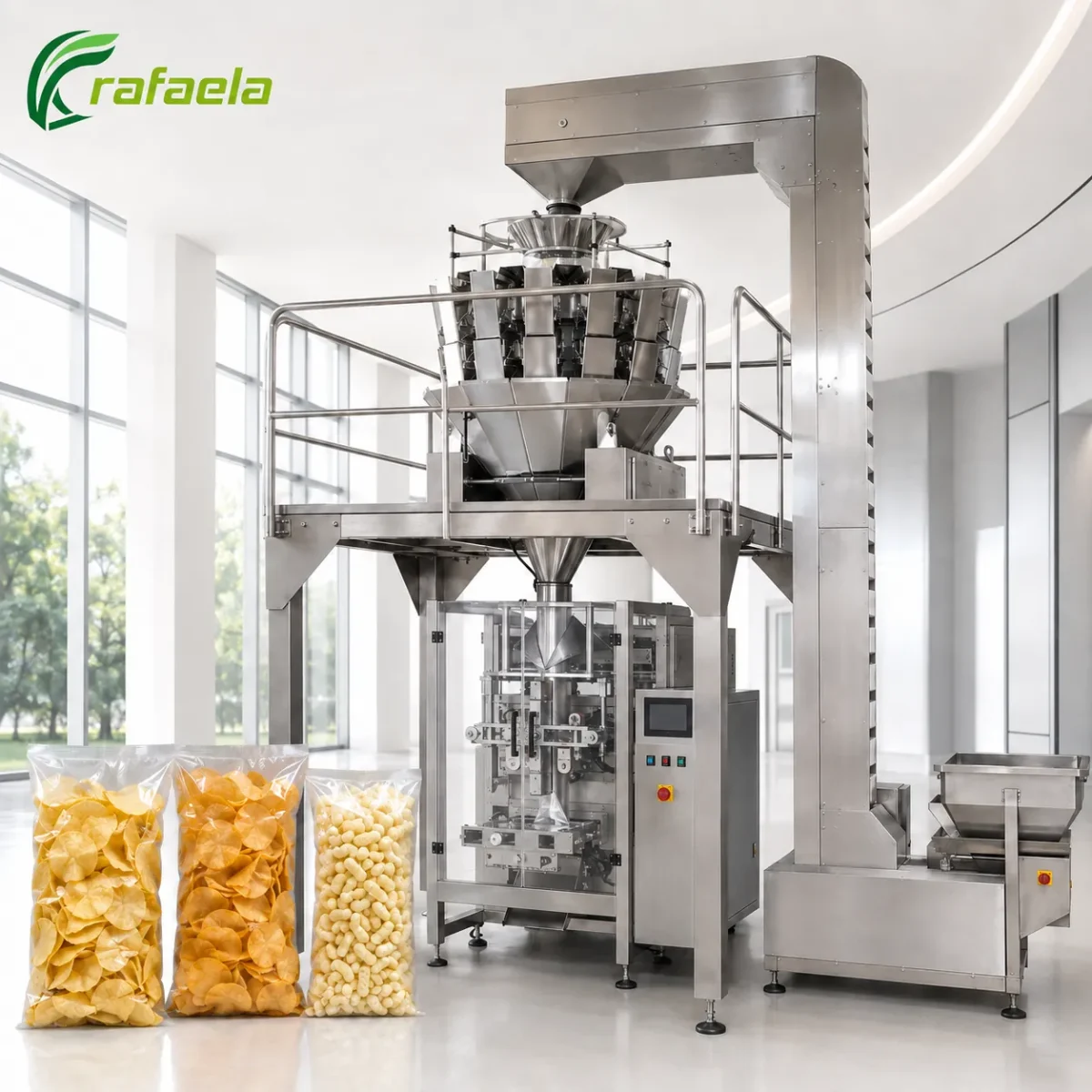

Vertical Form Fill and Seal Packaging Machine
The Vertical Sachet Filling Machine is a VFFS system designed to form sachets directly from roll film while automatically measuring, filling, sealing, and cutting each pack. It can be configured for granules and solid pieces by selecting the appropriate filling system. The listed net weight range is 5g-5kg, with bag widths of 50-300mm and lengths of 60-400mm. Packaging speed is listed at 20-90 bags per minute, while PLC touch-screen control supports flexible sachet production.
20-90 bags/minCapacity
Heat Sealing / Ultrasonic Sealing / Impulse SealingSealing Type
210kgWeight
Stainless Steel 304 / Stainless Steel 316Material
Overview
The Vertical Sachet Filling Machine is intended for continuous sachet production from roll film. Product type, target dose, film structure, and bag dimensions determine the final configuration.
Applications and options
The machine can be configured for granules, powders, liquids, pastes, and solid pieces. Optional functions include date coding, nitrogen flushing, and tear notches.
Machine Advantages
Continuous Sachet Formation from Roll Film
The machine forms each sachet directly from packaging film, eliminating the need to load premade pouches and supporting continuous automatic production.
Product-Specific Filling System Selection
A multihead weigher, auger filler, pump filler, or volumetric cup filler can be selected, allowing the dosing method to match the actual product.
Flexible Sachet Dimensions
The listed bag width range is 50-300mm and the bag length range is 60-400mm, giving users flexibility for different sachet sizes.
Multiple Sealing Technologies
Heat sealing, ultrasonic sealing, and impulse sealing are listed as available methods. The suitable system can be selected according to film structure and packaging requirements.
Faster Product and Bag Changeover
The listed changeover time is 10-30 minutes depending on the setup. PLC control and a color touch-screen interface help simplify routine parameter changes.
Vertical Form Fill and Seal Packaging Machine Video
Technical Parameters
| Packing Speed | 20-90 bags/min |
|---|---|
| Bag Type | Pillow Bag / Gusset Bag / Stick Pack / Sachet / Quad Seal Bag |
| Packaging Material | Plastic Film / Laminated Film / Aluminum Foil / Paper Film |
| Sealing Method | Heat Sealing / Ultrasonic Sealing / Impulse Sealing |
| Machine Weight | 210kg |
| Product Name | Vertical Form Fill and Seal Packaging Machine |
| Main Model | VFP-320 |
| Bag Forming Type | Vertical Form-Fill-Seal (VFFS) |
| Suitable Products | Granules / Powder / Liquid / Paste / Solid Pieces |
| Filling System | Multihead Weigher / Auger Filler / Pump Filler / Volumetric Cup Filler |
| Net Weight Range | 5g-5kg, Customizable |
| Filling Accuracy | ±0.2%-±1%, Depending on Product and Filling System |
| Alternative Speed Range | 30-120 bags/min, Depending on Model and Product |
| Bag Size Range | Width 50-300mm / Length 60-400mm, Customizable |
| Film Roll Specification | Max Width 620mm / Max Diameter 500mm / Core 75mm |
| Control System | PLC + Touch Screen |
| Operation Interface | Color Touch Screen / Multi-language Support |
| Power Supply | 220V / 380V, 50Hz / 60Hz |
| Listed Power | 3.9KW |
| Air Supply Requirement | 0.6MPa, 0.3-0.6m³/min |
| Machine Material | Stainless Steel 304 / Stainless Steel 316 |
| Listed Machine Dimensions | 1500x960x1120mm |
| General Machine Dimension Range | L1200-1600mm x W900-1200mm x H2200-2600mm |
| Changeover Time | 10-30 minutes |
| Optional Functions | Date Coder / Nitrogen Flushing / Tear Notch |
Frequently Asked Questions
What products can the Vertical Sachet Filling Machine pack?
The source lists granules, powders, liquids, pastes, and solid pieces. The final filling system should be matched to the actual material.
What is the supported filling range?
The listed net weight range is 5g-5kg and can be customized.
What sachet dimensions are available?
The listed bag width is 50-300mm and bag length is 60-400mm.
Which filling systems can be selected?
The source lists multihead weigher, auger filler, pump filler, and volumetric cup filler configurations.
How fast can the machine run?
The primary listed speed is 20-90 bags per minute. Another range of 30-120 bags per minute is also provided depending on model and product, so final speed should be confirmed for the selected setup.
What details are needed before ordering?
Please provide the product type, target filling weight or volume, sachet width and length, film material, required output, sealing requirement, and voltage. Product and film samples are recommended for final configuration confirmation.
