How the machine works
Roll film is unwound, shaped around the forming section, and sealed into a bag tube. Product is dosed before final sealing, cutting, and discharge.
Solid Packaging Machines

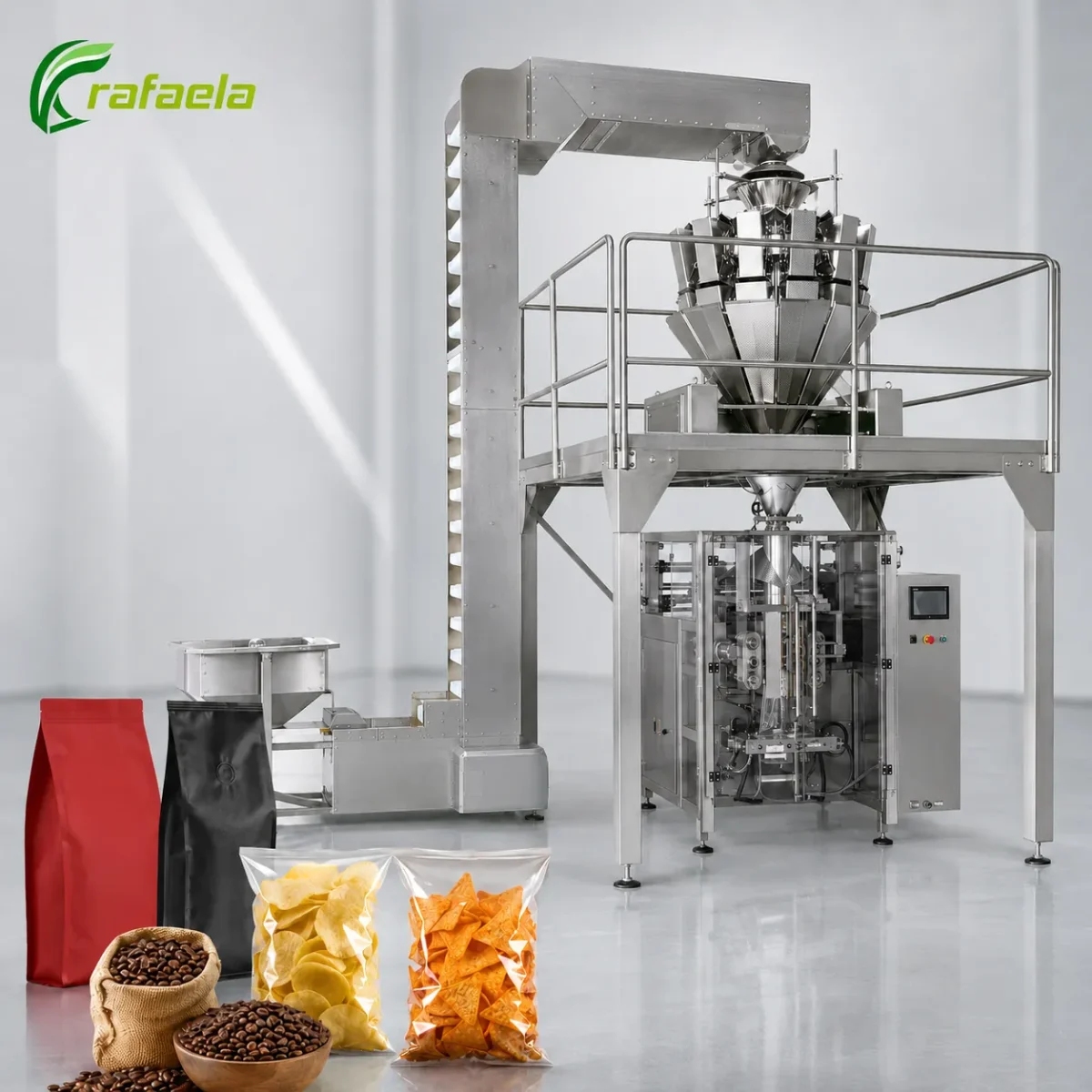

Vertical Sachet Filling Machine
The Vertical Form Fill and Seal Packaging Machine is designed to convert roll film into finished packages through one continuous forming, filling, and sealing process. Based on the VFP-320 platform, it can be configured for granules, powders, liquids, pastes, and solid pieces by selecting the appropriate dosing system. The machine supports a listed net weight range of 5g-5kg, bag widths of 50-300mm, and bag lengths of 60-400mm. PLC touch-screen control, multiple sealing methods, and several bag formats make it suitable for flexible VFFS production.
20-90 bags/minCapacity
Heat Sealing / Ultrasonic Sealing / Impulse SealingSealing Type
210kgWeight
Stainless Steel 304 / Stainless Steel 316Material
Overview
The Vertical Form Fill and Seal Packaging Machine integrates bag forming, product filling, and sealing into one vertical system. The selected filling module determines how the machine is matched to the product.
Applications and options
The machine can be configured for granules, powders, liquids, pastes, and solid pieces. Optional functions include date coding, nitrogen flushing, and tear notches.
Machine Advantages
Integrated Form-Fill-Seal Process
Bag forming, filling, sealing, and cutting are completed within one continuous vertical workflow, reducing separate handling between packaging stages.
Modular Filling System Selection
The source lists multihead weigher, auger filler, pump filler, and volumetric cup filler options, allowing the VFFS platform to match different product characteristics.
Broad Bag Format Support
Pillow bags, gusset bags, stick packs, sachets, and quad seal bags are listed. Supported bag dimensions range from 50-300mm in width and 60-400mm in length.
Multiple Sealing Methods
Heat sealing, ultrasonic sealing, and impulse sealing are available according to the selected film and package structure.
Flexible Production Changeover
The listed changeover time is 10-30 minutes depending on the setup. PLC control and a color touch-screen interface support routine parameter adjustment when changing products or bag specifications.
Vertical Sachet Filling Machine Video
Technical Parameters
| Packing Speed | 20-90 bags/min |
|---|---|
| Bag Type | Pillow Bag / Gusset Bag / Stick Pack / Sachet / Quad Seal Bag |
| Packaging Material | Plastic Film / Laminated Film / Aluminum Foil / Paper Film |
| Sealing Method | Heat Sealing / Ultrasonic Sealing / Impulse Sealing |
| Machine Weight | 210kg |
| Product Name | Vertical Sachet Filling Machine |
| Main Model | VFP-320 |
| Bag Forming Type | Vertical Form-Fill-Seal (VFFS) |
| Suitable Products | Granules / Powder / Liquid / Paste / Solid Pieces |
| Filling System | Multihead Weigher / Auger Filler / Pump Filler / Volumetric Cup Filler |
| Net Weight Range | 5g-5kg, Customizable |
| Filling Accuracy | ±0.2%-±1%, Depending on Product and Filling System |
| Alternative Speed Range | 30-120 bags/min, Depending on Model and Product |
| Bag Size Range | Width 50-300mm / Length 60-400mm, Customizable |
| Film Roll Specification | Max Width 620mm / Max Diameter 500mm / Core 75mm |
| Control System | PLC + Touch Screen |
| Operation Interface | Color Touch Screen / Multi-language Support |
| Power Supply | 220V / 380V, 50Hz / 60Hz |
| Listed Power | 3.9KW |
| Air Supply Requirement | 0.6MPa, 0.3-0.6m³/min |
| Machine Material | Stainless Steel 304 / Stainless Steel 316 |
| Listed Machine Dimensions | 1500x960x1120mm |
| General Machine Dimension Range | L1200-1600mm x W900-1200mm x H2200-2600mm |
| Changeover Time | 10-30 minutes |
| Optional Functions | Date Coder / Nitrogen Flushing / Tear Notch |
Frequently Asked Questions
What does the Vertical Form Fill and Seal Packaging Machine do?
It forms bags from roll film, fills the selected product, seals the package, and cuts the finished bag in one vertical process.
What products can be packed?
The source lists granules, powders, liquids, pastes, and solid pieces.
What filling systems are available?
The listed options are multihead weigher, auger filler, pump filler, and volumetric cup filler.
What bag sizes are supported?
The listed bag width is 50-300mm and the bag length is 60-400mm.
What is the packaging speed?
The primary listed range is 20-90 bags per minute. Another range of 30-120 bags per minute is also provided depending on model and product, so final speed should be confirmed for the selected configuration.
What information should be provided before ordering?
Please provide the product type, target weight or volume, bag dimensions, bag style, film material, sealing requirement, required output, and voltage. Product and film samples are recommended for final configuration confirmation.
