Powder Packaging Machines

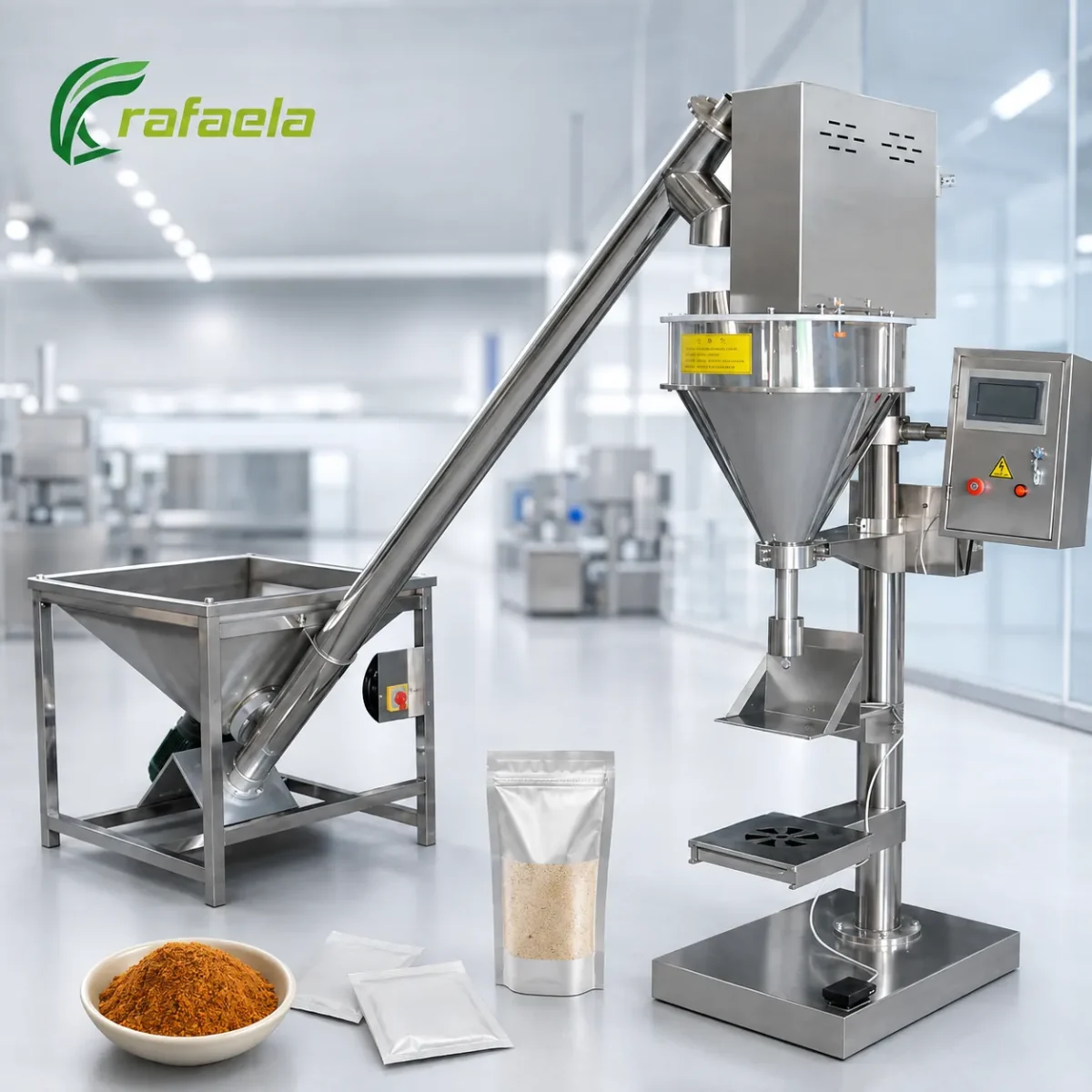

Semi Automatic Auger Filler

The Semi Automatic Auger Filler is built for controlled dosing and filling of powder materials from 5g to 5000g per cycle. A servo-driven auger screw meters the product from a 50-liter hopper and delivers it through the filling outlet with stable, repeatable movement. With a stated filling accuracy of ≥99% and a filling speed of up to 50 fills per minute, the machine is suitable for flexible small and medium production where operators need reliable powder dosing without using a fully automatic packaging line.

AC Single-phase 220VVoltage

Food Grade Stainless Steel SUS 304Material

Get a Quote

Overview

The Semi Automatic Auger Filler provides a practical solution for manufacturers that need accurate powder filling with simple operation and flexible container handling. The machine integrates material storage, screw feeding, quantitative dosing, and weighing assistance in a compact structure. Its stainless steel contact and working surfaces are designed for routine production, while the servo-controlled auger helps maintain consistent filling performance when processing powders with different flow characteristics.

How the machine works

Powder is first loaded into the 50-liter hopper. During operation, the servo motor rotates the auger screw according to the selected filling settings, moving a controlled amount of material toward the discharge outlet. The operator positions the container or receiving package below the outlet and starts the filling cycle. The weighing system and high-precision sensors assist with quantity control, helping the Semi Automatic Auger Filler maintain stable results from one cycle to the next.

Applications and options

The Semi Automatic Auger Filler can be used for a variety of free-flowing and non-free-flowing powder materials. Suitable applications may include flour, seasoning powder, milk powder, coffee powder, cocoa powder, starch, sugar powder, protein powder, spice powder, detergent powder, and similar dry materials. Different auger screw specifications can be selected according to powder density, particle size, flowability, target filling weight, and required production speed.

Machine Advantages

Flexible Semi-Automatic Operation

The machine allows operators to position containers manually while the auger system controls the filling quantity. This setup is suitable for businesses that need flexible production without the complexity of a fully automatic filling and packaging line.

Broad Filling Range

With a stated filling range of 5g to 5000g, the machine can support multiple target weights on one filling platform. Different screw sizes and parameter settings can be matched to the required dosage and material characteristics.

Servo-Controlled Auger System

The auger screw is driven by a servo motor, providing controlled rotation and repeatable powder feeding. This helps improve dosing stability and allows operating settings to be adjusted more precisely for different materials.

Stable Filling Accuracy

The machine has a stated filling accuracy of ≥99%. Its controlled screw feeding system works together with the weighing structure and high-precision sensors to reduce large variations and support more consistent filling results.

Suitable for Different Powder Characteristics

Different auger screw accessories can be configured for fine powders, dense powders, and materials with slightly larger particles. This makes the machine adaptable when production involves several powder products with different flow behavior.

Semi Automatic Auger Filler Video

Technical Parameters

Model	QT-F2
Voltage	AC Single-phase 220V
Product Name	Semi Automatic Auger Filler
Filling Weight	5g-5000g
Filling Speed	0-50 fills/min
Filling Accuracy	≥99%
Hopper Volume	50 Liters
Feeding System	Servo Motor Controlled Auger Screw
Machine Material	Food Grade Stainless Steel SUS 304
Warranty Period	2 Years
Certification	CE

Frequently Asked Questions

What products can the Semi Automatic Auger Filler fill?

The machine is intended for dry powder materials. Typical applications include flour, seasoning powder, coffee powder, cocoa powder, starch, sugar powder, milk powder, protein powder, detergent powder, spice powder, and similar materials. The exact screw configuration should be selected according to the actual product.

What is the available filling range?

The stated filling range is 5g-5000g. The suitable operating range for a specific material depends on its bulk density, flowability, target weight, and the selected auger screw. Providing actual product information helps determine the most appropriate setup.

What is the maximum filling speed?

The machine has a stated filling speed of 0-50 fills per minute. Actual production speed varies with the filling weight, powder characteristics, screw specification, container handling speed, and operator working rhythm.

How does the machine control filling accuracy?

The Semi Automatic Auger Filler uses servo-controlled screw feeding to meter the powder consistently. A weighing pan and high-precision sensors assist with quantity measurement. Proper adjustment of the screw, filling parameters, and material supply helps maintain stable results.

Is it suitable for different container types?

Because the machine uses a semi-automatic filling method, operators can place different compatible containers below the filling outlet. Final suitability depends on the container opening, height, filling weight, and working layout. Container dimensions should be supplied before the machine configuration is confirmed.

What information should I provide before ordering?

Please provide the powder name, product photos, bulk density if available, target filling weight, required output, container type, container opening size, and electrical requirement. Material samples can also be useful for checking flow behavior and selecting the correct auger screw before production.
