Powder Packaging Machines

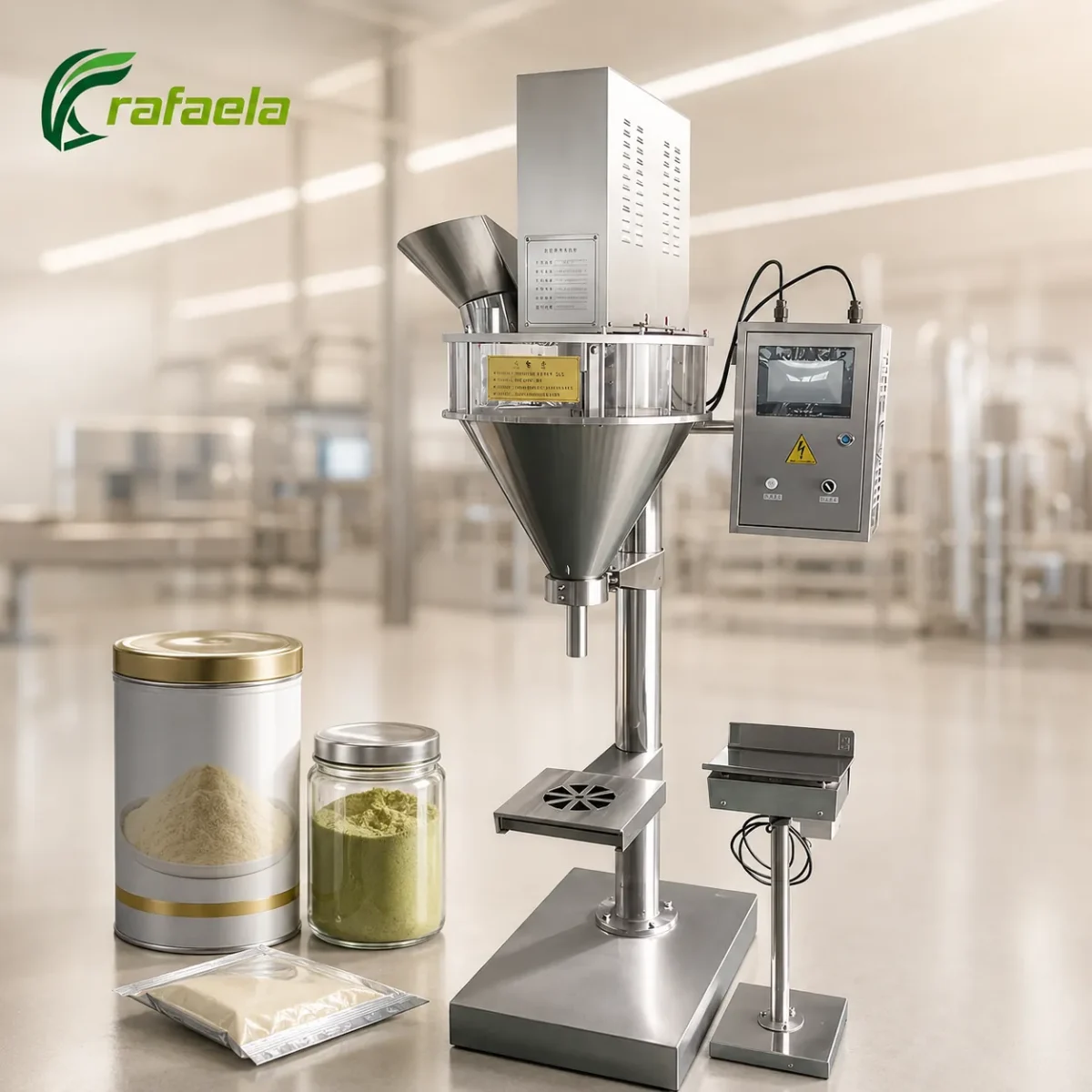

The Auger Powder Filler is designed for accurate quantitative filling of powder materials within a 5g-5000g filling range. A servo motor controls the auger screw to move material steadily from the 50-liter hopper to the filling outlet, supporting speeds of up to 50 fills per minute depending on the powder, target weight, and operating conditions. With a stated filling accuracy of ≥99%, SUS 304 stainless steel construction, screw-sealed feeding, and a precision weighing system, the machine is suitable for stable day-to-day powder filling and regular product changeovers.
The Auger Powder Filler combines powder storage, screw feeding, quantitative dosing, and weighing in one compact filling system. Its servo-controlled auger provides steady material transport, while the large-capacity hopper and sealed screw structure help reduce powder leakage and dust around the working area. The machine is intended for reliable filling of different powder materials where consistent weight control and convenient operation are important.
Powder is loaded into the 50-liter hopper and guided toward the auger feeding section. During each filling cycle, the servo motor drives the screw at a controlled rate to deliver a measured amount of material through the outlet. The weighing pan and high-precision sensors assist with quantitative control, helping the Auger Powder Filler maintain repeatable filling results throughout routine production.
The Auger Powder Filler can be configured for a range of powder materials, from very fine powders to materials with larger particles. Different screw accessories can be selected according to the powder’s flow characteristics, particle size, target filling weight, and required output. Final configuration should be confirmed using the actual material, target weight, and production requirements before manufacturing.
The machine covers a stated filling range of 5g to 5000g, allowing one filling platform to handle different target weights. Final performance depends on the material characteristics, selected auger screw, filling amount, and operating settings.
A servo motor controls the auger screw to provide steady and repeatable material transport. This controlled feeding method supports more consistent dosing and helps operators maintain stable filling performance during continuous production.
The filling system is designed for a stated accuracy of ≥99%. A thick weighing pan works with high-precision sensors to provide sensitive measurement, while smooth screw feeding helps reduce irregular discharge and improve repeatability.
The large-capacity hopper uses a screw-sealed feeding structure that helps limit powder escaping during operation. This design supports a cleaner working area and is especially useful when handling fine powders that can easily create airborne dust.
Customizable auger screw accessories allow the machine to be matched to powders with different particle sizes and flow properties. This makes product changeovers more practical when several powder materials are filled on the same production site.
| Model | QT-F2 |
|---|---|
| Voltage | AC Single-phase 220V |
| Product Name | Auger Powder Filler |
| Filling Weight | 5g-5000g |
| Filling Speed | 0-50 fills/min |
| Filling Accuracy | ≥99% |
| Hopper Volume | 50 Liters |
| Feeding System | Servo Motor Controlled Auger Screw |
| Machine Material | Food Grade Stainless Steel SUS 304 |
| Warranty Period | 2 Years |
| Certification | CE |
The machine is designed for powder materials and can be configured for both ultra-fine powders and materials containing larger particles. Because different powders flow differently, the actual material should be confirmed before the auger screw and filling setup are selected.
The stated filling range is 5g-5000g. The most suitable configuration within this range depends on the target weight, powder density, flow behavior, required accuracy, and selected screw accessory. Providing material details helps confirm the correct setup.
The stated filling speed is 0-50 fills per minute. Actual output can vary according to the target filling weight, material properties, screw configuration, operator workflow, and the time required for each filling cycle.
The stated filling accuracy is ≥99%. The machine uses controlled auger feeding together with a thick weighing pan and high-precision sensors. Final filling consistency also depends on the powder characteristics, target weight, machine adjustment, and stable material supply.
Yes. Customizable screw accessories allow the filling system to be matched to powders with different particle sizes and flow characteristics. When changing to a significantly different material, the screw configuration and operating settings should be checked again before production.
Please provide the powder type, material condition, target filling weight, required output, and any relevant container or receiving dimensions. A material sample is also helpful when available. These details allow the auger screw, filling settings, and overall configuration to be matched more accurately to the application.
