How the machine works
Premade pouches are picked and transferred through the rotary stations while product is measured by the multihead weigher. Each pouch is opened, filled, sealed, and discharged in sequence under PLC control.
Multihead Weigher Rotary Pouch Packaging Machine
Rotary Premade Pouch Packing Machine

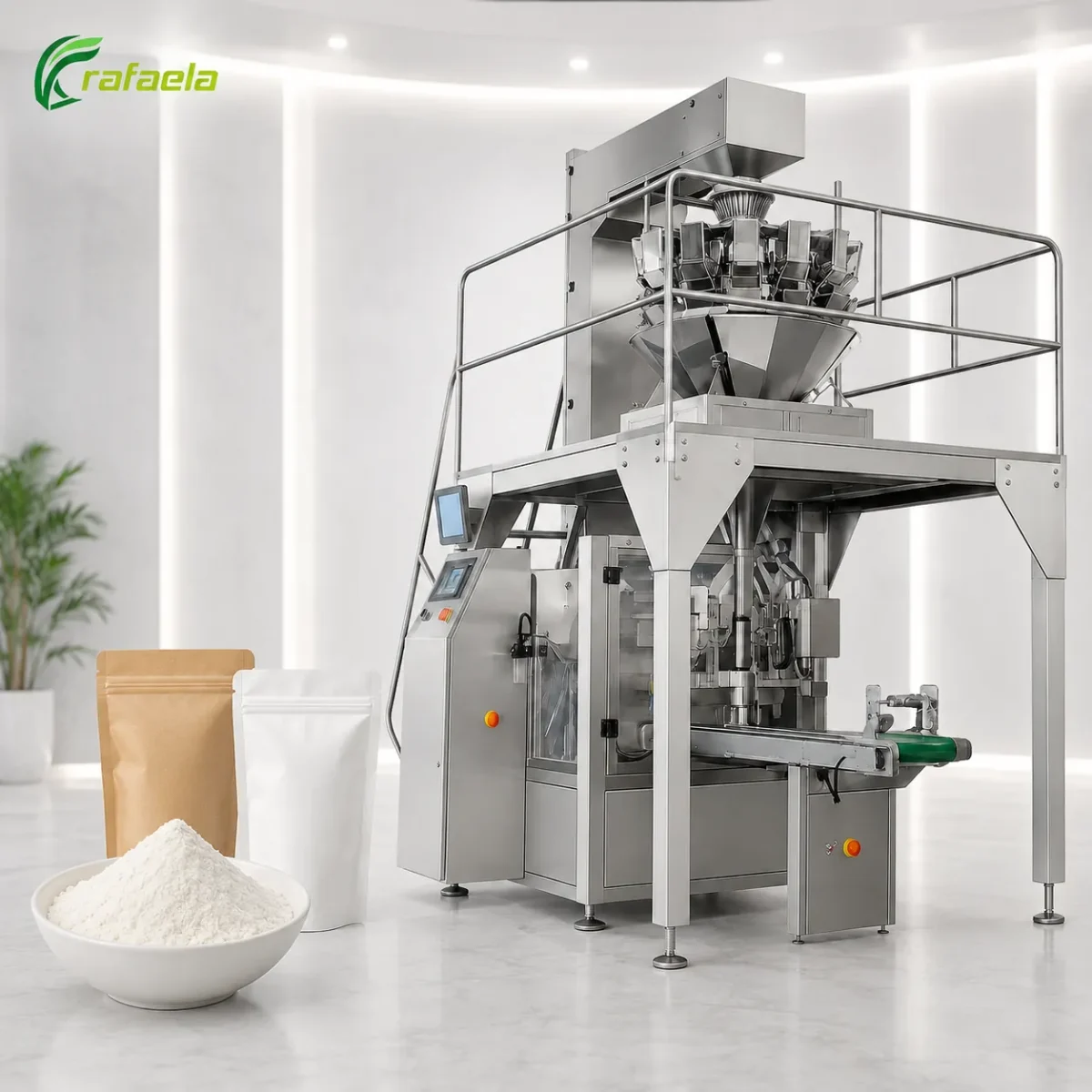

The Rotary Premade Pouch Packing Machine, model RWP-6, is designed for automatic weighing, filling, and sealing of preformed pouches in a rotary packaging process. It supports a stated packaging speed of 20-60 bags per minute and a customizable weighing range from 10 to 2000g. Compatible pouch styles include stand-up pouches, zipper pouches, four-side seal bags, and three-side seal bags. With a multihead weighing system, PLC touch-screen control, and SUS304 stainless steel construction, the machine is suitable for high-efficiency packaging of snacks, nuts, dried fruits, candies, frozen food, and similar products.
3.5KWPower
400kgWeight
SUS304 Stainless SteelMaterial
Overview
The Rotary Premade Pouch Packing Machine uses multiple rotary stations to move each pouch through opening, filling, sealing, and discharge. It is intended for premade pouch projects that require broader weight ranges and higher automation than compact single-station pouch fillers.
Applications and options
The RWP-6 is suitable for snacks, candies, nuts, dried fruits, frozen food, pet food, and other compatible products. Optional line components include a multihead weigher, Z-type elevator, and working platform.

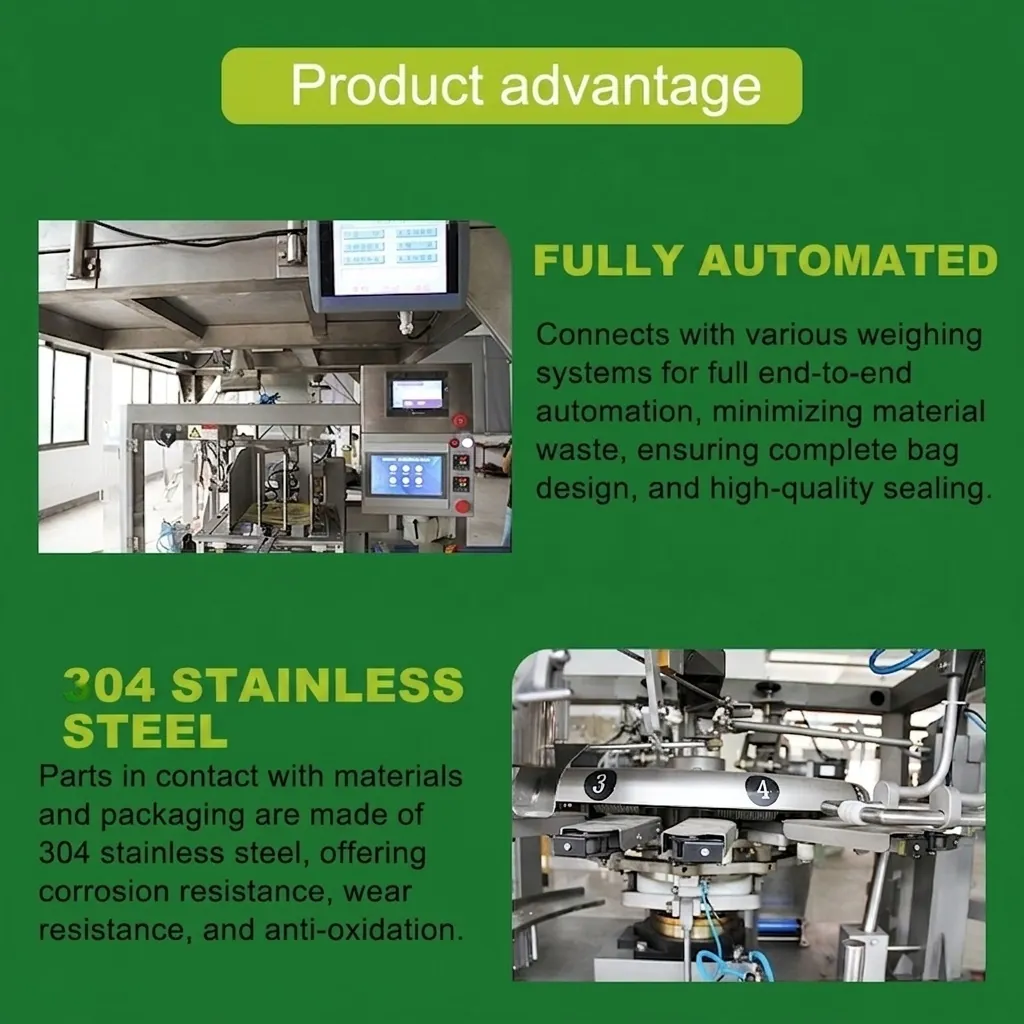

Machine Advantages
Rotary Multi-Station Packaging
The rotary structure allows several packaging steps to operate in sequence around one machine platform. This helps maintain continuous pouch movement and supports stable automatic production.
Wide 10-2000g Weighing Range
The listed weighing range is 10-2000g and can be customized. This gives the machine flexibility for both smaller retail packs and larger premade pouch formats.
Multihead Weighing Accuracy
The source lists a weighing accuracy of ±0.5-2g. The multihead weighing configuration helps improve portion consistency when packaging compatible free-flowing products.
Multiple Premade Pouch Styles
Stand-up, zipper, four-side seal, and three-side seal bags are supported, allowing users to select different retail pouch formats without changing the basic rotary packaging concept.
PLC Touch-Screen Control
The PLC and touch-screen system provides centralized control for operating parameters and pouch-packaging adjustments, helping simplify routine production changes.
Rotary Premade Pouch Packing Machine Video
Technical Parameters
| Machine Type | Multihead Weigher Rotary Pouch Packaging Machine |
|---|---|
| Model | RWP-6 |
| Packaging Material | Laminated Film / Paper-Plastic Composite / Aluminum Foil |
| Power | 3.5KW |
| Machine Dimensions | 1600x1250x1200mm |
| Machine Weight | 400kg |
| Product Name | Rotary Premade Pouch Packing Machine |
| Packaging Speed | 20-60 bags/min |
| Weighing Range | 10-2000g, Customizable |
| Accuracy | ±0.5-2g |
| Pouch Type | Stand-up Pouch / Zipper Pouch / Four-side Seal Bag / Three-side Seal Bag |
| Applicable Products | Snacks / Candies / Nuts / Dried Fruits / Frozen Food / Pet Food |
| Control System | PLC with Touch Screen |
| Power Supply | 220V / 380V, 50/60Hz |
| Machine Material | SUS304 Stainless Steel |
| Optional Line Components | Multihead Weigher / Z-Type Elevator / Working Platform |
Frequently Asked Questions
What pouch types can the Rotary Premade Pouch Packing Machine use?
The listed pouch types are stand-up pouches, zipper pouches, four-side seal bags, and three-side seal bags.
What is the packaging speed?
The stated speed is 20-60 bags per minute. Actual output depends on product type, pouch size, filling weight, and machine settings.
What weighing range is supported?
The listed weighing range is 10-2000g, with customization available according to the project.
What products are suitable for this machine?
The source lists snacks, candies, nuts, dried fruits, frozen food, and pet food. Final suitability depends on product characteristics and the selected weighing system.
What packaging materials are supported?
The listed materials are laminated film, paper-plastic composite, and aluminum foil pouch structures.
What information should be provided before ordering?
Please provide the product type, target weight, pouch style, pouch dimensions, pouch material, required output, and voltage. Product and pouch samples are also recommended for final configuration confirmation.
