How the machine works
Product is delivered to the multihead weighing system and divided into the target portion before filling. Premade pouches are then opened, filled, sealed, and discharged through the rotary packing sequence under PLC control.
Multihead Weigher Rotary Pouch Packaging Machine

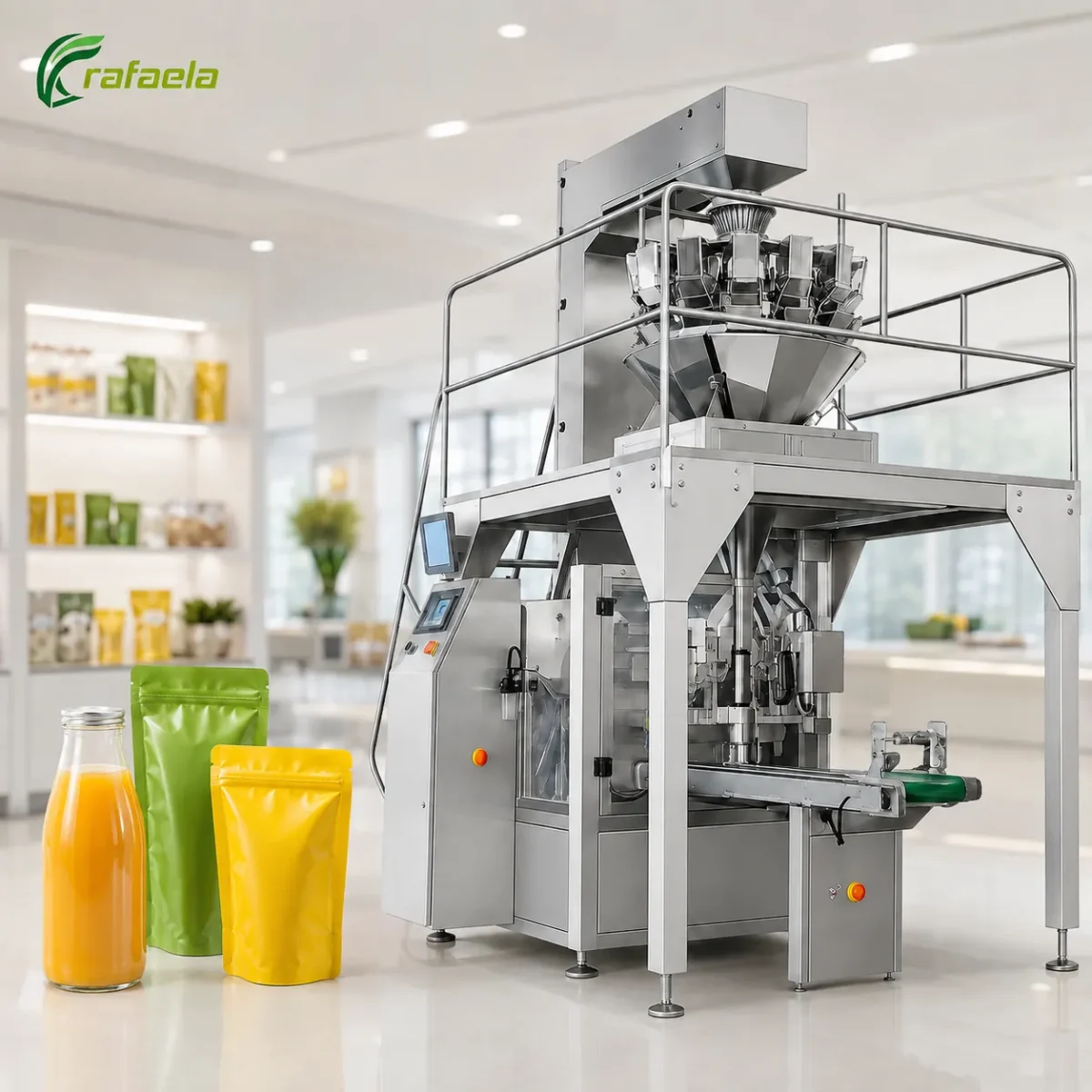

Multihead Weigher Pouch Packing Machine
The Multihead Weigher Pouch Packing Machine, model RWP-6, is designed for automatic weighing and packing of compatible solid products into premade pouches. It combines a rotary pouch handling system with a multihead weighing configuration and supports a customizable weighing range from 10 to 2000g. The stated packaging speed is 20-60 bags per minute, with listed weighing accuracy of ±0.5-2g. Compatible pouch formats include stand-up, zipper, four-side seal, and three-side seal bags, making the machine suitable for a variety of retail packaging projects.
3.5KWPower
400kgWeight
SUS304 Stainless SteelMaterial
Overview
The Multihead Weigher Pouch Packing Machine is built around accurate portion control and flexible premade pouch handling. Its modular setup allows the main packing machine to work together with weighing and product-feeding equipment as a complete packaging line.
Applications and options
The RWP-6 is suitable for snacks, candies, nuts, dried fruits, frozen food, pet food, and other compatible products. A multihead weigher, Z-type elevator, and working platform can be combined according to the required line configuration.
Machine Advantages
Wide 10-2000g Weighing Range
The listed weighing range extends from 10 to 2000g and can be customized, allowing one machine platform to cover different retail pack sizes and product portions.
Listed Accuracy of ±0.5-2g
The multihead weighing system is specified with an accuracy range of ±0.5-2g. Actual performance depends on product size, flow characteristics, target weight, and final machine settings.
Multiple Premade Pouch Formats
Stand-up pouches, zipper pouches, four-side seal bags, and three-side seal bags are supported, giving users several packaging-format choices for different products.
Modular Packaging Line Setup
The system can be combined with a multihead weigher, Z-type elevator, and working platform, allowing the production line to be configured around product feeding, weighing, and pouch packing requirements.
Centralized PLC Operation
PLC control with a touch-screen interface allows operators to manage routine packaging parameters from one control point and simplifies adjustments when changing pouch or product specifications.
Multihead Weigher Pouch Packing Machine Video
Technical Parameters
| Machine Type | Multihead Weigher Rotary Pouch Packaging Machine |
|---|---|
| Model | RWP-6 |
| Packaging Material | Laminated Film / Paper-Plastic Composite / Aluminum Foil |
| Power | 3.5KW |
| Machine Dimensions | 1600x1250x1200mm |
| Machine Weight | 400kg |
| Product Name | Multihead Weigher Pouch Packing Machine |
| Packaging Speed | 20-60 bags/min |
| Weighing Range | 10-2000g, Customizable |
| Accuracy | ±0.5-2g |
| Pouch Type | Stand-up Pouch / Zipper Pouch / Four-side Seal Bag / Three-side Seal Bag |
| Applicable Products | Snacks / Candies / Nuts / Dried Fruits / Frozen Food / Pet Food |
| Control System | PLC with Touch Screen |
| Power Supply | 220V / 380V, 50/60Hz |
| Machine Material | SUS304 Stainless Steel |
| Optional Line Components | Multihead Weigher / Z-Type Elevator / Working Platform |
Frequently Asked Questions
What products can the Multihead Weigher Pouch Packing Machine handle?
The source lists snacks, candies, nuts, dried fruits, frozen food, and pet food. Final suitability depends on product characteristics and the selected weighing setup.
What is the weighing range?
The listed range is 10-2000g, with customization available.
What is the packaging speed?
The stated speed is 20-60 bags per minute. Actual output depends on pouch size, filling weight, and product characteristics.
What pouch styles are supported?
The listed styles are stand-up, zipper, four-side seal, and three-side seal pouches.
What materials can the pouches use?
The source lists laminated film, paper-plastic composite, and aluminum foil structures.
What information should be provided before ordering?
Please provide the product type, target weight, pouch style, pouch dimensions, pouch material, required output, and voltage. Product and pouch samples are recommended for final configuration confirmation.
