How the machine works
Roll film is guided through the forming section and shaped into a vertical pouch. The selected filling system doses the product before the machine completes sealing, cutting, and discharge.
Irregular Product Packaging Machines
Vertical Pouch Filling Machine

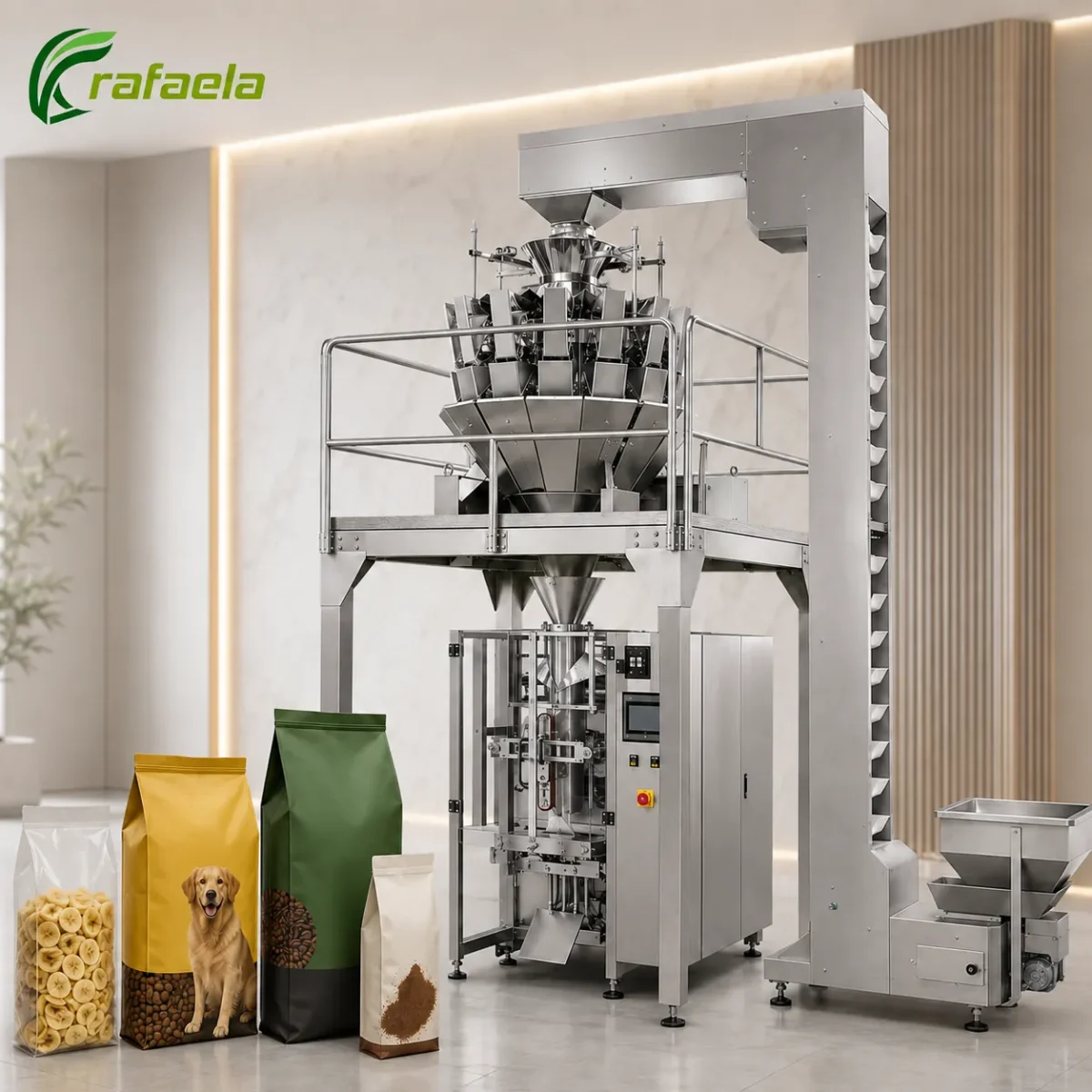

The Vertical Pouch Filling Machine, based on the VFP-320 platform, is designed for automatic forming, filling, and sealing of pouches from roll film. It can be configured for granules, powders, liquids, pastes, and solid pieces by matching the machine with the appropriate filling system. The listed net weight range is 5g-5kg, while supported bag dimensions are 50-300mm in width and 60-400mm in length. PLC touch-screen control, multiple bag styles, and several sealing options make the machine suitable for varied VFFS packaging projects.
20-90 bags/minCapacity
Heat Sealing / Ultrasonic Sealing / Impulse SealingSealing Type
210kgWeight
Stainless Steel 304 / Stainless Steel 316Material
Overview
The Vertical Pouch Filling Machine forms each package directly from roll film instead of using premade bags. Different dosing systems can be selected according to product characteristics and target weight.
Applications and options
The machine can be configured for granules, powders, liquids, pastes, and solid pieces. Optional functions include date coding, nitrogen flushing, and tear notches.
Machine Advantages
Multiple Filling System Choices

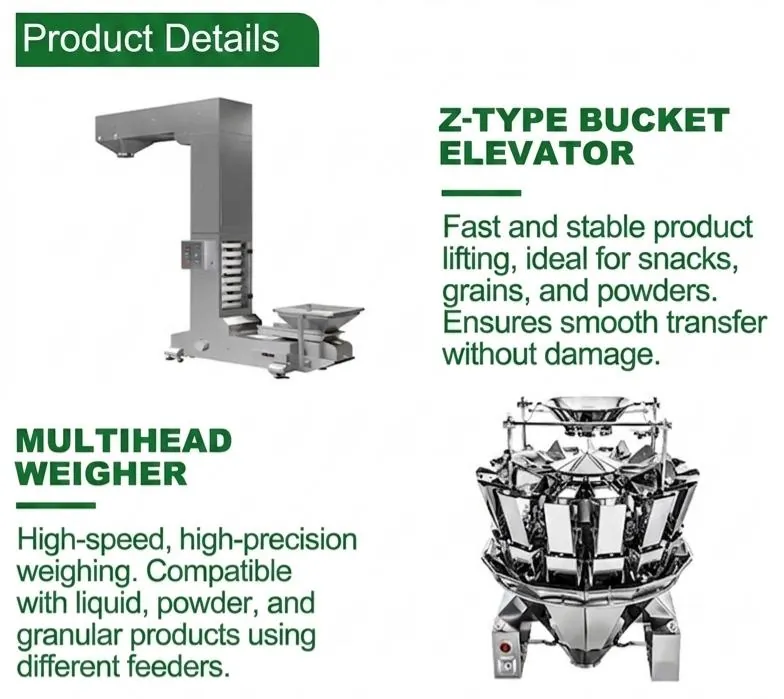

The machine can work with a multihead weigher, auger filler, pump filler, or volumetric cup filler, allowing the dosing system to match the actual product.
Wide 5g-5kg Weight Range
The listed net weight range is 5g-5kg and can be customized, giving the machine flexibility for both smaller pouches and larger-format bags.
Flexible Bag Sizes and Styles
Bag width is listed from 50 to 300mm and bag length from 60 to 400mm. Supported formats include pillow bags, gusset bags, stick packs, sachets, and quad seal bags.
Multiple Film and Sealing Options
Plastic film, laminated film, aluminum foil, and paper film are listed as packaging materials. Heat sealing, ultrasonic sealing, and impulse sealing are available according to the selected setup.
PLC-Controlled Changeover
The machine uses PLC control with a color touch-screen interface and supports multi-language operation. Listed changeover time is 10-30 minutes depending on the product and packaging setup.
Vertical Pouch Filling Machine Video
Technical Parameters
| Packing Speed | 20-90 bags/min |
|---|---|
| Bag Type | Pillow Bag / Gusset Bag / Stick Pack / Sachet / Quad Seal Bag |
| Packaging Material | Plastic Film / Laminated Film / Aluminum Foil / Paper Film |
| Sealing Method | Heat Sealing / Ultrasonic Sealing / Impulse Sealing |
| Machine Weight | 210kg |
| Product Name | Vertical Pouch Filling Machine |
| Main Model | VFP-320 |
| Bag Forming Type | Vertical Form-Fill-Seal (VFFS) |
| Suitable Products | Granules / Powder / Liquid / Paste / Solid Pieces |
| Filling System | Multihead Weigher / Auger Filler / Pump Filler / Volumetric Cup Filler |
| Net Weight Range | 5g-5kg, Customizable |
| Filling Accuracy | ±0.2%-±1%, Depending on Product and Filling System |
| Alternative Speed Range | 30-120 bags/min, Depending on Model and Product |
| Bag Size Range | Width 50-300mm / Length 60-400mm, Customizable |
| Film Roll Specification | Max Width 620mm / Max Diameter 500mm / Core 75mm |
| Control System | PLC + Touch Screen |
| Operation Interface | Color Touch Screen / Multi-language Support |
| Power Supply | 220V / 380V, 50Hz / 60Hz |
| Listed Power | 3.9KW |
| Air Supply Requirement | 0.6MPa, 0.3-0.6m³/min |
| Machine Material | Stainless Steel 304 / Stainless Steel 316 |
| Listed Machine Dimensions | 1500x960x1120mm |
| General Machine Dimension Range | L1200-1600mm x W900-1200mm x H2200-2600mm |
| Changeover Time | 10-30 minutes |
| Optional Functions | Date Coder / Nitrogen Flushing / Tear Notch |
Frequently Asked Questions
What products can the Vertical Pouch Filling Machine handle?
The source lists granules, powders, liquids, pastes, and solid pieces. Final suitability depends on the selected filling system and product characteristics.
What is the filling range?
The listed net weight range is 5g-5kg and can be customized.
What bag sizes are supported?
The listed bag width is 50-300mm and bag length is 60-400mm.
What filling systems are available?
The source lists multihead weigher, auger filler, pump filler, and volumetric cup filler configurations.
What is the packaging speed?
The primary listed production speed is 20-90 bags per minute. The source also lists 30-120 bags per minute depending on model and product, so final speed should be confirmed for the selected configuration.
What information should be provided before ordering?
Please provide the product type, target weight or volume, bag dimensions, bag style, film material, required output, and voltage. Product and film samples are recommended for final configuration.
