How the machine works
Bottles move along the conveyor and stop beneath the filling heads. The piston pumps meter the liquid and fill four bottles at the same time before they move forward.
Liquid Packaging Machines

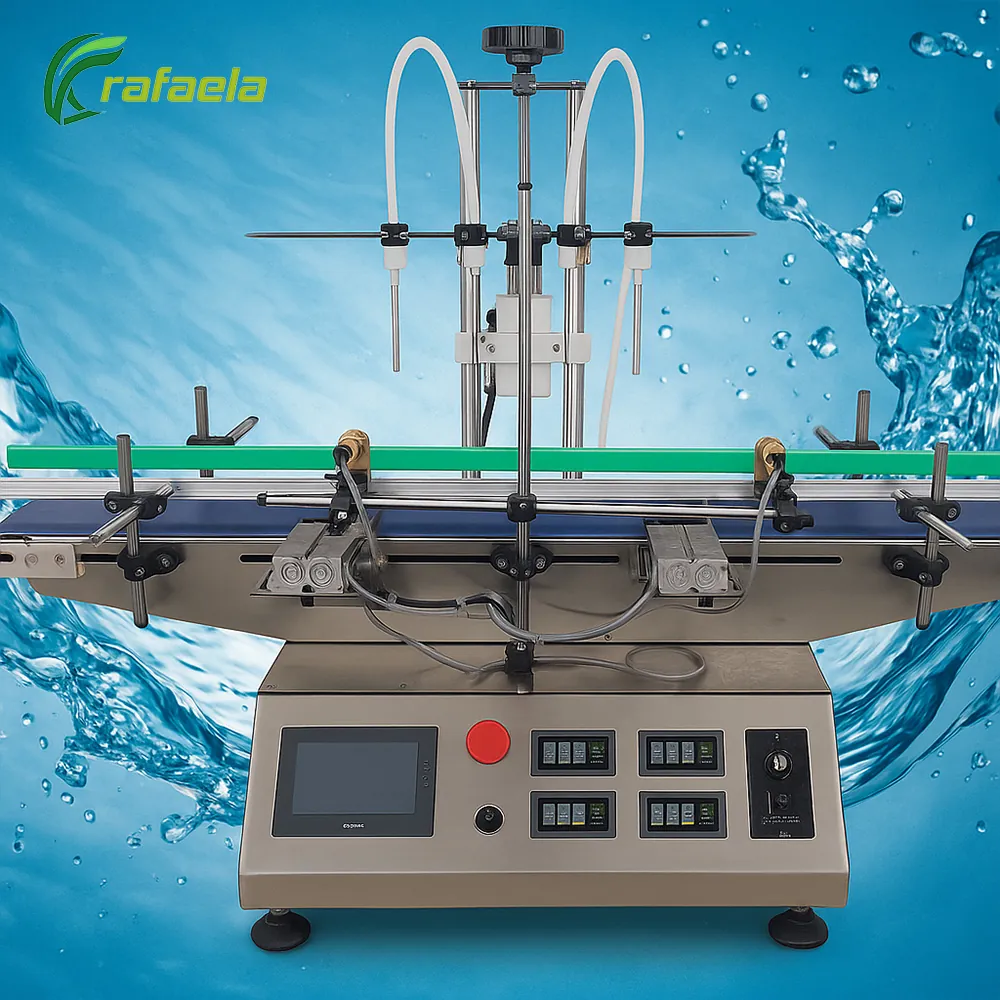

Tabletop Liquid Filling Machine
The Tabletop Liquid Filling Machine is designed for efficient bottle filling with four filling heads and an adjustable 5-1000ml filling range. Using piston pumps, the machine can reach a stated output of up to 1500 bottles per hour based on 500ml filling, with a filling precision of ±1%. It supports bottle diameters from 10 to 100 mm and a filling height of up to 300 mm, making it suitable for flexible small and medium liquid filling production.
140kgWeight
Stainless SteelMaterial
Overview
The Tabletop Liquid Filling Machine combines four-head filling with a stainless steel chain conveyor. Adjustable filling settings and nozzle height make bottle changeovers easier.
Applications and options
The Tabletop Liquid Filling Machine is suitable for compatible free-flowing and viscous liquids. Final configuration depends on liquid viscosity, filling volume, bottle size, and required production speed.
Machine Advantages
Four-Head Filling System
The machine fills four bottles simultaneously, helping improve production efficiency compared with single-head filling. This configuration supports a stated output of up to 1500 bottles per hour based on 500ml filling.
Adjustable 5-1000ml Filling Range
The filling volume can be adjusted from 5 to 1000ml, allowing the machine to handle different bottle capacities. Final performance depends on the selected volume and liquid characteristics.
±1% Filling Precision
The piston pump system provides controlled dosing with a stated filling precision of ±1%. Stable product conditions and correct setup help maintain repeatable filling results.
Adjustable Filling Height
The filling head position can be adjusted for compatible bottles with different heights. This helps simplify product changeovers when several bottle sizes are used.
Stainless Steel Chain Conveyor
The chain conveyor provides stable bottle movement through the filling area. Stainless steel construction also supports regular production, cleaning, and routine maintenance.
Tabletop Liquid Filling Machine Video
Technical Parameters
| Model | TLF-04 |
|---|---|
| Machine Dimensions | 1400x800x1300mm |
| Machine Weight | 140kg |
| Product Name | Tabletop Liquid Filling Machine |
| Filling Heads | 4 Heads |
| Filling Volume | 5-1000ml |
| Filling Speed | 1500 bottles/hour (based on 500ml) |
| Filling Precision | ±1% |
| Bottle Diameter | 10-100mm |
| Filling Height | 300mm |
| Pump Type | Piston Pump |
| Conveyor Type | Chain Conveyor |
| Material | Stainless Steel |
| Power Supply | 110V/220V, 50Hz, 500W |
Frequently Asked Questions
What liquids can the Tabletop Liquid Filling Machine fill?
The machine is suitable for compatible free-flowing and viscous liquids. Final suitability depends on viscosity, flow characteristics, and whether the liquid can be handled correctly by the piston pump.
What is the filling volume range?
The stated filling range is 5-1000ml. The correct setup depends on the target filling volume, bottle dimensions, and liquid characteristics.
What is the filling speed?
The stated capacity is up to 1500 bottles per hour based on 500ml filling. Actual output depends on filling volume, liquid viscosity, bottle size, and conveyor conditions.
What bottle sizes are supported?
The machine supports bottle diameters from 10 to 100 mm and a filling height of up to 300 mm. Bottle shape and stability should also be checked before production.
How many filling heads does the machine have?
The TLF-04 uses four filling heads, allowing four bottles to be filled at the same time and helping improve overall production efficiency.
What information should be provided before ordering?
Please provide the liquid type, viscosity, target filling volume, bottle diameter, bottle height, required output, and voltage requirement. Product and bottle samples are also helpful for confirming compatibility.
