How the machine works
Bottles move along the chain conveyor and stop beneath the filling heads. The piston pumps meter the liquid and discharge it into four bottles at the same time before the conveyor moves them forward.
Liquid Packaging Machines

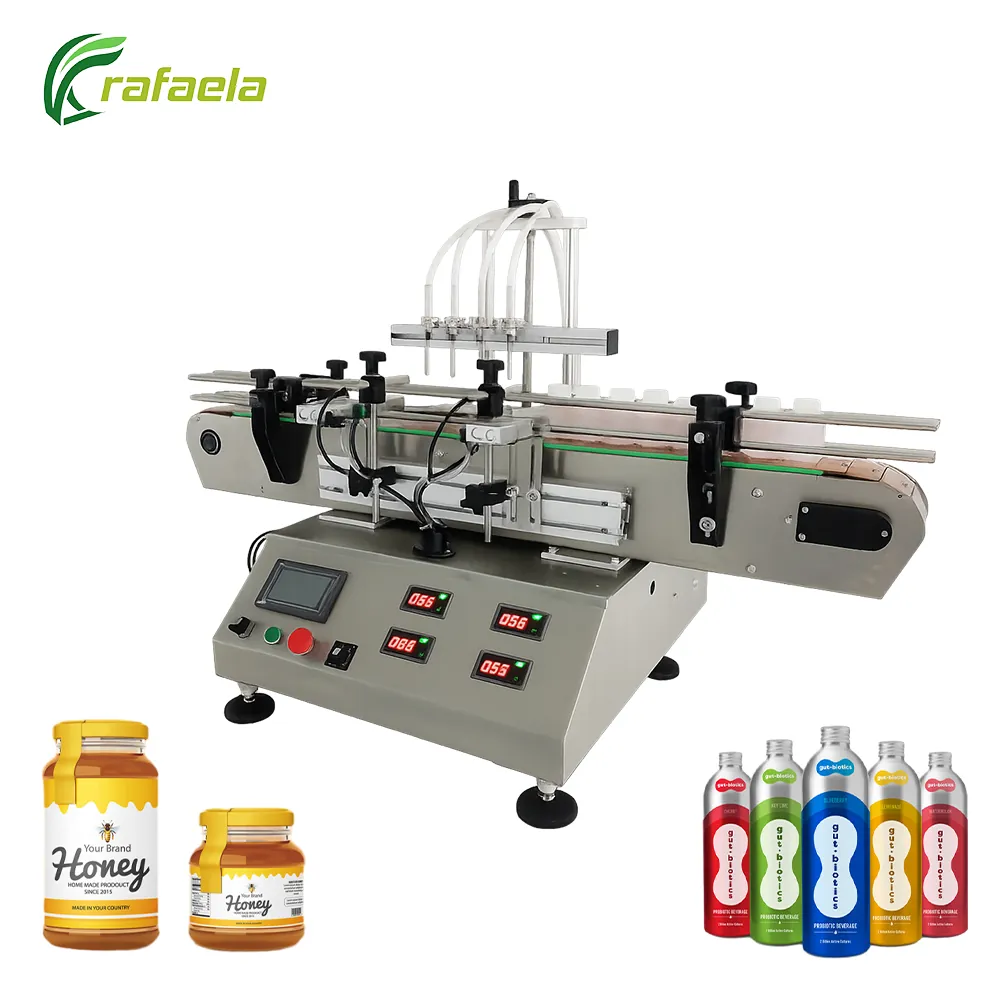

Benchtop Liquid Filling Machine
The Benchtop Liquid Filling Machine is designed for accurate bottle filling with four filling heads and a 5-1000ml filling range. Using piston pumps, the machine can reach a stated output of up to 1500 bottles per hour based on 500ml filling, with a filling precision of ±1%. It supports bottle diameters from 10 to 100 mm and a filling height of up to 300 mm, making it suitable for a variety of liquid products and bottle sizes.
140kgWeight
Stainless SteelMaterial
Overview
The Benchtop Liquid Filling Machine combines four-head filling with a stainless steel chain conveyor for steady bottle movement. Its adjustable nozzle height and filling settings help simplify bottle changeovers.
Applications and options
The Benchtop Liquid Filling Machine is suitable for compatible free-flowing and viscous liquids. Final setup depends on liquid viscosity, filling volume, bottle size, and required output.
Machine Advantages
Four-Head Simultaneous Filling
The machine fills four bottles at one time, helping improve productivity compared with single-head filling. This setup supports a stated output of up to 1500 bottles per hour based on 500ml filling.
Wide 5-1000ml Filling Range
The adjustable filling range allows the machine to handle different bottle volumes on the same filling platform. Final performance depends on liquid characteristics, target volume, and selected settings.
±1% Filling Precision
The piston pump system provides controlled liquid dosing with a stated filling precision of ±1%. Correct adjustment and stable product conditions help maintain repeatable results during production.
Adjustable Nozzle Height
The filling head position can be adjusted to suit compatible bottles with different heights. This makes product and container changeovers easier when several bottle formats are used.
Stainless Steel Chain Conveyor
The chain conveyor provides stable bottle transport through the filling area. Stainless steel construction also gives the machine a durable working surface for routine production and maintenance.
Benchtop Liquid Filling Machine Video
Technical Parameters
| Model | TLF-04 |
|---|---|
| Machine Dimensions | 1400x800x1300mm |
| Machine Weight | 140kg |
| Product Name | Benchtop Liquid Filling Machine |
| Filling Heads | 4 Heads |
| Filling Volume | 5-1000ml |
| Filling Speed | 1500 bottles/hour (based on 500ml) |
| Filling Precision | ±1% |
| Bottle Diameter | 10-100mm |
| Filling Height | 300mm |
| Pump Type | Piston Pump |
| Conveyor Type | Chain Conveyor |
| Material | Stainless Steel |
| Power Supply | 110V/220V, 50Hz, 500W |
Frequently Asked Questions
What liquids can the Benchtop Liquid Filling Machine fill?
The machine is suitable for compatible free-flowing and viscous liquids. Final suitability depends on liquid viscosity, flow characteristics, and whether the product can be handled correctly by the piston pump system.
What is the filling volume range?
The stated filling range is 5-1000ml. The correct setup depends on the target filling volume, bottle dimensions, and liquid characteristics.
What is the filling speed?
The stated capacity is up to 1500 bottles per hour based on a 500ml filling volume. Actual output can vary with bottle size, filling volume, liquid viscosity, and conveyor conditions.
What bottle sizes are supported?
The machine supports bottle diameters from 10 to 100 mm and a filling height of up to 300 mm. Bottle shape and stability should also be checked before production.
How many filling heads does the machine have?
The TLF-04 uses four filling heads, allowing four bottles to be filled at the same time for higher production efficiency.
What information should be provided before ordering?
Please provide the liquid type, viscosity, target filling volume, bottle diameter, bottle height, required output, and voltage requirement. Product and bottle samples are also helpful for confirming compatibility.
