How the machine works
The product is placed in the wrapping position and the film is applied around the package according to the selected settings. The completed pack is then discharged for storage, display, or further handling.
Automatic / Semi-Automatic
PVC Cling Film Machine

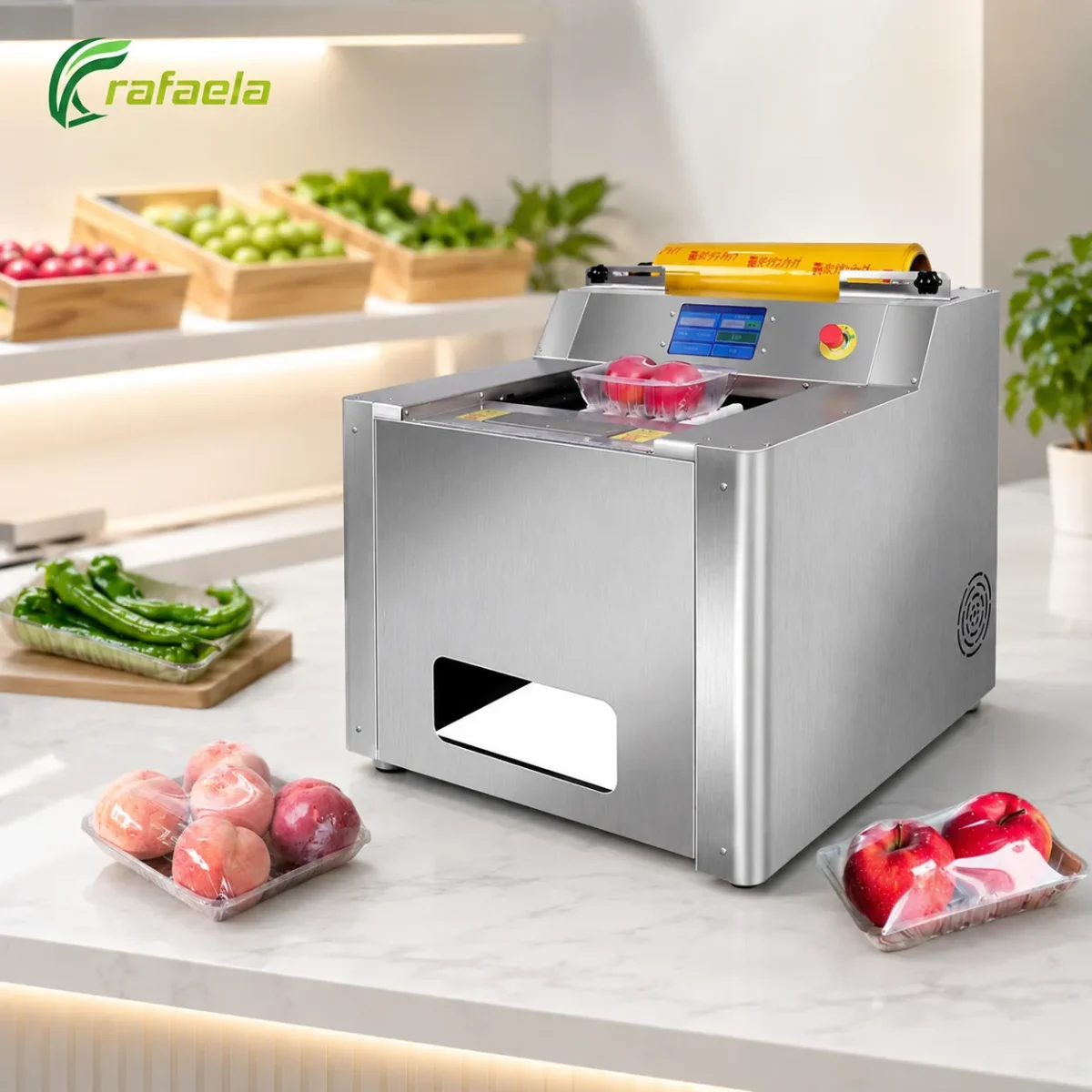

The PVC Cling Film Machine, model CFP-10, is designed for wrapping food products, fruits, vegetables, and compatible boxes with cling film or similar plastic wrapping materials. It supports products from 80 to 280mm in length, 90 to 200mm in width, and 10 to 150mm in height. The stated production capacity is 11 packs per minute. With a 450W power rating, 62kg machine weight, and adjustable PLC, touch-screen, or button-based control, the CFP-10 is suitable for routine commercial wrapping where compact equipment and repeatable film application are required.
11 packs/minCapacity
450WPower
62kgWeight
Overview
The PVC Cling Film Machine is intended for regular wrapping tasks involving products of different shapes and heights. Its adjustable dimensional range helps users handle several compatible package sizes on one machine platform.
Applications and options
The CFP-10 is suitable for compatible food products, fruits, vegetables, and boxes. The source lists cling film, stretch film, and plastic wrap; PVC film suitability should be confirmed using the actual film specification.
Machine Advantages
Adjustable Product Height Range
The machine supports product heights from 10 to 150mm, allowing it to accommodate flat trays, compact boxes, and taller compatible packages within the listed range.
Compact 62kg Machine Body
With a listed machine weight of 62kg, the CFP-10 provides a relatively compact wrapping solution for commercial areas where equipment size and placement flexibility matter.
450W Power Rating
The machine uses a listed 450W power rating with an AC 220V / 50Hz supply, making it suitable for routine daily packaging without requiring a high-power industrial installation.
11 Packs/Min Wrapping Capacity
The stated production capacity is 11 packs per minute, helping standardize repeated wrapping work for food preparation, produce handling, and retail packaging applications.
Multiple Operating Controls
PLC, touch-screen, and button control are listed, providing different ways to manage routine machine settings and adjust the wrapping process for different product sizes.
PVC Cling Film Machine Video
Technical Parameters
| Machine Type | Automatic / Semi-Automatic |
|---|---|
| Model | CFP-10 |
| Production Capacity | 11 packs/min |
| Packaging Material | Cling Film / Stretch Film / Plastic Wrap |
| Power | 450W |
| Machine Weight | 62kg |
| Product Name | PVC Cling Film Machine |
| Max Packaging Length | 80-280mm |
| Max Packaging Width | 90-200mm |
| Max Product Height | 10-150mm |
| Power Supply | AC 220V / 50Hz |
| Control System | PLC / Touch Screen / Button Control |
| Applicable Products | Food / Fruits / Vegetables / Boxes |
| Feature | Fast / Stable / Easy Operation / Adjustable |
| Note | PVC Film Compatibility Should Be Confirmed with the Actual Film Specification |
Frequently Asked Questions
What products can the PVC Cling Film Machine wrap?
The source lists food, fruits, vegetables, and boxes. Final suitability depends on product size, shape, and the selected film.
Is PVC cling film confirmed in the source specification?
The source specifically lists cling film, stretch film, and plastic wrap. PVC film compatibility should be confirmed using the actual film specification or sample.
What product dimensions are supported?
The listed length range is 80-280mm, width range is 90-200mm, and height range is 10-150mm.
What is the stated production capacity?
The listed capacity is 11 packs per minute.
What control methods are available?
The source lists PLC, touch-screen, and button control.
What information should be provided before ordering?
Please provide the product length, width, height, product type, film material, film width and thickness, required output, and voltage. Product photos and film samples are recommended for final compatibility confirmation.
