How the machine works
The product is positioned in the wrapping area and film is applied according to the selected operating settings. After the packing cycle is completed, the wrapped product is discharged for storage, display, or further handling.
Solid Packaging Machines
Cling Film Packing Machine

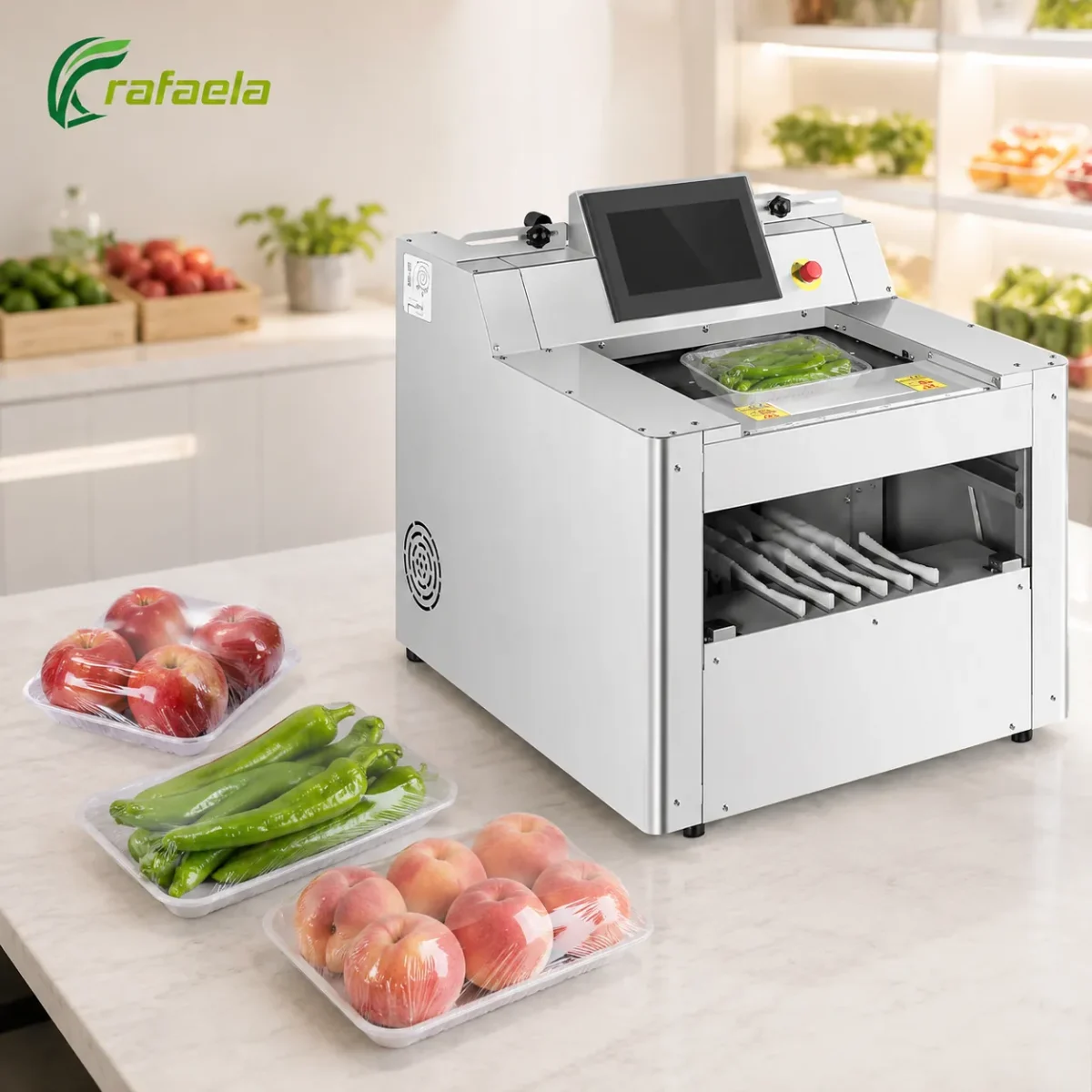

The Cling Film Packing Machine, model CFP-20, is designed for commercial food wrapping where different product sizes need to be packed with consistent film coverage. It supports a stated speed of 14 packs per minute and handles package weights from 100g to 3kg. The listed working range covers products from 80 to 280mm in length, 90 to 200mm in width, and 10 to 150mm in height. With a stainless steel body, 10.2-inch TFT touch screen, and support for 250-450mm film widths, the machine is suitable for routine packing in supermarkets, food preparation areas, and other commercial environments.
14 packs/minCapacity
900WPower
Stainless SteelMaterial
Overview
The Cling Film Packing Machine is built for repeated food wrapping tasks that involve different package dimensions. Its defined film-roll and product-size ranges help users standardize daily packing work.
Applications and options
The CFP-20 is suitable for compatible food packages within the listed size and weight ranges. The selling-point source also lists PVC and PE film compatibility and tray or tray-free applications, which should be confirmed using the actual product and film.
Machine Advantages
Broad Packing Size Coverage
The machine supports lengths of 80-280mm, widths of 90-200mm, and heights of 10-150mm, allowing one unit to handle different compatible food package sizes.
250-450mm Film Width Range
The listed film width range is 250-450mm, while the maximum film roll diameter is 160mm. These specifications help match the film setup to different package dimensions.
Compact 118kg Machine Structure
The CFP-20 has a listed net weight of 118kg and dimensions of 840x888x1415mm, making it suitable for commercial spaces where equipment footprint matters.
Suitable for Humid Working Environments
The listed working humidity range is 10-90% RH. Combined with stainless steel construction, this supports regular operation in a variety of food-packaging environments.
Consistent Daily Packing Output
With a stated speed of 14 packs per minute, the machine supports repeatable daily packing and helps reduce variation compared with fully manual wrapping.
Cling Film Packing Machine Video
Technical Parameters
| Model | CFP-20 |
|---|---|
| Packing Speed | 14 packs/min |
| Power Consumption | 900W |
| Machine Dimensions | 840x888x1415mm |
| Product Name | Cling Film Packing Machine |
| Packing Length | 80-280mm |
| Packing Width | 90-200mm |
| Packing Height | 10-150mm |
| Packing Weight | 100g-3kg |
| Film Width | 250-450mm |
| Max Film Roll Diameter | 160mm |
| Display Screen | 10.2-inch TFT Color Touch Screen, 16:9 |
| Screen Resolution | 1024x600 |
| Power Supply | 220V / 50Hz |
| Working Humidity | 10-90% RH |
| Machine Material | Stainless Steel |
| Machine Net Weight | 118kg |
Frequently Asked Questions
What is the packing speed of the Cling Film Packing Machine?
The stated packing speed is 14 packs per minute.
What package weight range is supported?
The listed packing weight range is 100g-3kg.
What product dimensions can be packed?
The machine supports lengths of 80-280mm, widths of 90-200mm, and heights of 10-150mm.
What film roll size can be used?
The listed film width is 250-450mm and the maximum film roll diameter is 160mm.
What working humidity is supported?
The listed working humidity range is 10-90% RH.
What information should be provided before ordering?
Please provide the product length, width, height, package weight, film material, film width, film thickness, and required output. Product photos and film samples are recommended for final compatibility confirmation.
