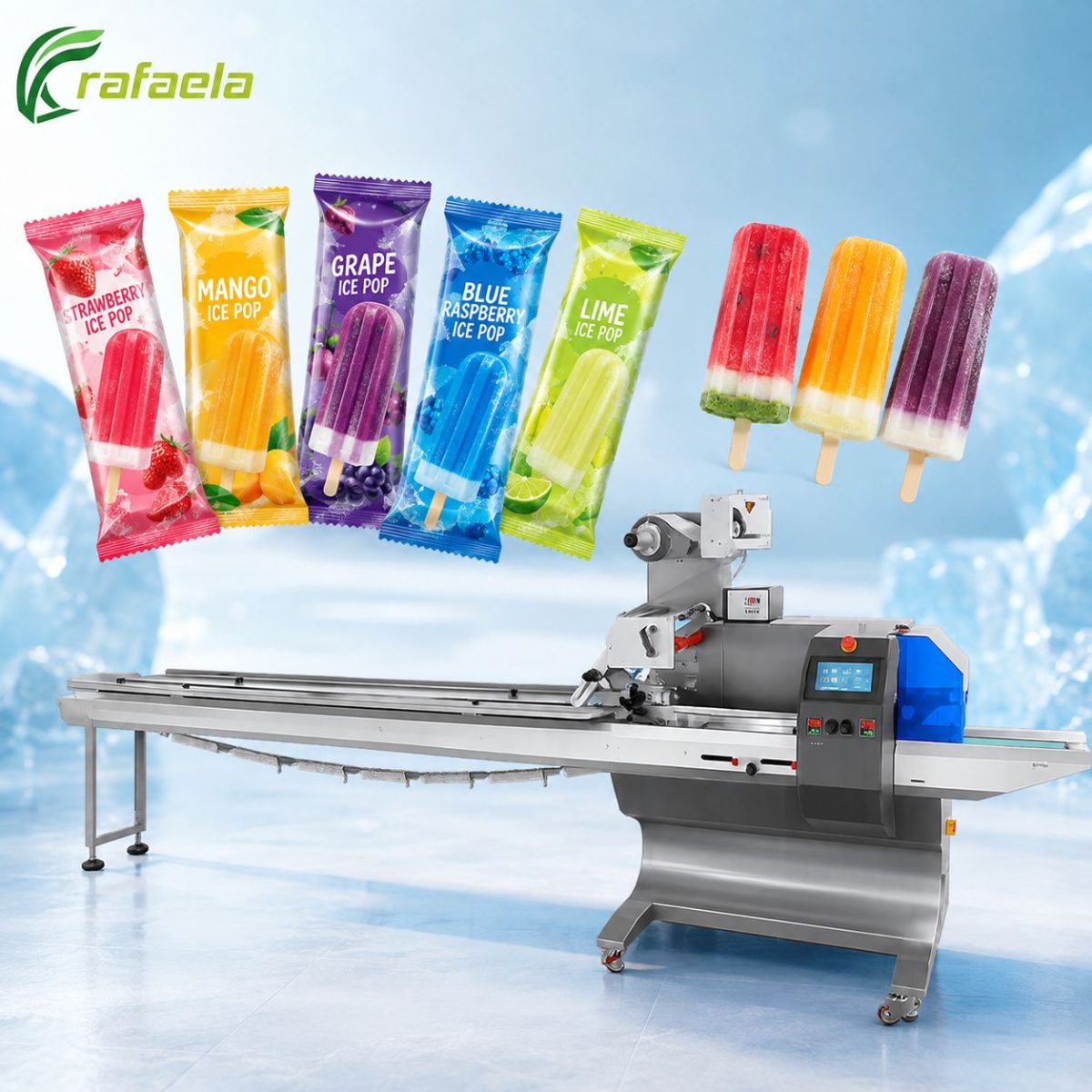

Automatic Horizontal Form-Fill-Seal Packaging Machine
The Popsicle Packing Machine is designed to wrap individual frozen popsicles in neat, sealed pillow packs for retail sale and distribution. Products move through the horizontal infeed while the machine forms film around each popsicle, creates a centered back seal, and closes both ends in one continuous process. It supports bag lengths of 65–330 mm and widths of 30–160 mm, with output up to 300 bags per minute depending on popsicle size, film, feeding stability, and the selected machine setup.
The Popsicle Packing Machine brings product feeding, film forming, and heat sealing together in one system. It helps frozen-treat producers achieve a tidy pillow pack with a centered back seal while maintaining steady output and a consistent appearance from one run to the next.
Each popsicle travels through the horizontal infeed as film wraps around it. The Popsicle Packing Machine forms the center back seal, heat-seals both ends, and separates the finished pack. Operators use the PLC touchscreen to adjust settings for the popsicle and bag size.
The Popsicle Packing Machine is designed for individually wrapped ice pops, frozen juice bars, fruit bars, and similar stick-shaped frozen treats. Available configurations can be matched to product dimensions, feeding conditions, target output, and film specifications. Product and film samples are recommended before the setup is confirmed.
With a rated speed of up to 300 bags per minute, the machine can support high-volume popsicle production lines. Actual output depends on product size, film characteristics, feeding consistency, and the selected sealing settings.
Bag length can be adjusted from 65 to 330 mm and bag width from 30 to 160 mm. This range makes it possible to pack different popsicle lengths and pack formats without changing the basic packaging method.
The heat-sealing system forms a centered back seal and closes both ends of each pack. Correct temperature, film tension, and product spacing help deliver a clean appearance and reliable seals throughout the production run.
Operators can adjust key settings through the PLC touchscreen when changing popsicle sizes, bag dimensions, or approved films. This makes routine setup more manageable and helps reduce unnecessary trial and error between production runs.

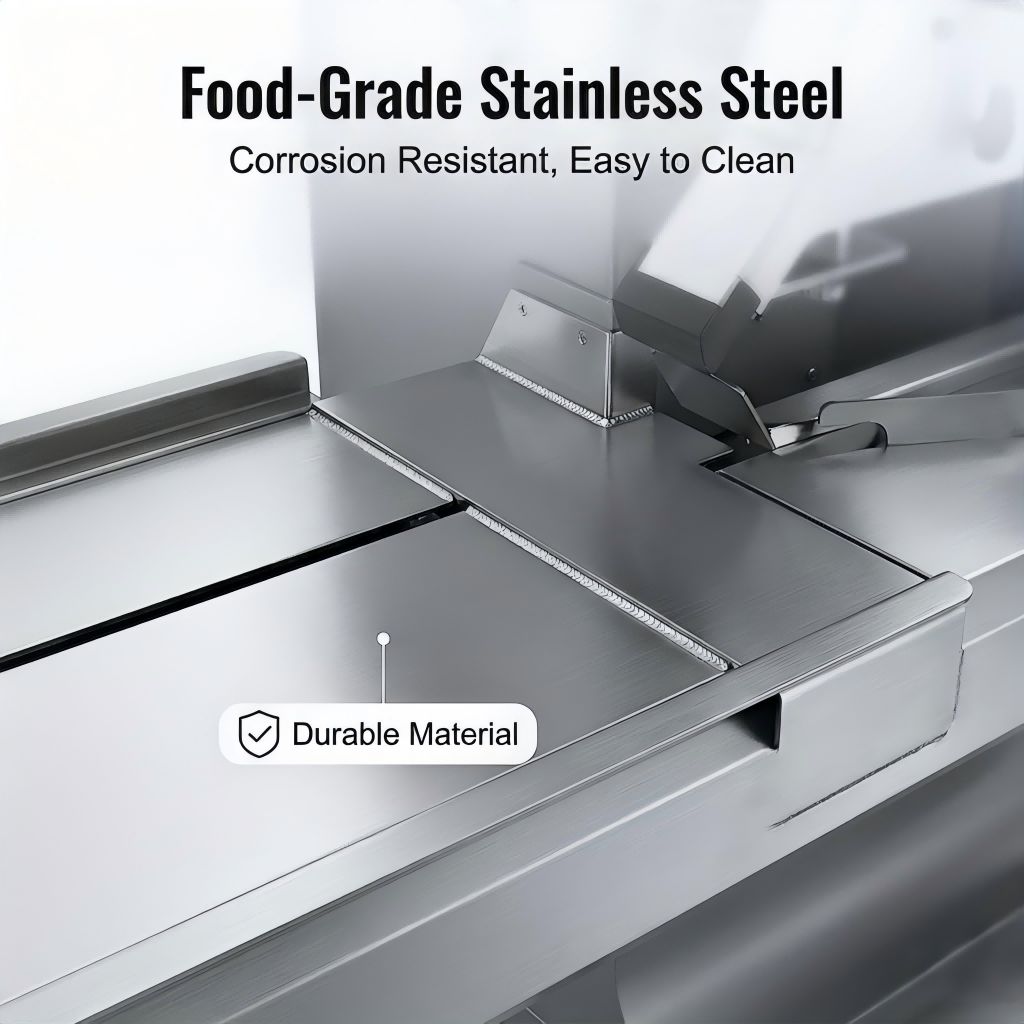

Stainless steel construction provides a durable working surface and makes routine wiping and maintenance more convenient. Compatible film structures include OPP/CPP, PT/PE, KOP/CPP, and aluminum foil laminates, subject to seal testing before production.
| Machine Type | Automatic Horizontal Form-Fill-Seal Packaging Machine |
|---|---|
| Model | DZB-350 |
| Bag Type | Pillow Bag |
| Sealing Method | Heat Sealing |
| Product Name | Popsicle Packing Machine |
| Main Function | Popsicle Feeding, Pillow Bag Forming, and Heat Sealing |
| Applicable Products | Individually wrapped popsicles, ice pops, frozen juice bars, fruit bars, and similar stick-shaped frozen treats suitable for horizontal flow wrapping |
| Bag Length | 65–330 mm |
| Bag Width | 30–160 mm |
| Seal Position | Back Seal (Center Seal) |
| Packing Film | OPP/CPP, PT/PE, KOP/CPP, and Aluminum Foil Laminate |
| Machine Material | Stainless Steel |
| Control System | PLC with Touchscreen |
| Packaging Speed | Up to 300 bags/min, depending on the product, film, feeding conditions, and machine setup |
The machine is designed mainly for individual popsicles, ice pops, frozen juice bars, fruit bars, and similar frozen treats that can move steadily through a horizontal infeed. Product dimensions, shape, surface condition, and feeding stability should be checked before the final configuration is selected.
The stated bag length range is 65–330 mm, and the bag width range is 30–160 mm. Final suitability depends on the popsicle dimensions, required sealing allowance, and film behavior. Product and bag samples should therefore be tested before the machine setup is confirmed.
The listed materials include OPP/CPP, PT/PE, KOP/CPP, and aluminum foil laminate. Different films require different temperatures, tension, and sealing times, so the exact film structure and thickness should be supplied for compatibility testing before production.
Yes, as long as the products remain within the machine's bag-size, feeding, and sealing range. Operators can adjust the relevant settings when changing popsicle or bag dimensions. Products with very different shapes or feeding conditions may require another infeed arrangement or configuration.
The PLC touchscreen allows operators to set and monitor the main packaging parameters from one interface. Basic training is still recommended for film loading, temperature adjustment, product spacing, cleaning, and routine checks before independent operation.
Please provide popsicle photos, dimensions, weight, target output, required bag size, and the complete film specification. Product and film samples are also helpful. These details allow the feeding and sealing arrangement to be checked before the final machine configuration is confirmed.
