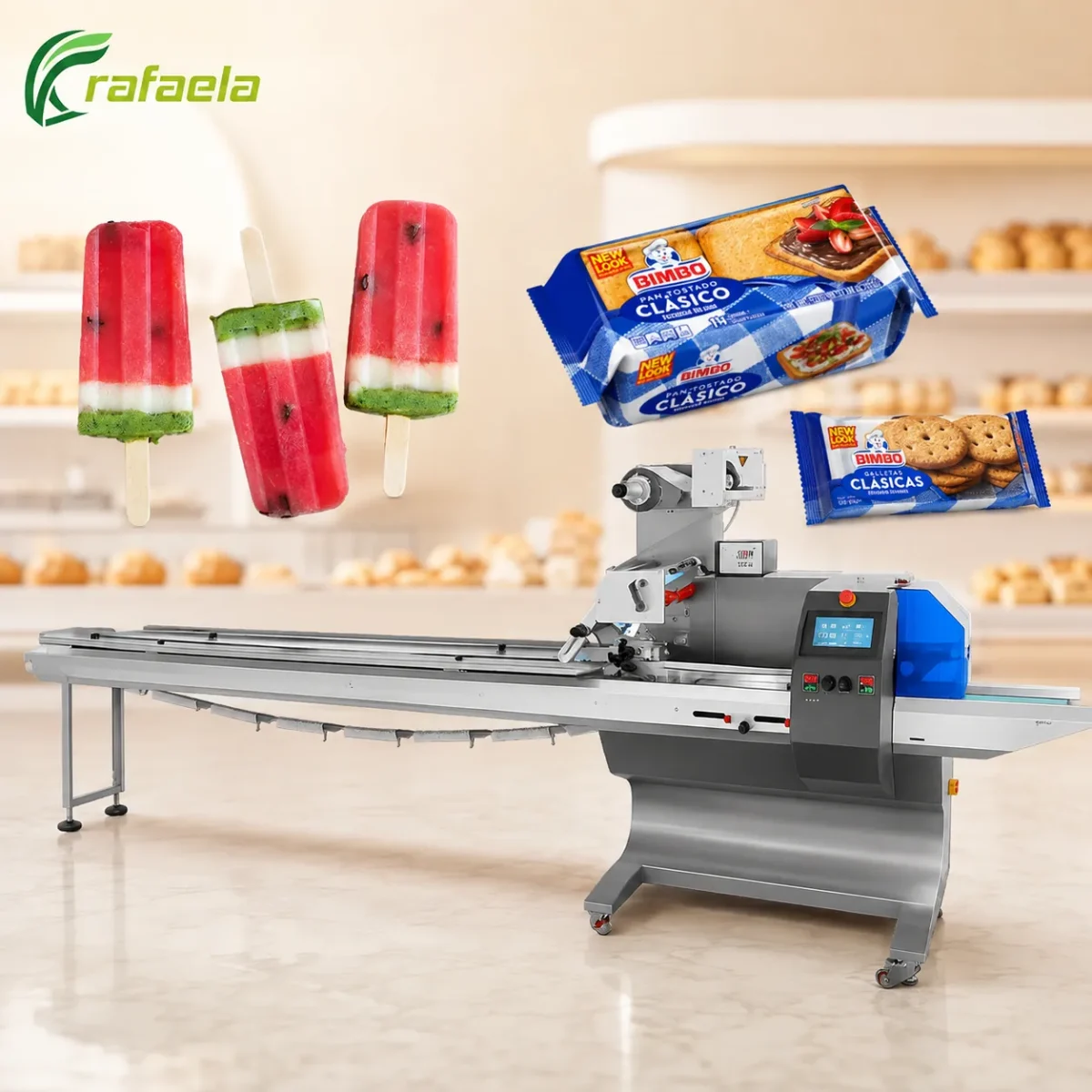

Automatic Horizontal Form-Fill-Seal Packaging Machine
The Pillow Wrapping Machine packages individual solid products in neat, sealed pillow packs at speeds of up to 300 bags per minute, depending on the item, film, and machine setup. It carries each product through a horizontal infeed, forms film around it, creates a centered back seal, and closes both ends in one continuous cycle. Adjustable bag dimensions cover 65–330 mm in length and 30–160 mm in width, making the machine suitable for reliable routine production and regular product changeovers.
The Pillow Wrapping Machine combines horizontal feeding, film forming, and heat sealing in one continuous system. It produces a tidy pillow pack with a centered back seal, helping manufacturers maintain steady output and a consistent finished appearance across different products and everyday production runs.
Film passes through the forming section, wrapping each product securely. The Pillow Wrapping Machine creates the center back seal, heat-seals both ends, and separates each finished pack. Operators adjust the settings from the touchscreen to match each product and bag size during production.
The Pillow Wrapping Machine suits bread, biscuits, cake slices, snack bars, chocolate, soap bars, wet wipes, and other solid items that feed smoothly in a horizontal line. Available configurations can be matched to product dimensions, feeding conditions, required output, bag size, and approved film specifications before production.
With a rated speed of up to 300 bags per minute, the machine can support busy production lines. Actual output depends on product size, film characteristics, feeding consistency, and the selected sealing settings.
Bag length can be adjusted from 65 to 330 mm and bag width from 30 to 160 mm, allowing one machine to handle several product sizes without changing the basic packaging method.
The heat-sealing system forms a centered back seal and closes both ends for a tidy pillow pack. Correct temperature, film tension, and product spacing help maintain a consistent finish throughout each production run.
Operators can set key parameters through the PLC touchscreen when switching between approved products and bag sizes. This reduces trial and error during setup and makes routine production adjustments easier to manage.
Stainless steel construction gives the machine a clean, durable working surface and makes routine wiping and maintenance more convenient. Compatible film structures include OPP/CPP, PT/PE, KOP/CPP, and aluminum foil laminates.
| Machine Type | Automatic Horizontal Form-Fill-Seal Packaging Machine |
|---|---|
| Model | DZB-350 |
| Bag Type | Pillow Bag |
| Sealing Method | Heat Sealing |
| Product Name | Pillow Wrapping Machine |
| Main Function | Product Feeding, Pillow Bag Forming, and Heat Sealing |
| Applicable Products | Bread, biscuits, cake slices, snack bars, chocolate, soap bars, wet wipes, and other solid items suitable for stable horizontal feeding |
| Bag Length | 65–330 mm |
| Bag Width | 30–160 mm |
| Seal Position | Back Seal (Center Seal) |
| Packing Film | OPP/CPP, PT/PE, KOP/CPP, and Aluminum Foil Laminate |
| Machine Material | Stainless Steel |
| Control System | PLC with Touchscreen |
| Packaging Speed | Up to 300 bags/min, depending on the product, film, feeding conditions, and machine setup |
The machine is intended for individual solid products that can travel steadily through a horizontal infeed. Typical uses include bread, biscuits, cake slices, snack bars, chocolate, soap bars, wet wipes, and small household items. A sample test is recommended for products with irregular shapes or unstable feeding conditions.
The stated bag length range is 65–330 mm, while the bag width range is 30–160 mm. Final suitability also depends on product dimensions, the required sealing allowance, and film behavior, so product and bag samples should be checked before the machine configuration is confirmed.
The listed materials include OPP/CPP, PT/PE, KOP/CPP, and aluminum foil laminate. Different films require different temperatures, tension, and sealing times, so the exact film structure and thickness should be supplied for compatibility testing before production.
Yes, provided the products remain within the machine's size, feeding, and sealing range. Operators can adjust the relevant settings when changing products or bag sizes. Items with very different shapes or feeding conditions may require an alternative infeed arrangement or machine configuration.
The PLC touchscreen allows operators to set and monitor the main packaging parameters from one interface. Basic training is still recommended for film loading, temperature adjustment, product spacing, cleaning, and routine checks before independent operation.
Please provide product photos, dimensions, weight, target output, required bag size, and the complete film specification. Product and film samples are also helpful. These details allow the feeding and sealing arrangement to be checked before the final machine configuration is confirmed.
