How the machine works
Packaging film is formed into the selected bag style while the product is measured and filled according to the machine setup. The bag is then heat sealed and discharged as a finished package.
Granule Packaging Machines

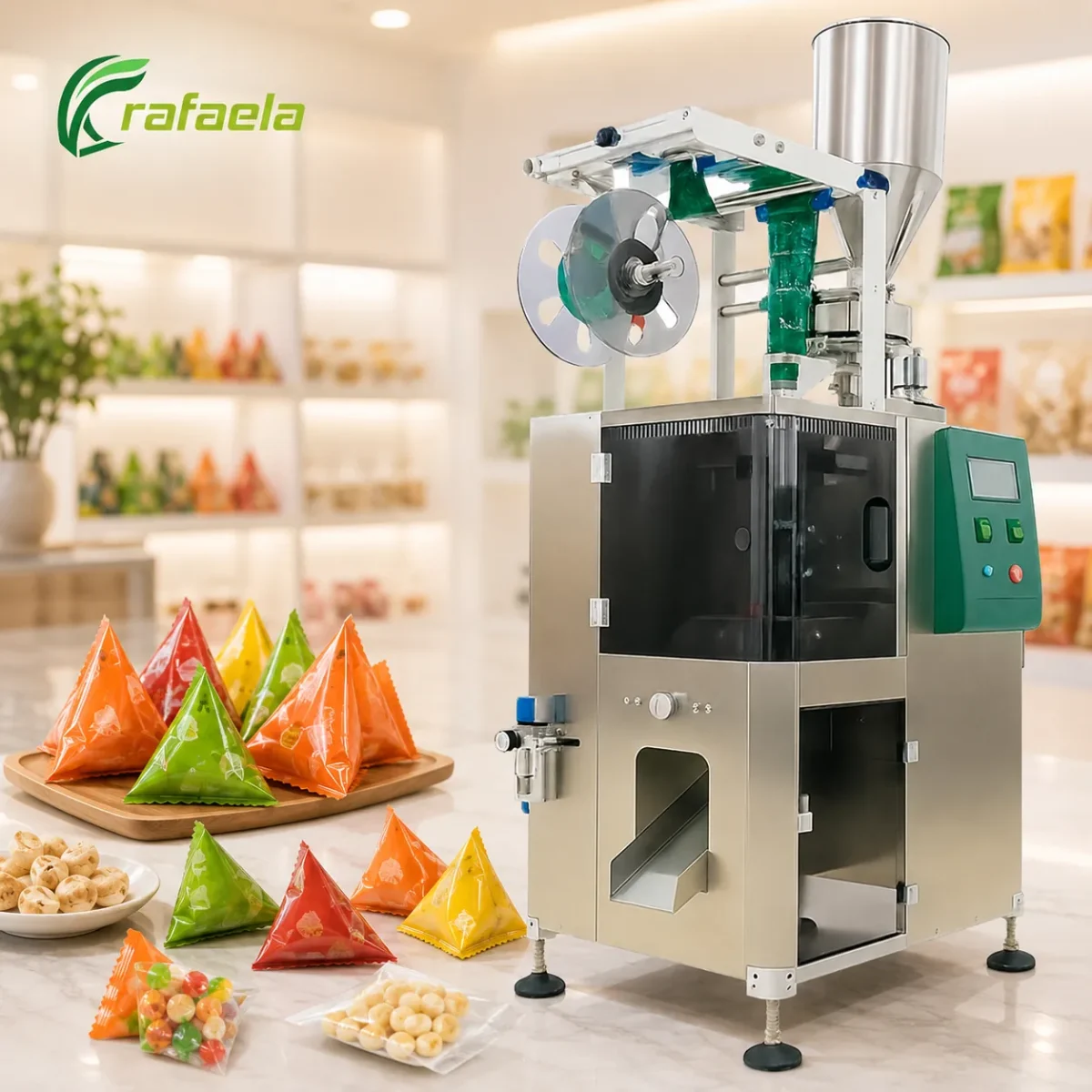

Multipurpose Packaging Machine
The Multipurpose Packaging Machine, model GH-280, is designed for small-dose automatic packaging where one compact platform needs to support different product and bag requirements. It provides a stated packaging speed of 30-70 bags per minute and a filling range of 1-100g. Available configurations include granule, powder, and liquid sauce applications, while supported bag styles include triangle seal, 3-side seal, and back seal. With PLC and touch-screen control, heat sealing, and multiple optional functions, the machine offers a flexible solution for varied packaging projects.
1.4KWPower
Heat SealingSealing Type
300kgWeight
Overview
The Multipurpose Packaging Machine is built around flexibility rather than a single fixed packaging format. Users can select the suitable product configuration, bag style, film structure, and optional functions for their production needs.
Applications and options
The Multipurpose Packaging Machine is available for granule, powder, and liquid sauce configurations. Optional functions include date printing, air filling, and an easy-tear notch, while final setup depends on the product and bag specification.
Machine Advantages
Multiple Product Configurations
The GH-280 is offered in granule, powder, and liquid sauce versions, allowing the same machine platform to be adapted for different packaging projects without changing the core equipment concept.
Three Bag Style Choices
Triangle seal, 3-side seal, and back seal formats are listed, giving users more freedom to select a package appearance that matches the product and market positioning.
Compact 1-100g Packaging
The stated filling range is 1-100g, making the machine suitable for small-dose packaging. Its 810x630x1550mm footprint also helps reduce floor-space requirements.
PLC Touch-Screen Control
The PLC and touch-screen interface centralizes routine operation and parameter adjustment, helping operators manage bag settings and production conditions more conveniently.
Expandable Optional Functions
Date printing, air filling, and easy-tear notch functions are listed as options, allowing the final machine configuration to be tailored to different packaging requirements.
Multipurpose Packaging Machine Video
Technical Parameters
| Model | GH-280 |
|---|---|
| Bag Type | Triangle Seal / 3-Side Seal / Back Seal |
| Sealing Method | Heat Sealing |
| Power | 1.4KW |
| Machine Dimensions | 810x630x1550mm |
| Machine Weight | 300kg |
| Product Name | Multipurpose Packaging Machine |
| Available Configurations | Granule / Powder / Liquid Sauce |
| Packaging Speed | 30-70 bags/min |
| Filling Weight | 1-100g |
| Measurement Method | Volumetric Cup Measurement |
| Film Type | PP / PE / PS / EVA / PET / PVDC+PVC / OPP+CPP Composite Film |
| Bag Size | Length 30-170mm / Width 30-140mm |
| Control System | PLC + Touch Screen |
| Power Supply | AC220V / 50Hz |
| Optional Functions | Date Printer / Air Filling / Easy Tear Notch |
Frequently Asked Questions
What products can the Multipurpose Packaging Machine pack?
The GH-280 is available in granule, powder, and liquid sauce configurations. Final suitability should be confirmed according to the actual product characteristics.
What bag styles are available?
The listed bag formats are triangle seal, 3-side seal, and back seal.
What is the filling range?
The stated filling weight range is 1-100g.
What bag sizes can the machine produce?
The listed bag length is 30-170mm and bag width is 30-140mm.
What packaging films are supported?
The source lists PP, PE, PS, EVA, PET, PVDC+PVC, and OPP+CPP composite films. Final film compatibility should be confirmed using the actual packaging material.
What information should be provided before ordering?
Please provide the product type, target filling weight, bag style, bag dimensions, film material, required output, and selected optional functions. Product and film samples are also useful for configuration confirmation.
