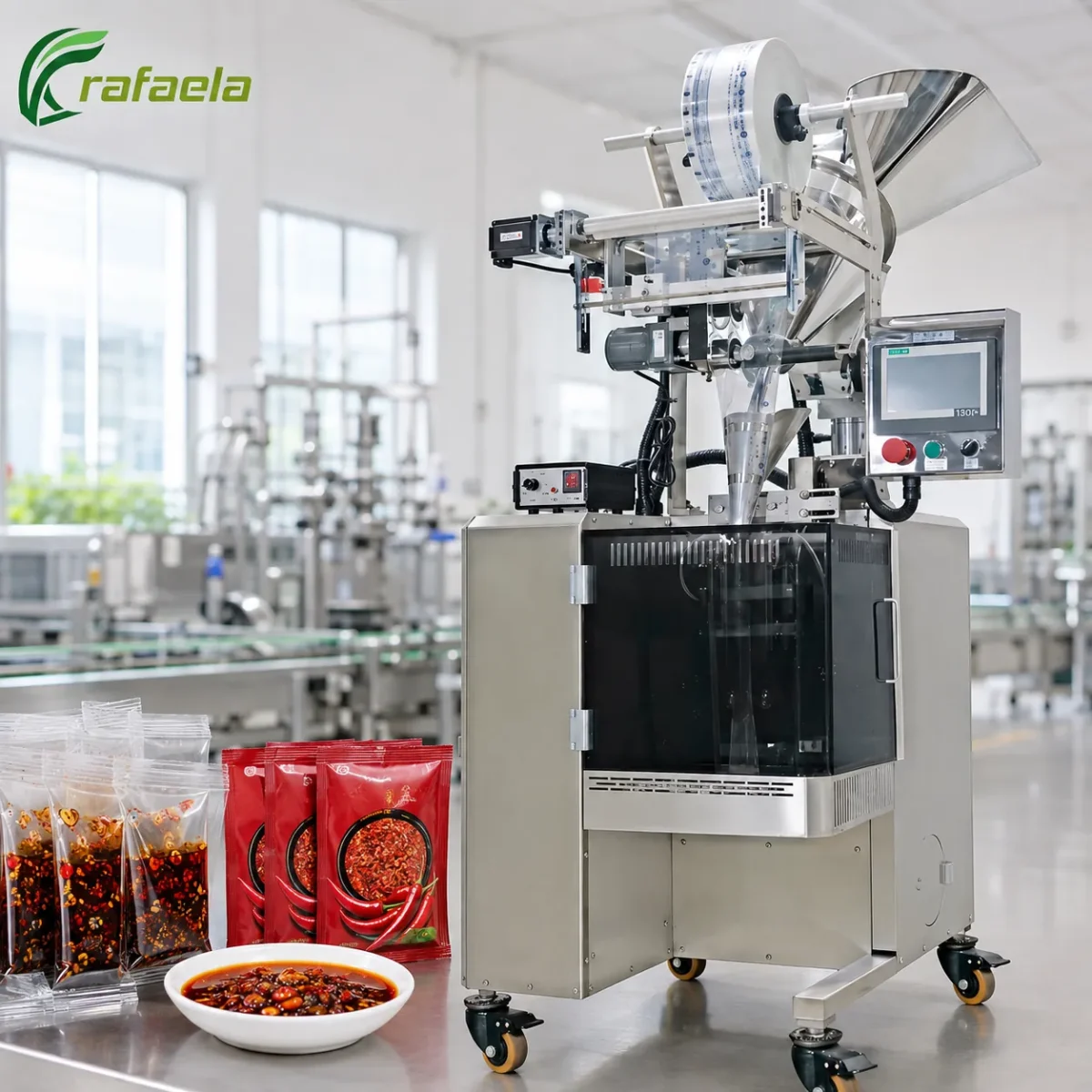

Vertical Sachet Packing Machine

Multifunctional Vertical Packaging Machine

The Multifunctional Vertical Packaging Machine is designed for automatic packing of powders, granules, liquids, and pastes into small sachets from 1g to 100g. The stated packing speed is 30-70 bags per minute per lane. The machine combines bag forming, measuring, filling, sealing, and optional date coding in one vertical system, making it suitable for manufacturers that need flexible small-pack production with a compact footprint.

30-70 packs/minCapacity

1-100gFilling Range

1.4KWPower

220V / 380V, 50-60HzVoltage

Get a Quote

Overview

The Multifunctional Vertical Packaging Machine provides a flexible solution for packing different materials with one vertical packaging platform. By matching the machine with the appropriate measuring or filling system, it can handle powder, granule, liquid, and paste products while using common sachet and sealed-bag formats. PLC touchscreen control allows operators to adjust key production settings, helping simplify changeovers and maintain stable performance during regular production.

How the machine works

Packaging film is fed into the forming section and shaped into a bag around the vertical forming tube. The selected measuring system prepares the required quantity of product and feeds it into the formed package. The machine then completes sealing and cutting to produce an individual finished sachet. Depending on the model and material, volumetric cup or weight measurement can be used. The PLC touchscreen allows operators to adjust bag length, sealing settings, and other main production parameters.

Applications and options

The Multifunctional Vertical Packaging Machine can be configured for coffee, spice powder, sugar, flour, seeds, candy, sauce, juice, and other compatible powder, granule, liquid, or paste products. Supported bag styles include sachets, 3-side seal, back seal, and 4-side seal formats. Compatible films include PE, BOPP, PET, OPP, and composite laminates. Final machine configuration should be selected according to the material type, filling weight, required bag style, film specification, and target output.

Machine Advantages

Handles Multiple Material Types

The machine can be matched with different filling systems for powder, granule, liquid, and paste products. This makes it suitable for businesses that need flexible packaging capability across several product categories without using the same measuring method for every material.

Complete Automatic Packing Process

Bag forming, measuring, filling, sealing, and cutting are completed in one continuous vertical packaging cycle. Optional date coding can also be integrated according to the selected configuration, reducing separate handling steps during production.

Compact Vertical Structure

The vertical design uses factory floor space efficiently while still supporting regular production output. This makes the machine suitable for production areas where available space is limited but automated sachet packaging is required.

PLC Touchscreen Control

The machine uses an automatic PLC control system with touchscreen operation. Operators can adjust key settings such as bag length and sealing parameters from one interface, helping make routine setup and product changeovers easier to manage.

Flexible Bag and Film Compatibility

The machine supports sachet, 3-side seal, back seal, and 4-side seal bags, together with PE, BOPP, PET, OPP, and composite laminate films. Final compatibility depends on the selected machine model, bag design, and film specification.

Multifunctional Vertical Packaging Machine Video

Technical Parameters

Machine Type	Vertical Sachet Packing Machine
Filling Range	1-100g
Bag Type	Sachet, 3-side Seal, Back Seal, 4-side Seal
Voltage	220V / 380V, 50-60Hz
Power	1.4KW
Product Name	Multifunctional Vertical Packaging Machine
Material Type	Powder, Granule, Liquid, Paste
Measuring Method	Volumetric Cup / Weight Measurement
Film Type	PE, BOPP, PET, OPP, Composite Laminates
Control System	PLC Touch Screen, Automatic
Models	QT-61XK

Multifunctional Vertical Packaging Machine - Parameter Image 7

Frequently Asked Questions

What materials can the Multifunctional Vertical Packaging Machine pack?

The machine can be configured for powder, granule, liquid, and paste products. Typical applications include coffee, spice, sugar, flour, seeds, candy, sauce, juice, and similar products. The correct filling system should be selected according to the actual material.

What is the filling range?

The stated filling range is 1-100g. Final suitability depends on the product density, flow characteristics, measuring method, bag dimensions, and selected model. Product details should be provided before the machine configuration is confirmed.

What bag styles are supported?

The listed bag styles include sachet, 3-side seal, back seal, and 4-side seal formats. The final bag type should be confirmed together with the film width, bag dimensions, and selected machine structure before production.

What packaging films can be used?

The machine supports PE, BOPP, PET, OPP, and composite laminate films. Film thickness, sealing layer, width, and roll specification should be provided in advance because different films require different sealing settings and machine adjustments.

How fast can the machine pack?

The stated production capacity is 5-100 bags per minute depending on the model, while the listed packing speed is 30-70 bags per minute per lane. Actual speed depends on the material, filling weight, bag size, measuring system, and machine configuration.

What information is needed before confirming the machine?

Please provide the product type, filling weight, target output, bag style, bag dimensions, film specification, and power supply requirement. Product photos or samples are also useful for selecting the correct measuring system and confirming the most suitable machine model.
