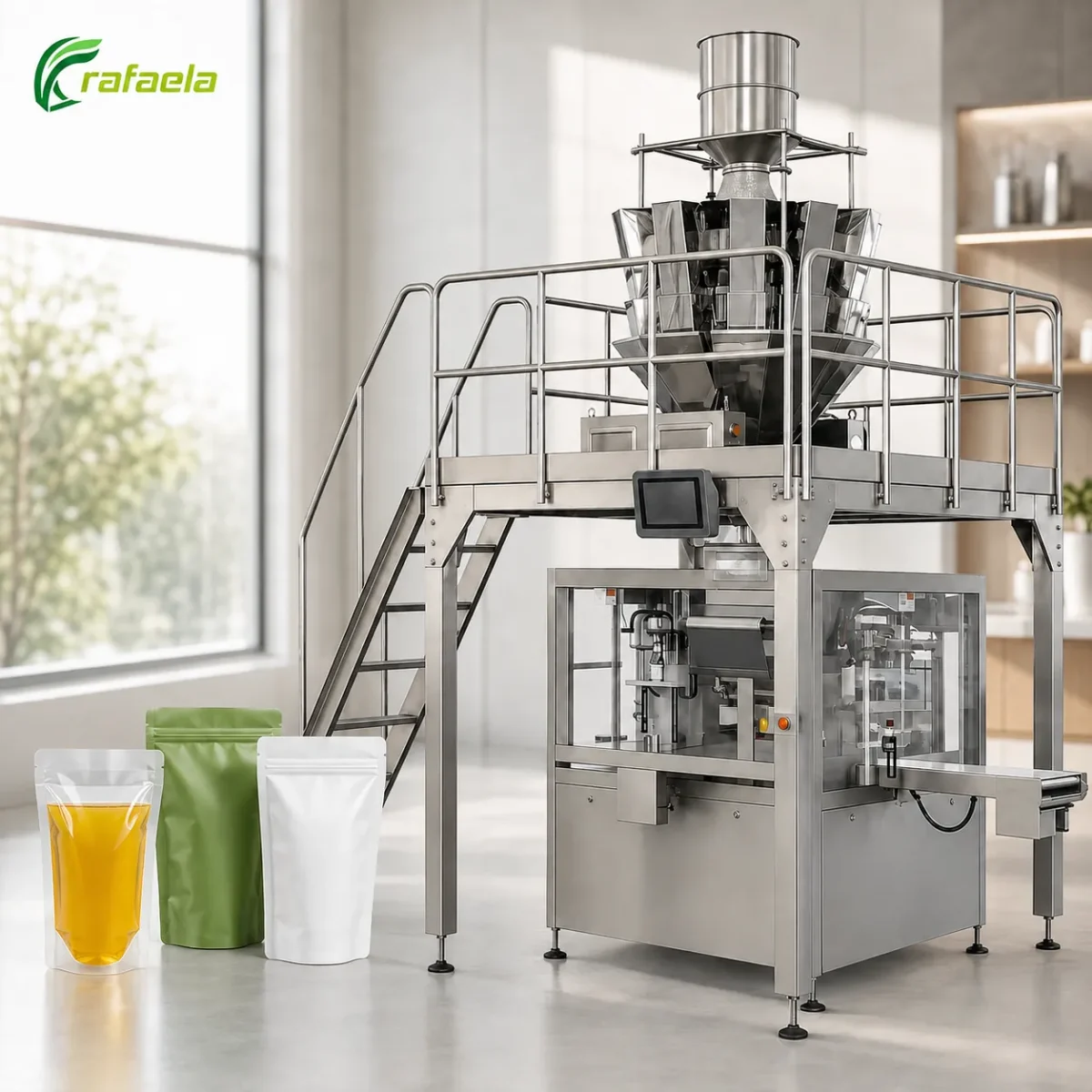

Multihead Weigher Rotary Pouch Packaging Machine
The Multi Head Weigher Packing Machine, model RWP-6, is designed for automatic weighing and packing of free-flowing products that require controlled portion sizes and repeatable output. It supports a customizable weighing range from 10 to 2000g and a listed accuracy of ±0.5-2g. Packaging speed is stated at 20-60 bags per minute. The system can be combined with a multihead weigher, Z-type elevator, and working platform, making it suitable for snacks, candies, nuts, dried fruits, frozen food, pet food, and other compatible products that require automatic feeding, weighing, filling, and pouch packing.
The Multi Head Weigher Packing Machine focuses on accurate product distribution before filling rather than simple volumetric dosing. Its modular line structure allows product feeding, weighing, and pouch packing to operate as one coordinated process.
Product is elevated to the multihead weigher, where multiple weighing heads calculate and combine portions to reach the target weight. The measured product is then discharged into a premade pouch before sealing and final discharge.
The RWP-6 is suitable for compatible granular and piece-type products such as nuts, candies, dried fruits, snacks, frozen food, and pet food. Final configuration depends on product size, target weight, feeding method, pouch format, and required output.
The multihead weighing system combines measurements from multiple heads to reach the selected target weight. This approach is designed to provide more consistent portions across repeated packaging cycles.
The listed weighing range is 10-2000g and can be customized, allowing the machine to serve both smaller retail packs and larger pouch formats.
The stated accuracy range is ±0.5-2g. Actual performance depends on product size, density, flow behavior, target weight, and final machine settings.
A Z-type elevator, multihead weigher, and working platform can be combined with the rotary pouch machine to create a complete automated line from product feeding to finished pouch discharge.
With a stated packaging speed of 20-60 bags per minute and PLC touch-screen control, the system is suitable for continuous production where repeatable weighing and packing are required.
| Machine Type | Multihead Weigher Rotary Pouch Packaging Machine |
|---|---|
| Model | RWP-6 |
| Packaging Material | Laminated Film / Paper-Plastic Composite / Aluminum Foil |
| Power | 3.5KW |
| Machine Dimensions | 1600x1250x1200mm |
| Machine Weight | 400kg |
| Product Name | Multi Head Weigher Packing Machine |
| Packaging Speed | 20-60 bags/min |
| Weighing Range | 10-2000g, Customizable |
| Accuracy | ±0.5-2g |
| Pouch Type | Stand-up Pouch / Zipper Pouch / Four-side Seal Bag / Three-side Seal Bag |
| Applicable Products | Snacks / Candies / Nuts / Dried Fruits / Frozen Food / Pet Food |
| Control System | PLC with Touch Screen |
| Power Supply | 220V / 380V, 50/60Hz |
| Machine Material | SUS304 Stainless Steel |
| Optional Line Components | Multihead Weigher / Z-Type Elevator / Working Platform |
The source lists snacks, candies, nuts, dried fruits, frozen food, and pet food. Final suitability depends on product size, flow characteristics, and the selected weighing setup.
The listed range is 10-2000g, with customization available.
The source lists an accuracy range of ±0.5-2g.
The stated speed is 20-60 bags per minute. Actual output depends on target weight, product characteristics, pouch size, and operating settings.
The listed supporting components include a multihead weigher, Z-type elevator, and working platform.
Please provide the product type, particle size, target weight, pouch style, pouch dimensions, required output, and voltage. Product and pouch samples are recommended for final configuration confirmation.
