How the machine works
Roll film is guided through the machine and formed into the selected bag style. The product is measured, filled, heat sealed, cut, and discharged according to the programmed packaging settings.
Powder Packaging Machines
Multi Function Packing Machine

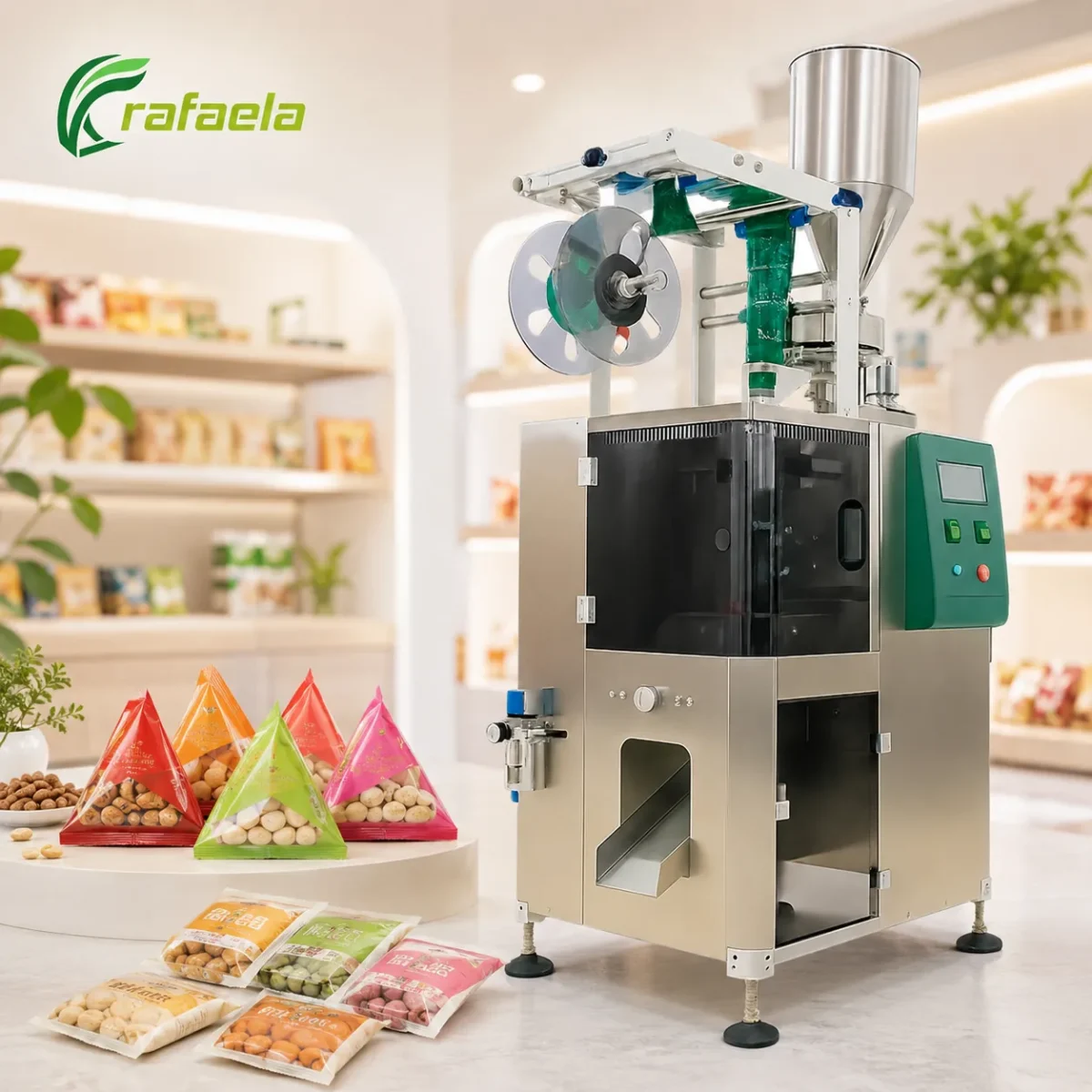

The Multi Function Packing Machine, model GH-280, is a compact automatic packaging system designed for small-dose products and multiple finished bag formats. It operates at a stated speed of 30-70 bags per minute and supports filling weights from 1 to 100g. Triangle seal, 3-side seal, and back seal bags can be configured according to the packaging project, while a wide selection of compatible film structures gives users greater flexibility when developing different product packages. PLC touch-screen control and optional functions such as date printing, air filling, and easy-tear notch further expand the machine’s production versatility.
1.4KWPower
Heat SealingSealing Type
300kgWeight
Overview
The Multi Function Packing Machine is suitable for manufacturers that need one packaging platform with several bag-format and product-configuration choices. Its compact footprint also makes it practical for production areas where space efficiency matters.
Applications and options
The GH-280 is available for granule, powder, and liquid sauce projects. Bag dimensions, film structure, optional functions, and the final filling configuration should be confirmed according to the actual product.
Machine Advantages
Fast Bag Format Adaptation
Triangle seal, 3-side seal, and back seal formats provide different presentation choices. This allows the machine to serve products that require either conventional flat packaging or more distinctive bag shapes.
Broad Film Compatibility
The listed materials include PP, PE, PS, EVA, PET, PVDC+PVC, and OPP+CPP composite film. This gives users more flexibility when selecting packaging appearance, barrier structure, and sealing material.
30-70 Bags/Min Production
The stated packaging speed of 30-70 bags per minute supports regular automatic production while keeping the machine suitable for small and medium packaging lines.
Convenient PLC Adjustment
The PLC and touch-screen control system provides a centralized interface for routine operating changes, helping users adjust production parameters when switching products or bag specifications.
Optional Packaging Features
Date printing, air filling, and easy-tear notch functions are listed as optional additions. These options allow the machine to be configured around different finished-package requirements.
Multi Function Packing Machine Video
Technical Parameters
| Model | GH-280 |
|---|---|
| Bag Type | Triangle Seal / 3-Side Seal / Back Seal |
| Sealing Method | Heat Sealing |
| Power | 1.4KW |
| Machine Dimensions | 810x630x1550mm |
| Machine Weight | 300kg |
| Product Name | Multi Function Packing Machine |
| Available Configurations | Granule / Powder / Liquid Sauce |
| Packaging Speed | 30-70 bags/min |
| Filling Weight | 1-100g |
| Measurement Method | Volumetric Cup Measurement |
| Film Type | PP / PE / PS / EVA / PET / PVDC+PVC / OPP+CPP Composite Film |
| Bag Size | Length 30-170mm / Width 30-140mm |
| Control System | PLC + Touch Screen |
| Power Supply | AC220V / 50Hz |
| Optional Functions | Date Printer / Air Filling / Easy Tear Notch |
Frequently Asked Questions
Which bag formats can the Multi Function Packing Machine produce?
The listed formats are triangle seal, 3-side seal, and back seal bags.
What filling weights are supported?
The stated filling weight range is 1-100g. Final suitability depends on the product and selected machine configuration.
What is the supported bag size?
The listed bag length range is 30-170mm and the bag width range is 30-140mm.
Can the same model be used for different product types?
The GH-280 is offered in granule, powder, and liquid sauce configurations. The appropriate configuration should be selected according to the actual material.
What optional functions are available?
The source lists a date printer, air filling, and easy-tear notch as optional functions.
What information is needed before ordering?
Please provide the product type, filling weight, bag style, bag dimensions, film material, required speed, and desired optional functions. Product and film samples are also useful for confirming the final configuration.
