How the machine works

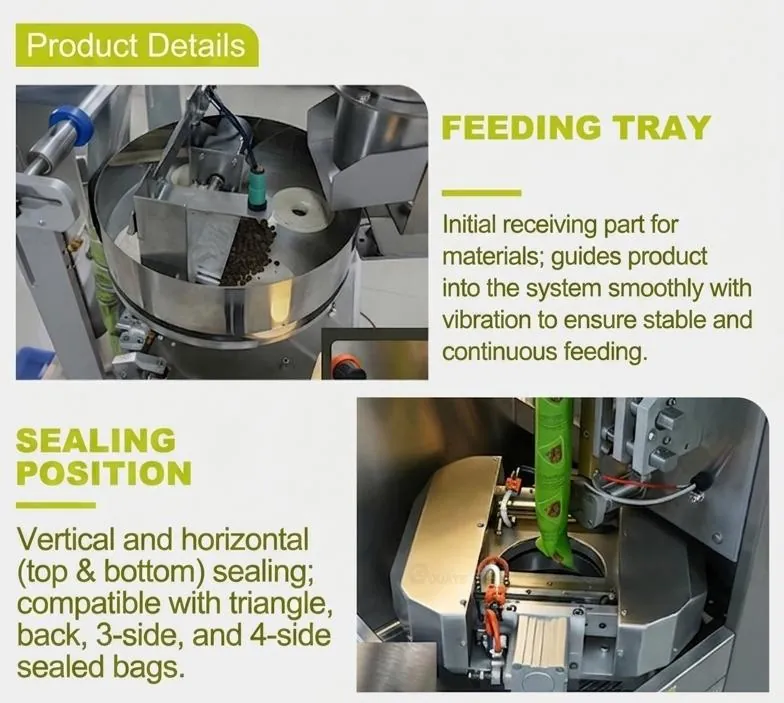

Roll film enters the forming section and is shaped into the selected bag format. Product is measured and filled, after which the machine completes heat sealing, cutting, and finished-bag discharge.
Liquid Packaging Machines
Multi Function Packaging Machine

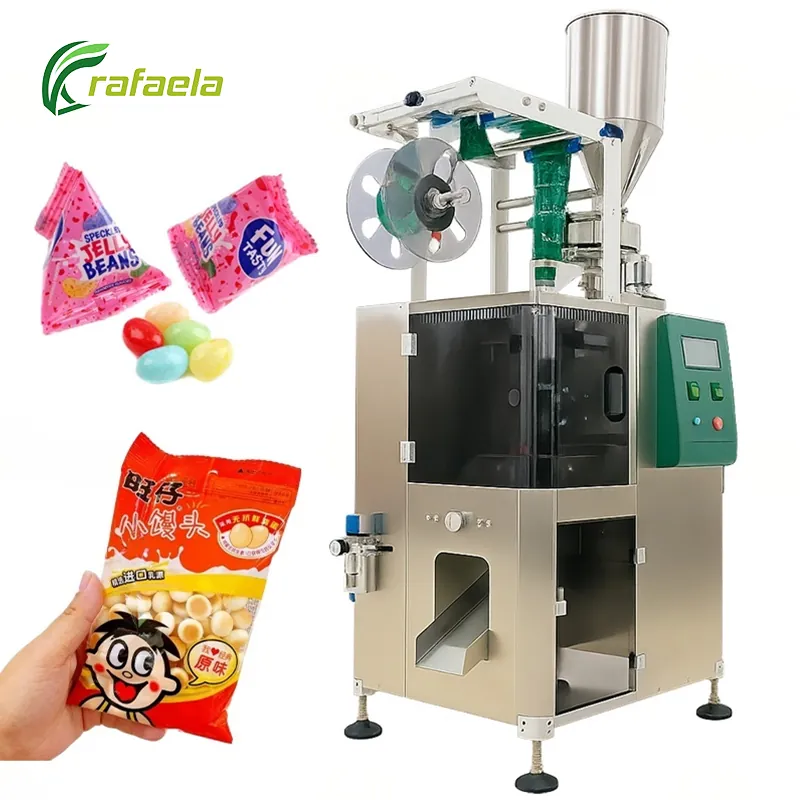

The Multi Function Packaging Machine, model GH-280, is designed for automatic small-format packaging with a stated filling range of 1-100g. It can produce triangle seal, 3-side seal, and back seal bags within a listed size range of 30-170mm in length and 30-140mm in width. Packaging speed is stated at 30-70 bags per minute. With heat sealing, PLC touch-screen control, and separate granule, powder, or liquid sauce configurations, the machine is intended for production lines that need compact equipment with flexible bag-format choices.
1.4KWPower
Heat SealingSealing Type
300kgWeight
Overview
The Multi Function Packaging Machine brings bag forming, product dosing, filling, and heat sealing into one compact vertical process. Its 810x630x1550mm machine size makes it practical where production space is limited.
Applications and options
The GH-280 is offered in granule, powder, and liquid sauce configurations. Final selection should be based on product characteristics, 1-100g target weight, required bag dimensions, film structure, and desired optional functions.
Machine Advantages
Small-Format 1-100g Packaging
The stated filling range of 1-100g makes the machine suitable for compact retail or sample-size packages. Final dosing suitability should be confirmed according to the actual product and selected configuration.
Adjustable Finished Bag Dimensions
Bag length is listed from 30 to 170mm and bag width from 30 to 140mm. This allows different package sizes to be produced within the supported range without changing the basic packaging concept.
Three Sealing Formats
Triangle seal, 3-side seal, and back seal bags are supported. Users can select the bag presentation according to product positioning and the intended finished-package appearance.
Heat-Sealed Package Formation
The GH-280 uses heat sealing to complete the finished bag. Correct temperature and film settings help maintain stable sealing performance across regular production runs.
Compact Automatic Operation
With PLC touch-screen control and a machine footprint of 810x630mm, the GH-280 combines automated packaging with relatively efficient floor-space use.
Multi Function Packaging Machine Video
Technical Parameters
| Model | GH-280 |
|---|---|
| Bag Type | Triangle Seal / 3-Side Seal / Back Seal |
| Sealing Method | Heat Sealing |
| Power | 1.4KW |
| Machine Dimensions | 810x630x1550mm |
| Machine Weight | 300kg |
| Product Name | Multi Function Packaging Machine |
| Available Configurations | Granule / Powder / Liquid Sauce |
| Packaging Speed | 30-70 bags/min |
| Filling Weight | 1-100g |
| Measurement Method | Volumetric Cup Measurement |
| Film Type | PP / PE / PS / EVA / PET / PVDC+PVC / OPP+CPP Composite Film |
| Bag Size | Length 30-170mm / Width 30-140mm |
| Control System | PLC + Touch Screen |
| Power Supply | AC220V / 50Hz |
| Optional Functions | Date Printer / Air Filling / Easy Tear Notch |
Frequently Asked Questions
What is the filling range of the Multi Function Packaging Machine?
The stated filling range is 1-100g. Final suitability depends on the product characteristics and selected machine configuration.
What finished bag sizes are supported?
The listed bag length range is 30-170mm and the bag width range is 30-140mm.
Which bag styles can the GH-280 produce?
The source lists triangle seal, 3-side seal, and back seal formats.
How fast does the machine operate?
The stated packaging speed is 30-70 bags per minute. Actual output depends on bag size, filling weight, film, product, and operating settings.
What measuring method is listed?
The source lists volumetric cup measurement. Because the GH-280 also has different product configurations, the final dosing setup should be confirmed using the actual material before ordering.
Which details should be supplied for configuration confirmation?
Please provide the product type, target weight, bag length and width, selected bag style, film specification, required output, and any optional functions such as date printing, air filling, or an easy-tear notch.
