Horizontal Mixing Equipment

Dry Powder Mixing Equipment

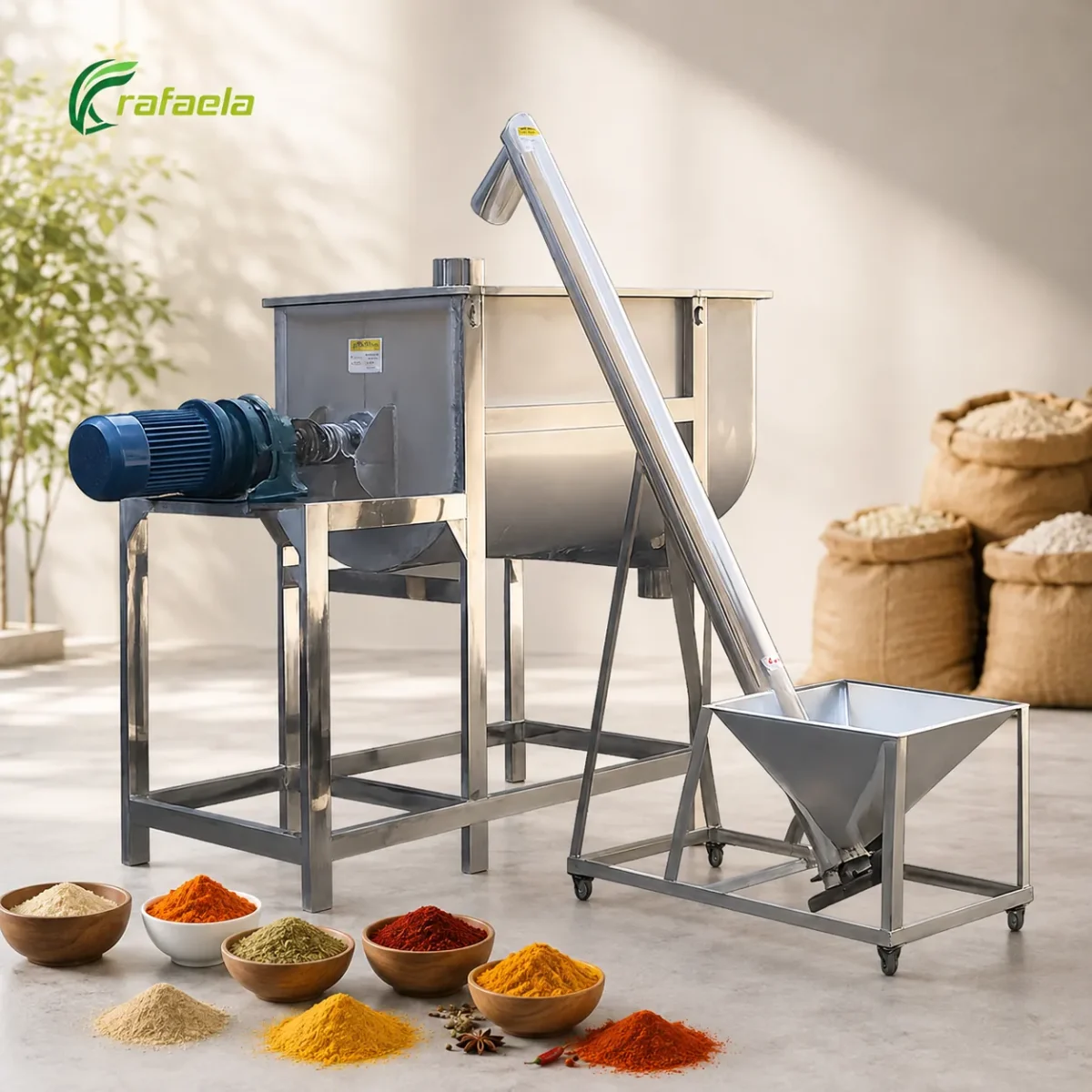

The Dry Powder Mixing Equipment is designed for fast and uniform blending of dry powders and granules in industrial production. Using a horizontal ribbon screw structure with a double-screw mixing system, the machine can complete a mixing cycle in approximately 4-8 minutes and reach a production capacity of up to 300 kg/h. Its stainless steel construction, strong mixing action, and stable drive system make it suitable for continuous processing of materials such as chili powder, tea powder, dry mortar, and other dry powder or granular products.

300 kg/hCapacity

Stainless SteelMaterial

Get a Quote

Overview

The Dry Powder Mixing Equipment combines a horizontal mixing chamber with a ribbon screw agitator to move material in multiple directions during operation. The double-screw structure helps distribute ingredients throughout the mixing chamber, reducing uneven concentration and supporting more consistent blending. The machine is designed for operations that require repeatable dry mixing performance, short batch times, and dependable daily output.

How the machine works

Dry material is loaded into the horizontal mixing chamber before the machine starts. Once activated, the ribbon screw agitator rotates and moves the material both along the length of the chamber and across the mixing zone. The double-screw structure continuously turns and redistributes the powder, helping different ingredients blend more evenly. A typical mixing cycle takes approximately 4-8 minutes, depending on the material properties, batch size, and required uniformity.

Applications and options

The Dry Powder Mixing Equipment can be used for chili powder, tea powder, dry mortar, detergent powder, seasoning powder, food powder, color powder, incense powder, putty powder, and other compatible dry powders or granules. Final suitability depends on particle size, bulk density, moisture level, mixing ratio, and required batch capacity. Material details or samples should be checked before the final machine configuration is confirmed.

Machine Advantages

Fast 4-8 Minute Mixing Cycle

The machine can complete a typical mixing cycle in approximately 4-8 minutes. The horizontal ribbon structure continuously moves material through the chamber, helping shorten batch time while maintaining a uniform blend.

Up to 300 kg/h Production Capacity

With a stated production capacity of up to 300 kg/h, the machine is suitable for regular industrial mixing tasks where stable batch output and repeatable processing are required.

Double-Screw Ribbon Mixing

The double-screw ribbon agitator moves material in multiple directions inside the chamber. This helps reduce dead zones and improves the distribution of powders and granules with different particle sizes or densities.

Stainless Steel Construction

The machine is built with stainless steel, providing a durable working structure for frequent production. The smooth metal surface also makes routine cleaning and material changeovers easier to manage.

Stable Continuous Operation

The machine is equipped with a high-torque drive system designed to support steady mixing under regular production conditions. Its horizontal structure and heavy-duty build provide reliable performance for repeated batch operation.

Dry Powder Mixing Equipment Video

Technical Parameters

Machine Type	Horizontal Mixing Equipment
Model	QT-300L
Production Capacity	300 kg/h
Application	Chili Powder, Tea Powder, Dry Mortar, Powders, Granules
Product Name	Dry Powder Mixing Equipment
Material	Stainless Steel
Mixing Time	4-8 min
Mixing Agitator	Ribbon Screw Blender
Screw Type	Double Screw
Machine Function	Mixing and Homogenizing
After-sales Service	Engineers available to service machinery overseas

Dry Powder Mixing Equipment - Parameter Image 7

Frequently Asked Questions

What materials can the Dry Powder Mixing Equipment handle?

The machine is suitable for dry powders and granules such as chili powder, tea powder, dry mortar, seasoning powder, detergent powder, putty powder, color powder, incense powder, and similar materials. Final suitability depends on particle size, moisture content, and flow characteristics.

How long does one mixing cycle take?

The stated mixing time is approximately 4-8 minutes per batch. Actual time may vary depending on the material type, batch quantity, density difference between ingredients, and the level of uniformity required.

What is the production capacity?

The stated production capacity is up to 300 kg/h. Actual output depends on the batch size, material properties, loading and discharge time, and the required mixing duration for each product.

How does the double-screw ribbon mixer improve blending?

The double-screw ribbon structure moves material in different directions inside the horizontal chamber. This continuous circulation helps distribute ingredients throughout the batch and supports more uniform mixing than simple single-direction agitation.

Is the machine suitable for different powder products?

Yes. The Dry Powder Mixing Equipment can be used for different compatible dry powders and granules. When changing products, the machine should be cleaned and the mixing time may need to be adjusted according to the new material characteristics.

What information should be provided before ordering?

Please provide the material name, particle size, bulk density if available, moisture level, batch quantity, required hourly output, and the number of ingredients to be mixed. Product photos or samples are also useful for checking material compatibility and confirming the most suitable configuration.
