How the machine works
Tubes are positioned automatically, detected by sensors, and aligned before filling. After filling, the tube end is heated, sealed, cooled, and discharged as a finished package.
Paste Packaging Machines

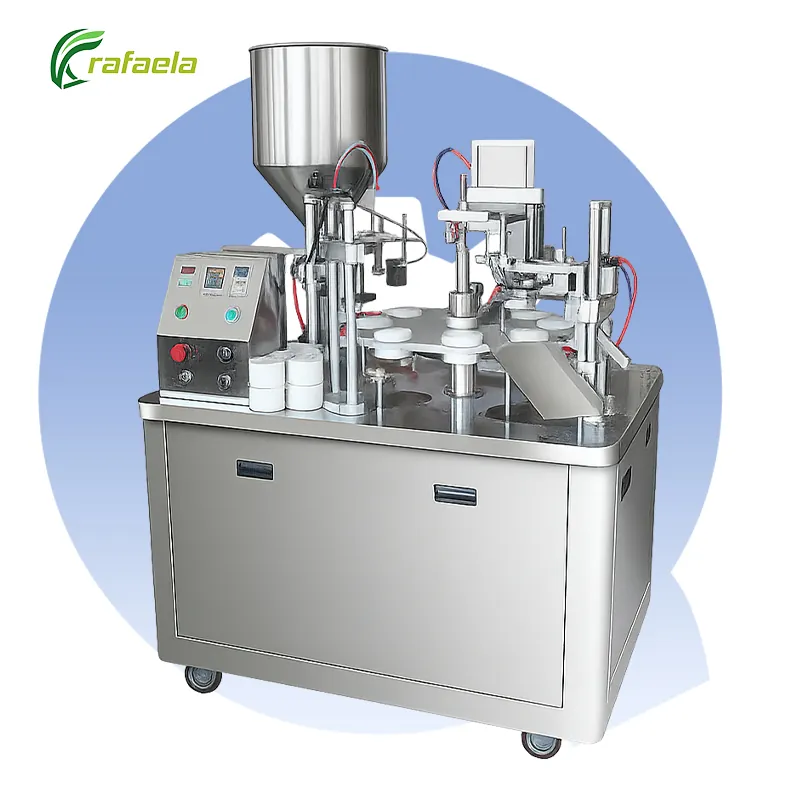

Automatic Tube Filling and Sealing Machine
The Automatic Tube Filling and Sealing Machine, model TFS-50, is designed for filling and sealing plastic, aluminum, and laminated tubes in continuous production. It supports filling volumes from 20 to 200ml, tube diameters from 13 to 50mm, and tube heights from 80 to 220mm. With a stated filling accuracy of ±1% and a production speed of 30-50 pieces per minute, the machine combines automatic tube detection, filling, positioning, heating, sealing, and discharge in one system.
20-200mlFilling Range
3KWPower
650kgWeight
Overview
The Automatic Tube Filling and Sealing Machine integrates tube feeding, filling, alignment, sealing, and discharge in one automatic process. It is suitable for businesses that need stable tube packaging with reduced manual handling.
Applications and options
The Automatic Tube Filling and Sealing Machine is suitable for compatible creams, sauces, pastes, gels, and similar products packed in plastic, aluminum, or laminated tubes. Final setup depends on product viscosity, tube material, tube size, and sealing requirement.
Machine Advantages
±1% Filling Accuracy
The filling system provides a stated accuracy of ±1%. An anti-dripping design helps reduce product residue around the nozzle and supports cleaner filling during continuous operation.
Automatic Tube Detection and Alignment
Sensors detect and position each tube before filling and sealing. This helps maintain more consistent tube orientation and improves repeatability across production batches.
Heating and Cooling Sealing System
The machine uses internal heating together with cooling after sealing. This process helps create a smooth tube end while reducing overheating and deformation around the sealing area.
Wide Tube Compatibility
The machine can handle plastic, aluminum, and laminated tubes within the stated diameter and height ranges. This provides flexibility for different tube packaging formats.
Optional Date Printing
The sealing section can be configured with date printing according to the required setup. This allows production information to be added directly during the sealing process.
Automatic Tube Filling and Sealing Machine Video
Technical Parameters
| Model | TFS-50 |
|---|---|
| Filling Range | 20-200ml |
| Power | 3KW |
| Machine Weight | 650kg |
| Product Name | Automatic Tube Filling and Sealing Machine |
| Equipment Type | Fully Automatic Tube Filling & Sealing Machine |
| Tube Diameter | 13-50mm |
| Tube Height | 80-220mm |
| Filling Accuracy | ±1% |
| Production Speed | 30-50 pcs/min |
| Power Supply | AC 220V, 50/60Hz |
| Air Pressure | 0.4-0.6 Mpa |
| Suitable Tube Types | Plastic, Aluminum, Laminated Tubes |
Frequently Asked Questions
What tube sizes can the Automatic Tube Filling and Sealing Machine handle?
The machine supports tube diameters from 13 to 50mm and tube heights from 80 to 220mm. Final compatibility depends on the tube material and sealing structure.
What is the filling range?
The stated filling range is 20-200ml. The suitable setup depends on product viscosity, target filling volume, and tube dimensions.
What is the production speed?
The stated production speed is 30-50 pieces per minute. Actual output depends on filling volume, tube size, product characteristics, and machine settings.
What tube materials are supported?
The machine can be configured for plastic, aluminum, and laminated tubes. The sealing method should be matched to the actual tube material.
How does the sealing system work?
The tube end is heated and then sealed under controlled conditions. Cooling helps stabilize the finished seal and improve its appearance.
What information should be provided before ordering?
Please provide the product type, viscosity, filling volume, tube diameter, tube height, tube material, required output, and voltage requirement. Tube and product samples are also helpful for confirming compatibility.
