How the machine works
Tubes are automatically detected and aligned before filling. After filling, the tube end is heated, sealed, cooled, and discharged as a finished package.
Paste Packaging Machines
Cosmetic Tube Filling Machine

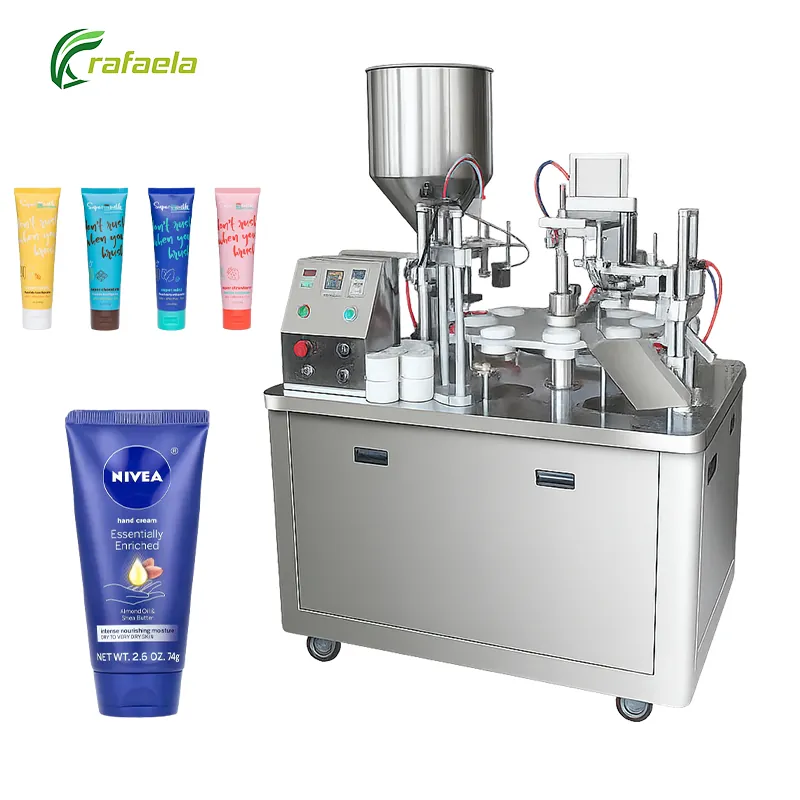

The Cosmetic Tube Filling Machine, model TFS-50, is designed for automatic filling and sealing of cosmetic products packed in plastic, aluminum, and laminated tubes. It supports filling volumes from 20 to 200ml, tube diameters from 13 to 50mm, and tube heights from 80 to 220mm. With a stated filling accuracy of ±1% and a production speed of 30-50 pieces per minute, the machine combines tube detection, positioning, filling, heating, sealing, cooling, and discharge in one continuous system.
20-200mlFilling Range
3KWPower
650kgWeight
Overview
The Cosmetic Tube Filling Machine integrates tube filling and sealing in one automatic process. It is suitable for cosmetic production that requires stable output and consistent tube positioning.
Applications and options
The Cosmetic Tube Filling Machine is suitable for compatible cosmetic creams, gels, and paste products packed in plastic, aluminum, or laminated tubes. Final setup depends on product viscosity, filling volume, tube material, and tube dimensions.
Machine Advantages
±1% Filling Accuracy
The filling system provides a stated accuracy of ±1%. Its anti-dripping design helps reduce product residue around the filling nozzle and supports cleaner tube filling.
Automatic Tube Detection
Sensors detect and position each tube before filling and sealing. This helps improve alignment consistency and reduces manual positioning during continuous production.
Heating and Cooling Sealing
The sealing system uses controlled heating followed by cooling. This helps create a smooth tube end and reduces deformation around the sealed area.
Multiple Tube Materials
The machine supports plastic, aluminum, and laminated tubes within the stated size range, giving cosmetic manufacturers flexibility when using different tube formats.
Optional Date Printing
Date printing can be added to the sealing section according to the selected configuration, allowing production information to be marked during the sealing process.
Cosmetic Tube Filling Machine Video
Technical Parameters
| Model | TFS-50 |
|---|---|
| Filling Range | 20-200ml |
| Power | 3KW |
| Machine Weight | 650kg |
| Product Name | Cosmetic Tube Filling Machine |
| Equipment Type | Fully Automatic Tube Filling & Sealing Machine |
| Tube Diameter | 13-50mm |
| Tube Height | 80-220mm |
| Filling Accuracy | ±1% |
| Production Speed | 30-50 pcs/min |
| Power Supply | AC 220V, 50/60Hz |
| Air Pressure | 0.4-0.6 Mpa |
| Suitable Tube Types | Plastic, Aluminum, Laminated Tubes |
Frequently Asked Questions
What cosmetic products can the Cosmetic Tube Filling Machine handle?
The machine is suitable for compatible creams, gels, and paste products. Final suitability depends on product viscosity and whether the material can be filled smoothly through the selected filling system.
What is the filling range?
The stated filling range is 20-200ml. The correct setup depends on target filling volume, product viscosity, and tube dimensions.
What tube sizes are supported?
The machine supports tube diameters from 13 to 50mm and tube heights from 80 to 220mm.
What is the production speed?
The stated production speed is 30-50 pieces per minute. Actual output depends on filling volume, tube size, product characteristics, and operating settings.
What tube materials can be used?
The machine can be configured for plastic, aluminum, and laminated tubes. The sealing setup should be matched to the actual tube material.
What information should be provided before ordering?
Please provide the product type, viscosity, filling volume, tube diameter, tube height, tube material, required output, and voltage requirement. Product and tube samples are also helpful for confirming compatibility.
