How the machine works
The product is wrapped and sealed in shrink film before passing through the heated shrinking section. Controlled hot air contracts the film around the product to form the finished package.
Irregular Product Packaging Machines
Thermal Shrink Packaging Machine

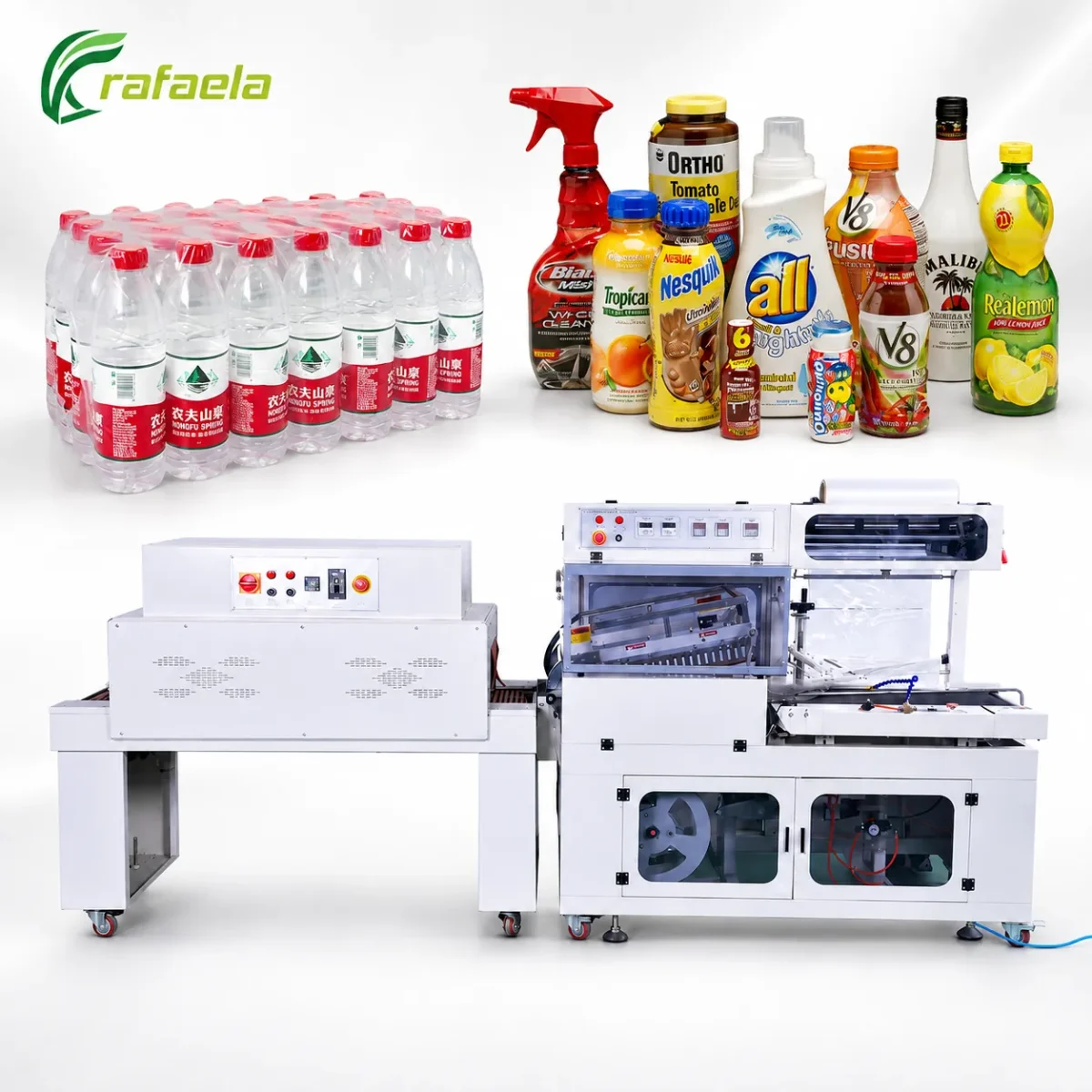

The Thermal Shrink Packaging Machine is designed for automatic film wrapping and heat shrinking of cartons, cans, bottles, bags, and cases. It uses POF shrink film and combines sealing with thermal shrinking to create a tight and neat outer package around the product. With automatic operation, a 220V power supply, 1.35KW rated power, and a machine size of 1750x900x1450mm, it is suitable for commercial packaging lines that require consistent wrapping and reduced manual handling.
1.35KWPower
Heat Shrinking SealingSealing Type
220VVoltage
300kgWeight
Overview
The Thermal Shrink Packaging Machine combines film sealing and heat shrinking in one continuous packaging process. It is suitable for different product shapes and regular shrink wrapping applications.
Applications and options
The Thermal Shrink Packaging Machine can be used for cartons, cans, bottles, bags, and cases. Final setup depends on product dimensions, film specification, package shape, and required output.
Machine Advantages
Automatic Wrapping Process
The machine automates film sealing and thermal shrinking, helping reduce repetitive manual wrapping work and improve packaging consistency during regular production.
Clean Film Sealing
The sealing system is designed to create neat and stable film seals before shrinking. Correct film tension and sealing settings help maintain a consistent finished appearance.
Wide Product Compatibility
The machine can handle cartons, cans, bottles, bags, and other compatible products, making it suitable for a variety of commercial shrink packaging applications.
Even Thermal Shrinking
The heated shrinking section distributes hot air around the package so the film contracts more evenly and fits closely around the product.
Durable Machine Structure

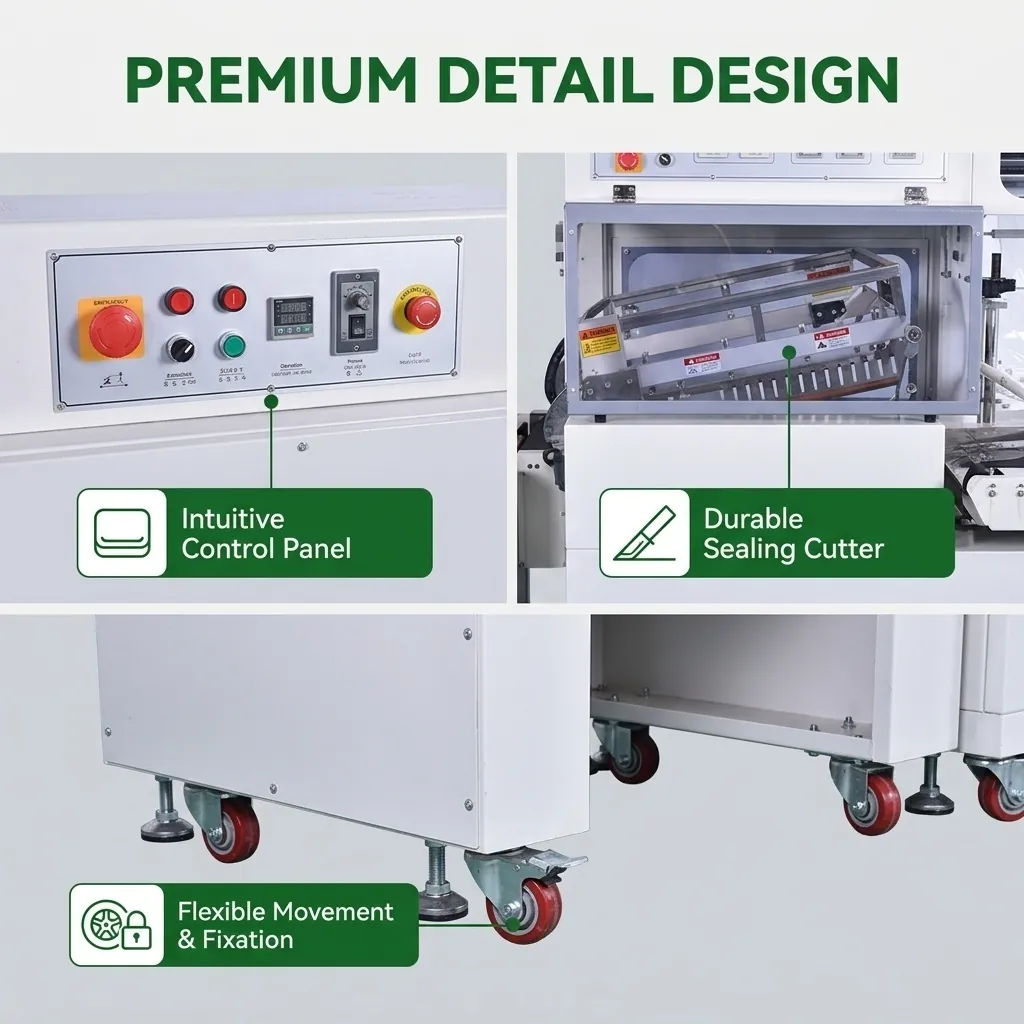

The machine uses a heavy-duty frame designed for regular production. Its automatic control system also helps simplify routine operation and packaging adjustments.
Thermal Shrink Packaging Machine Video
Technical Parameters
| Packaging Type | Cartons, Cans, Bottles, Bags, Cases |
|---|---|
| Packing Material | POF |
| Sealing Type | Heat Shrinking Sealing |
| Voltage | 220V |
| Power | 1.35KW |
| Machine Dimensions | 1750x900x1450mm |
| Machine Weight | 300kg |
| Product Name | Thermal Shrink Packaging Machine |
| Type | Wrapping Machine |
| Automatic Grade | Automatic |
| Function | Film Packaging Machine |
| Certification | CE |
| After-sales Service | Online Support, Video Technical Support, Spare Parts |
Frequently Asked Questions
What products can the Thermal Shrink Packaging Machine pack?
The machine is suitable for cartons, cans, bottles, bags, cases, and other compatible products. Final suitability depends on product size, shape, and packaging requirements.
What shrink film does the machine use?
The listed packing material is POF shrink film. Film width, thickness, and shrink characteristics should be matched to the product and machine setup.
How does thermal shrinking work?
The product is first wrapped and sealed in film. It then passes through the heated section, where controlled hot air causes the film to contract around the package.
Is the machine automatic?
Yes. The listed automation grade is automatic, allowing the sealing and shrinking process to be completed with reduced manual handling.
What power supply is required?
The listed power supply is 220V, with a rated power of 1.35KW.
What information should be provided before ordering?
Please provide the product length, width, height, package type, film specification, required output, and voltage requirement. Product photos or samples are also helpful for confirming compatibility.
