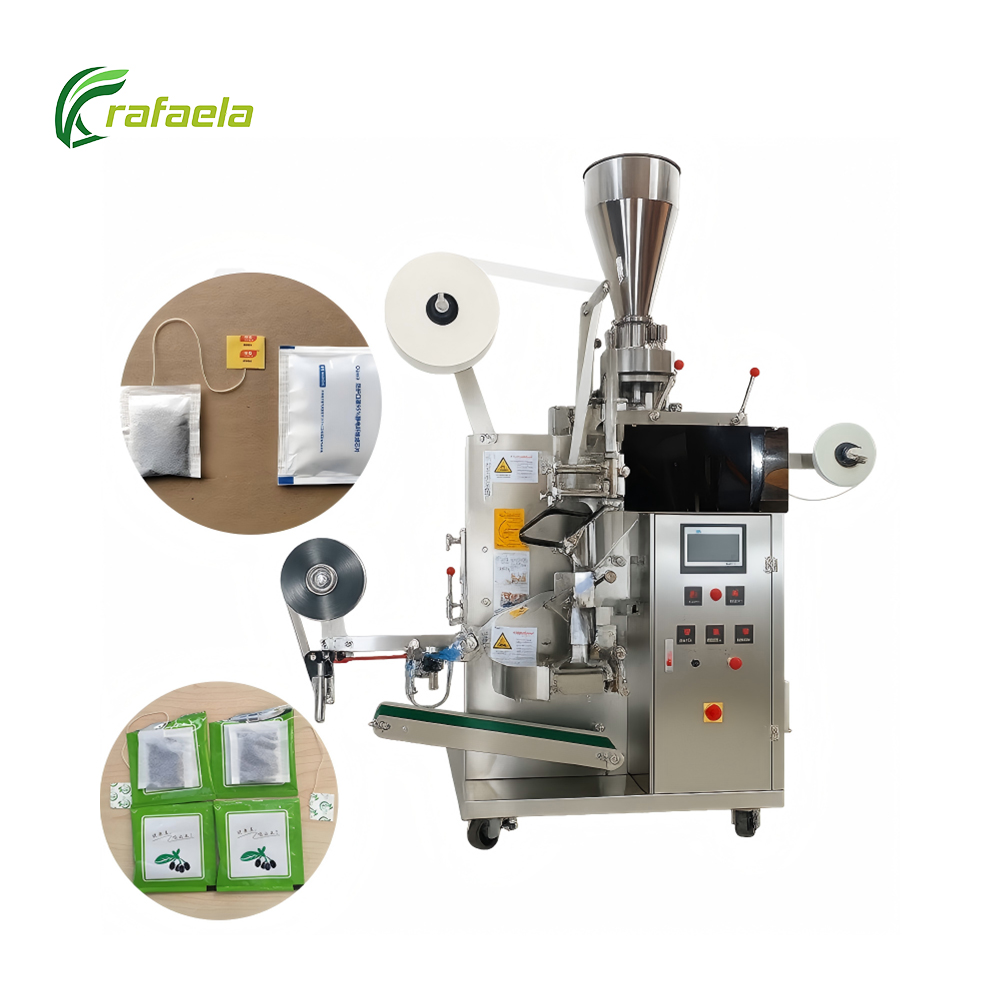

Inner and Outer Tea Bag Packing Machine
The Tea Sachet Packing Machine is designed for tea processors that need inner filter bags and sealed outer envelopes from one automatic line. In a continuous cycle, it measures 3–10 g portions, forms the filter paper sachet, adds the string and tag, seals the outer composite-film wrapper, and cuts each finished pack. Running at 30–40 bags per minute, it is suitable for tea, herbal blends, selected coffee granules, and compatible health-product granules supplied to retail, hospitality, and contract-packing markets.
The Tea Sachet Packing Machine combines dosing, inner-bag forming, string and tag placement, outer-envelope wrapping, heat sealing, and cutting in one line. It produces individually wrapped tea bags with a 3–10 g fill range and a rated speed of 30–40 bags per minute.
The Tea Sachet Packing Machine feeds filter paper and the measured product to form the inner tea bag, attaches the string and tag, then wraps it in composite film. Heat sealing and cutting complete the outer envelope before the finished sachet is discharged.
The Tea Sachet Packing Machine is intended for tea, herbal blends, selected coffee granules, and compatible dry health-product granules. It produces a filter paper inner bag with string and tag inside a sealed outer envelope. Final suitability should be confirmed with product and packaging samples.
The machine completes the filter bag, string and tag, and sealed outer envelope in a continuous sequence. This reduces handling between separate stations and gives each tea bag its own individual retail wrapper.
With a rated speed of 30–40 bags per minute, the machine provides steady output for tea brands, private-label suppliers, hospitality-product manufacturers, and contract packers without making routine production unnecessarily complicated.
The filling range covers many common single-serve portions. Final settings can be matched to the recipe, although dosing performance will depend on the product’s density, particle size, moisture level, and flow behavior.
The Tea Sachet Packing Machine places each string-and-tag filter bag inside a heat-sealed composite-film envelope. The outer pack helps protect the inner bag during storage and handling; its barrier performance depends on the selected film.
Besides conventional tea, the machine can handle selected herbal blends, coffee granules, and compatible dry health-product granules. Representative samples should be tested when the material is very fine, lightweight, sticky, or irregular.
| Machine Type | Inner and Outer Tea Bag Packing Machine |
|---|---|
| Model | DCK-18 |
| Packing Speed | 30–40 bags/min |
| Filling Range | 3–10 g |
| Sealing Method | Heat sealing |
| Machine Dimensions | 1750 × 740 × 1950 mm |
| Machine Weight | 550 kg |
| Product Name | Tea Sachet Packing Machine |
| Applicable Products | Tea, selected coffee granules, and compatible dry herbal or health-product granules |
| Finished Pack | Filter paper inner bag with string and tag, sealed inside an outer envelope |
| Inner Bag Material | Filter paper, string, and tag paper |
| Outer Bag Material | Composite film |
| Power Supply | 220 V, 50 Hz, single phase |
| Rated Power | 3.7 kW |
| Certification | CE, ISO 9001 |
It is intended for tea, herbal blends, selected coffee granules, and compatible dry health-product granules. Because density, particle size, moisture, and flow behavior affect dosing, a representative product sample should be checked before the machine configuration is finalized.
The machine makes an inner filter paper tea bag with a string and tag, then seals it inside an individual outer envelope made from composite film. Other bag formats should not be assumed to be standard for this model.
The confirmed filling range is 3–10 g per bag. The usable setting for a particular recipe depends on bulk density and how consistently the material flows through the measuring system, so the target portion should be confirmed with a sample.
The rated packing speed is 30–40 bags per minute. Actual output may vary with the fill weight, product characteristics, packaging material, sealing temperature, and the adjustments needed to keep both the inner and outer packs stable.
The inner bag uses filter paper together with string and tag paper, while the outer envelope uses composite film. Material specifications and roll dimensions should be confirmed before production to ensure correct forming, feeding, and heat sealing.
Please provide the product name, a sample or clear photos, target weight per bag, required inner and outer package dimensions, packaging-material specifications, and local power supply. These details allow the final configuration to be checked against the intended application.
