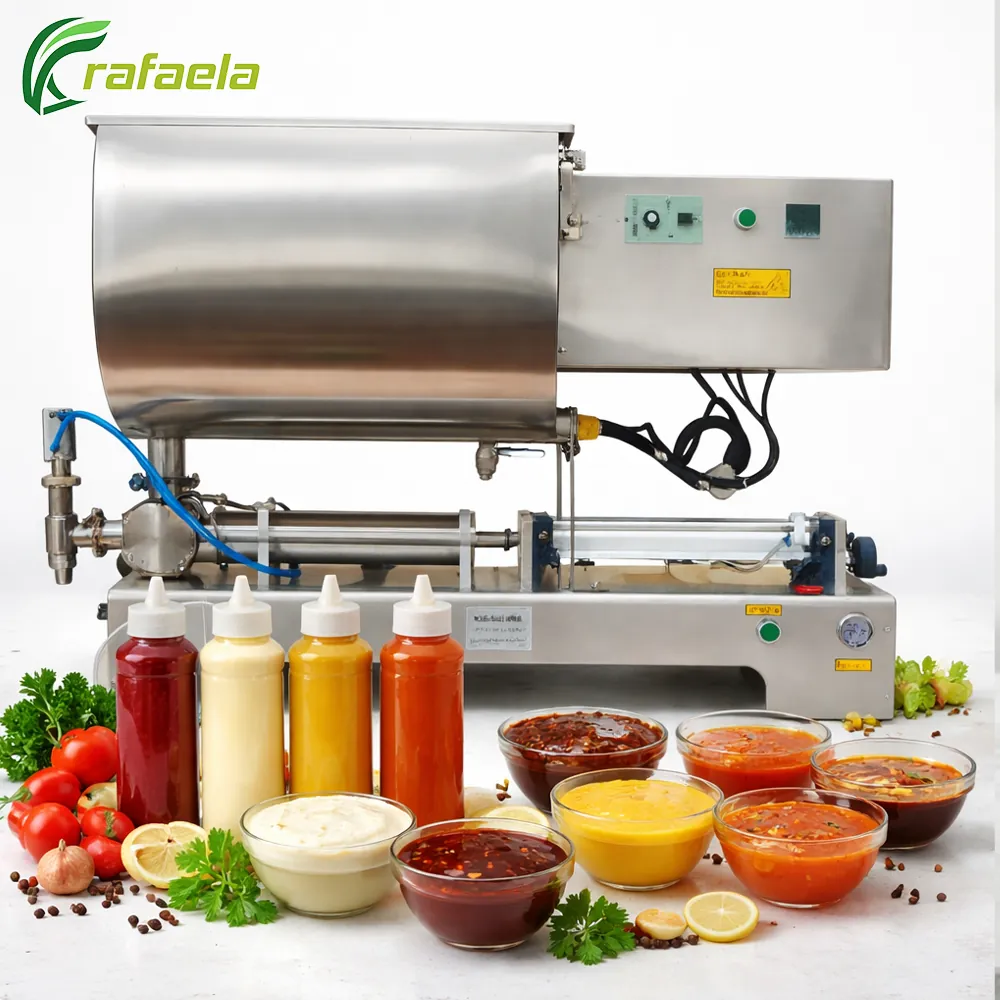

The Semi Automatic Sauce Dosing Machine is designed for controlled portioning of sauces, pastes, and liquid condiments into bottles, bags, or other compatible containers. Using a piston pump dosing system, it supports adjustable volumes from 10ml to 5000ml with a stated accuracy of ±1.5%. The machine can handle products with different viscosities and can be configured for selected sauces containing small particles. Its 30-liter hopper, SUS304 stainless steel structure, and optional one- or two-nozzle arrangement make it suitable for flexible batch production and repeated portion control.
The Semi Automatic Sauce Dosing Machine uses piston movement to draw, measure, and discharge a set quantity of product during each cycle. It is intended for applications where repeatable sauce portions are required without a fully automatic filling line. The adjustable dosing volume allows manufacturers to work with different recipes, container sizes, and production batches, while the semi-automatic operating method gives operators direct control over container positioning and cycle timing.
Sauce is loaded into the 30-liter hopper and supplied to the piston chamber. During each dosing cycle, the piston draws a measured quantity of material and then pushes it through the filling nozzle into the prepared container. The operator places the bottle or bag below the nozzle and starts the cycle. The pneumatic system operates with an air pressure requirement of 4-6Kg/cm², while the piston stroke is adjusted according to the required dosing volume.
The Semi Automatic Sauce Dosing Machine can be used for ketchup, hot sauce, chili sauce, barbecue sauce, mayonnaise, chutney, tomato sauce, seasoning sauce, fruit sauce, syrup, paste products, and other similar liquids or semi-liquid materials. It can also be considered for products containing small particles when the material characteristics and particle size are compatible with the filling path. One-nozzle and two-nozzle versions can be selected according to the required output and working arrangement.
The piston dosing structure measures and discharges a controlled quantity during each cycle. This helps operators maintain more consistent sauce portions across bottles or bags when the machine is correctly adjusted for the selected product.
The machine supports a stated dosing range from 10ml to 5000ml. This makes it suitable for different package sizes and portion requirements without changing the basic operating principle.
The piston pump system can work with both relatively fluid sauces and thicker paste-like products. The filling path and nozzle can be selected according to the actual viscosity and material characteristics.

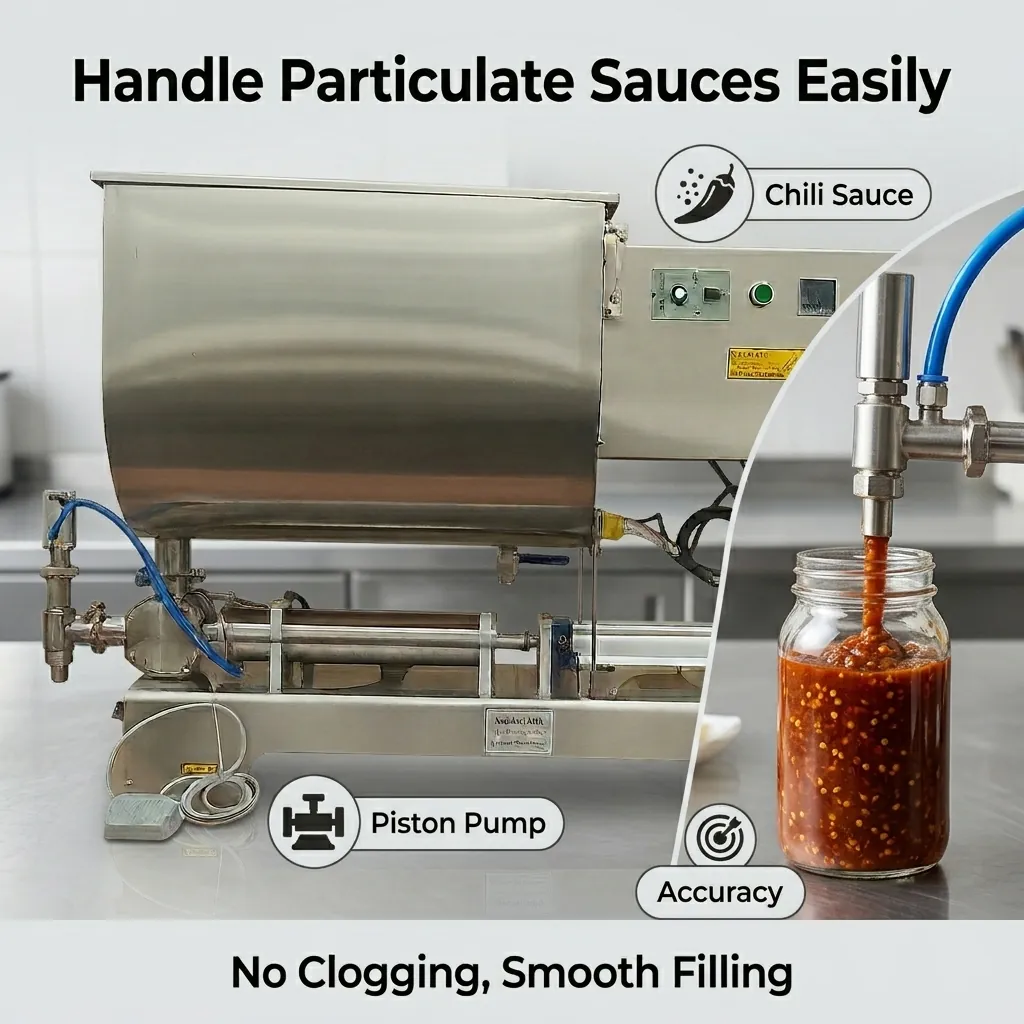

The machine can be configured for selected sauces containing small particles, provided their size is compatible with the filling channel and nozzle. This makes it useful for applications such as chili sauces, chutneys, and other textured condiments.
The product-contact components are designed for convenient disassembly during routine cleaning. SUS304 stainless steel construction provides a durable working surface and supports easier daily maintenance between production batches.
| Model | BGZ-10 |
|---|---|
| Filling Range | 10-5000ml |
| Packaging Type | Bottles, Bags |
| Power | 500W |
| Machine Weight | 50KG |
| Product Name | Semi Automatic Sauce Dosing Machine |
| Automation Grade | Semi-automatic |
| Filling Speed | 10-30 pcs/min |
| Machine Capacity | 1000 BPH |
| Filling Accuracy | ±1.5% |
| Filling Type | Piston Pump Filling |
| Working Principle | Piston Filling |
| Filling Nozzles | 1 or 2 |
| Hopper Capacity | 30L |
| Machine Material | SUS304 Stainless Steel |
| Air Compressor Requirement | 4-6Kg/cm² |
| Machine Size | 1250*420*950mm |
| Certification | CE |
| After-sales Service | Engineers available to service machinery overseas |
The machine is suitable for sauces, pastes, and liquid condiments such as ketchup, hot sauce, chili sauce, barbecue sauce, mayonnaise, chutney, tomato sauce, fruit sauce, syrup, and similar materials. Product viscosity and particle size should be confirmed before the machine configuration is finalized.
The stated dosing range is 10-5000ml. The most suitable operating range depends on the product characteristics, target portion size, container dimensions, and piston configuration. Providing the required dosing volume helps confirm the correct setup.
The machine has a stated filling accuracy of ±1.5%. The piston system uses a controlled stroke to measure and discharge product. Stable material conditions, correct adjustment, and suitable air pressure help support repeatable dosing results.
Yes. The piston pump filling principle is suitable for many thick sauces and paste-like products. For very dense or highly viscous materials, the actual product characteristics should be reviewed before selecting the filling path and nozzle.
Yes, selected sauces containing small particles can be processed when the particle size is compatible with the filling channel. Material samples or detailed product information are recommended for textured sauces to confirm the appropriate nozzle and configuration.
Please provide the product name, viscosity or flow condition, whether the material contains particles, particle size if applicable, target dosing volume, container type, container opening size, and required output. Product photos or samples can also help confirm the correct piston and nozzle arrangement.
