How the machine works
Compressed air drives the cylinder to draw and discharge a measured amount of product. The operator can start each cycle by foot pedal or use automatic mode for repeated filling.

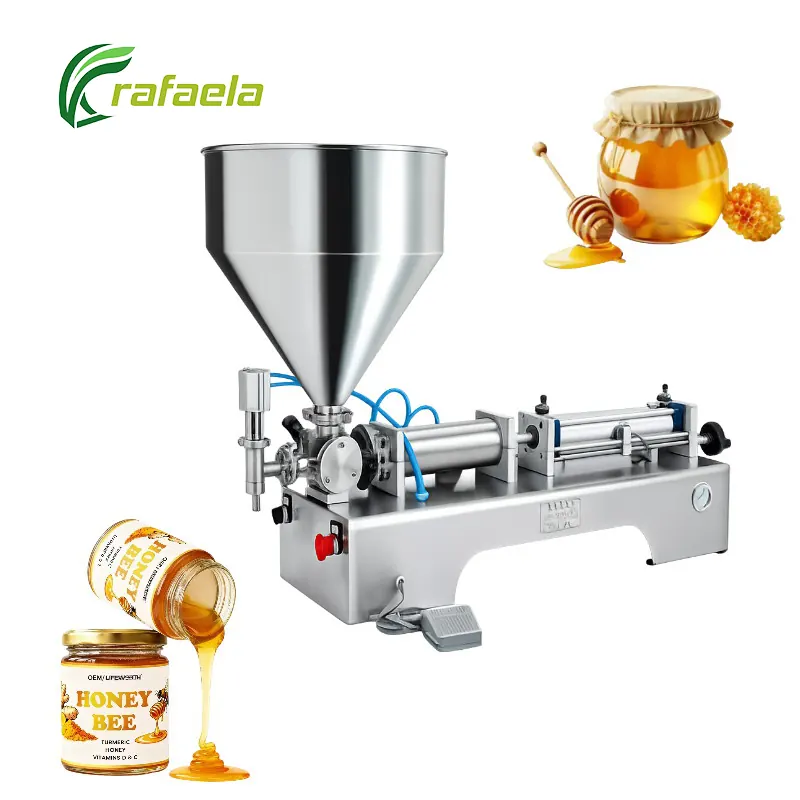

Small Paste Filling Machine
Semi Automatic Paste Filling Machine
The Semi Automatic Paste Filling Machine is designed for accurate filling of sauces, creams, gels, detergents, and other compatible viscous products. It features a fixed filling range of 100-1000ml and provides a stated filling accuracy of 0.5%-1%. With a filling speed of up to 50 bottles per minute, stainless steel construction, pneumatic cylinder drive, and switchable foot-pedal or automatic operation, the machine is suitable for flexible small-batch and routine paste filling production.
100-1000mlFilling Range
10WPower
28kgWeight
Overview

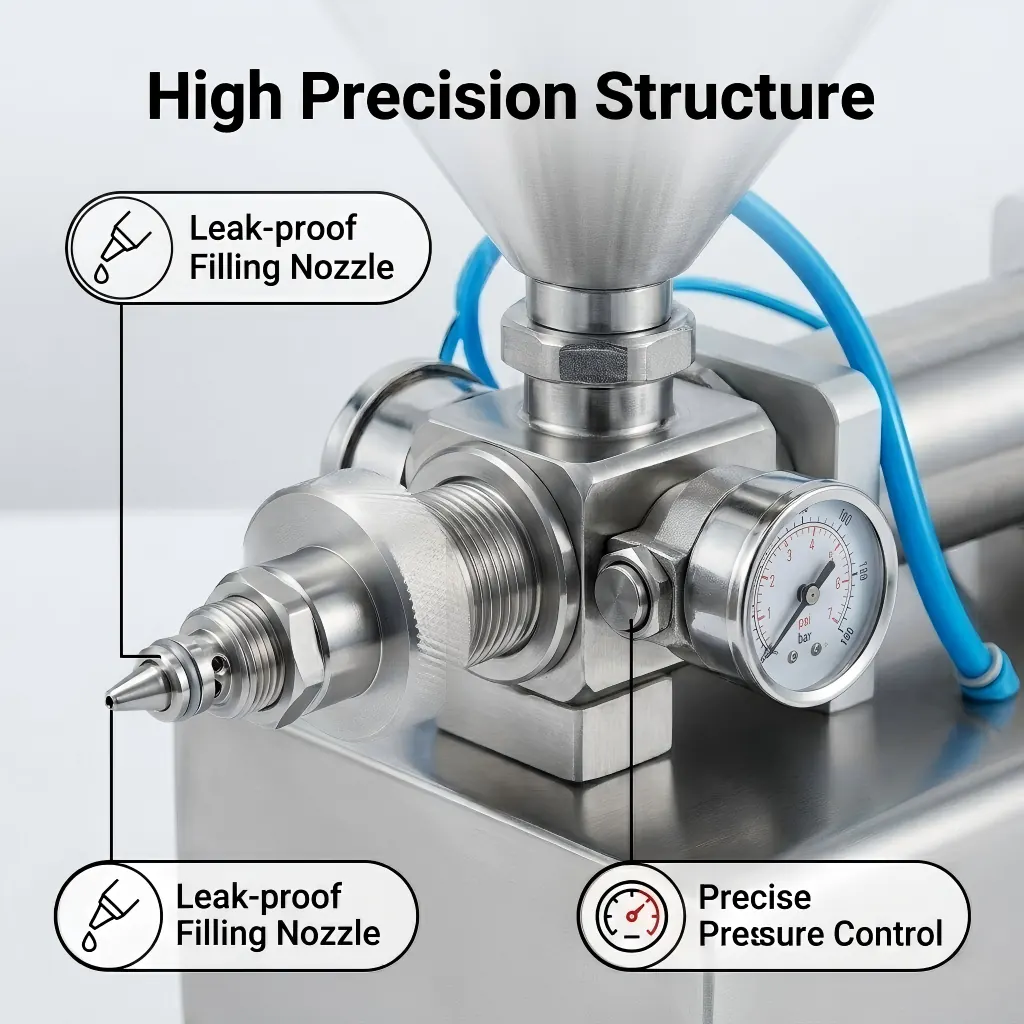

The Semi Automatic Paste Filling Machine uses a pneumatic cylinder with a 3-way rotary valve for controlled product dosing. Its compact structure is suitable for filling different containers within the 100-1000ml range.
Applications and options
The Semi Automatic Paste Filling Machine is suitable for sauces, creams, gels, detergents, liquid seasonings, and similar viscous products. Final setup depends on product viscosity, container opening, and required output.
Machine Advantages
Fixed 100-1000ml Filling Range
The machine is configured for filling volumes from 100 to 1000ml, making it suitable for medium and larger container sizes within this range.
0.5%-1% Filling Accuracy
The machine provides a stated filling accuracy of 0.5%-1%. Controlled pneumatic dosing helps maintain consistent filling volumes when product conditions remain stable.
Foot Pedal or Automatic Mode
Operators can switch between foot-pedal control and automatic operation, providing flexibility for testing, small batches, and repeated production.
Stainless Steel Construction
The machine uses a stainless steel body, while product-contact parts are designed for durability, corrosion resistance, and easier routine cleaning.
Easy Cleaning and Maintenance
Key filling components can be disassembled for cleaning, helping reduce downtime when changing products or carrying out routine maintenance.
Semi Automatic Paste Filling Machine Video
Technical Parameters
| Machine Type | Small Paste Filling Machine |
|---|---|
| Filling Range | 100-1000ml |
| Suitable Materials | Sauces, Creams, Gels, Detergents, and Other Pasty Materials |
| Power | 10W |
| Machine Weight | 28kg |
| Product Name | Semi Automatic Paste Filling Machine |
| Core Material | Stainless Steel Body |
| Filling Accuracy | 0.5%-1% |
| Filling Speed | 0-50 bottles/min |
| Control Mode | Foot Pedal / Automatic Mode, Switchable |
| Rated Air Pressure | 4-6kg |
| Power Supply | 220V / 50Hz |
| Driving Method | Cylinder Driven + 3-Way Rotary Valve |
| Machine Size | 1150x380x380mm |
Frequently Asked Questions
What products can the Semi Automatic Paste Filling Machine handle?
The machine is suitable for compatible sauces, creams, gels, detergents, and other viscous paste materials. Final suitability depends on product viscosity and flow characteristics.
What is the filling range?
The filling range is fixed at 100-1000ml. This version is intended for containers requiring filling volumes within this range.
What is the filling speed?
The stated filling speed is 0-50 bottles per minute. Actual output depends on filling volume, product viscosity, operator workflow, and machine settings.
What air pressure is required?
The stated rated air pressure is 4-6kg. A suitable external air supply is required for pneumatic operation.
How is the machine controlled?
The machine supports both foot-pedal control and automatic mode, allowing operators to select the most suitable working method for each production task.
What information should be provided before ordering?
Please provide the product type, viscosity, target filling volume between 100 and 1000ml, container size, container opening, required output, and power supply requirement. Product and container samples are also helpful for confirming compatibility.
