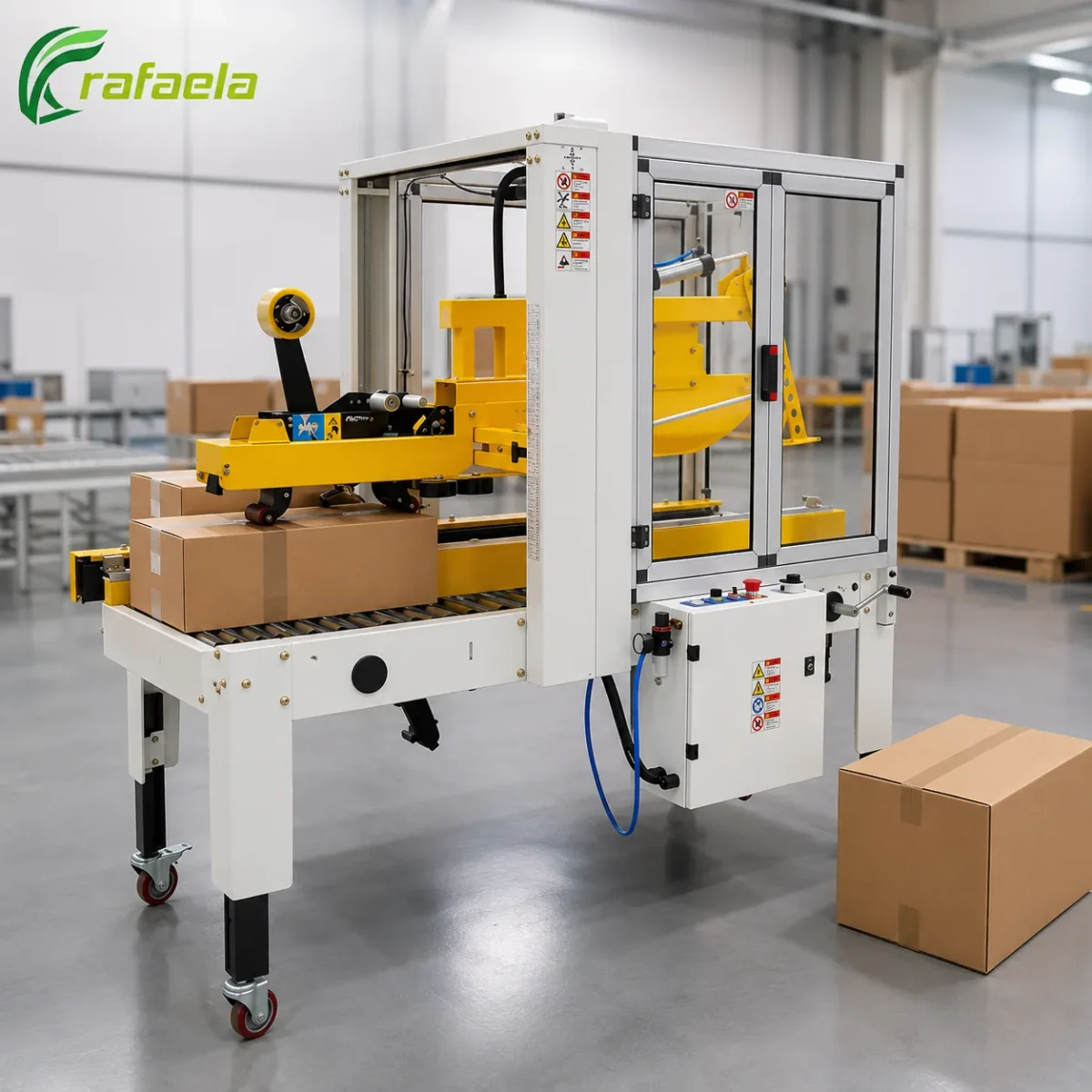

The Semi Automatic Carton Sealer is designed for efficient top-and-bottom sealing of corrugated cartons using adhesive tape. Operators feed cartons into the machine, while the conveyor and tape heads complete the sealing process automatically. The machine supports carton widths from 150 to 500 mm, heights from 120 to 500 mm, and carton lengths starting from 150 mm. With a conveyor speed of up to 30 boxes per minute and support for 48, 60, and 75 mm tape widths, it is suitable for daily packing operations that require flexible carton handling and consistent sealing quality.
The Semi Automatic Carton Sealer provides a practical solution for businesses that want to reduce manual taping work without installing a fully automatic carton packing line. Once the carton is placed onto the conveyor, the machine applies adhesive tape along the top and bottom center seams. Its adjustable width and height structure allows operators to change settings for different compatible carton sizes, making it suitable for mixed production and regular size changeovers.
The operator places a closed carton onto the conveyor and guides it into the sealing section. As the carton moves forward, the upper and lower tape heads apply adhesive tape to the center seams. Pressure rollers press the tape firmly onto the carton surface before the finished box exits the machine. When changing carton sizes, the operator adjusts the machine width and height settings to keep the box properly aligned during sealing.
The Semi Automatic Carton Sealer is suitable for corrugated cartons used in food processing, household goods, hardware, electronics, general merchandise, warehouse packing, and other end-of-line packaging applications. It can handle carton widths from 150 to 500 mm and heights from 120 to 500 mm, with carton lengths starting from 150 mm. Tape widths of 48, 60, and 75 mm are supported, with customization available according to the packaging requirement.
Operators only need to place cartons onto the conveyor and guide them into the sealing section. The machine then applies tape automatically, reducing repetitive hand taping while keeping the overall process easy to manage.
The machine applies adhesive tape to both the upper and lower center seams in one pass. This helps create a neat and consistent carton closure and reduces the amount of manual handling required during packing.
The machine supports carton widths from 150 to 500 mm and heights from 120 to 500 mm. Operators can adjust the width and height settings when switching between different compatible carton sizes.
The sealing system supports 48, 60, and 75 mm tape widths, with customization available. This allows users to select tape according to carton dimensions, closure requirements, and existing packing materials.
With a stated conveyor speed of up to 30 boxes per minute, the machine can support regular end-of-line packing tasks. Its stainless steel or painted steel frame provides a durable structure for routine operation and maintenance.
| Model | FCS-50 |
|---|---|
| Sealing Type | Top and Bottom Sealing |
| Machine Dimensions | 850x850x1350mm |
| Machine Weight | 125kg |
| Product Name | Semi Automatic Carton Sealer |
| Applicable Carton Size | L≥150mm; W:150-500mm; H:120-500mm |
| Conveyor Speed | Up to 30 boxes/min |
| Tape Width | 48/60/75mm (customizable) |
| Power Supply | 110V/220V, 50/60Hz |
| Rated Power | 240W |
| Material | Stainless Steel / Painted Steel |
| Automation Grade | Semi-automatic / Fully Automatic |
The stated carton size range starts from 150 mm in length, with widths from 150 to 500 mm and heights from 120 to 500 mm. Final suitability also depends on carton strength, shape, and whether the box can move smoothly through the conveyor.
The carton is placed and guided into the machine by an operator, while the conveyor and tape heads complete the sealing process automatically. This setup reduces manual taping work while keeping carton handling simple and flexible.
Yes. The machine is designed for top-and-bottom center sealing. Adhesive tape is applied to both seams as the carton passes through the sealing section.
The stated conveyor speed is up to 30 boxes per minute. Actual production output depends on carton size, operator feeding speed, tape condition, carton consistency, and the surrounding packing workflow.
Yes, provided the cartons remain within the stated size range. The width and height settings can be adjusted manually when changing to another compatible carton size so the box remains centered during sealing.
Please provide the carton length, width, height, approximate carton weight, required production speed, tape width, and power supply requirement. Photos or samples of the actual carton are also useful for checking compatibility and confirming the suitable machine setup.
