How the machine works
Packaging film is guided through multiple parallel lanes and formed into the selected sachet format. Each lane completes dosing, filling, sealing, cutting, and discharge while the PLC synchronizes the full process.
Powder Packaging Machines

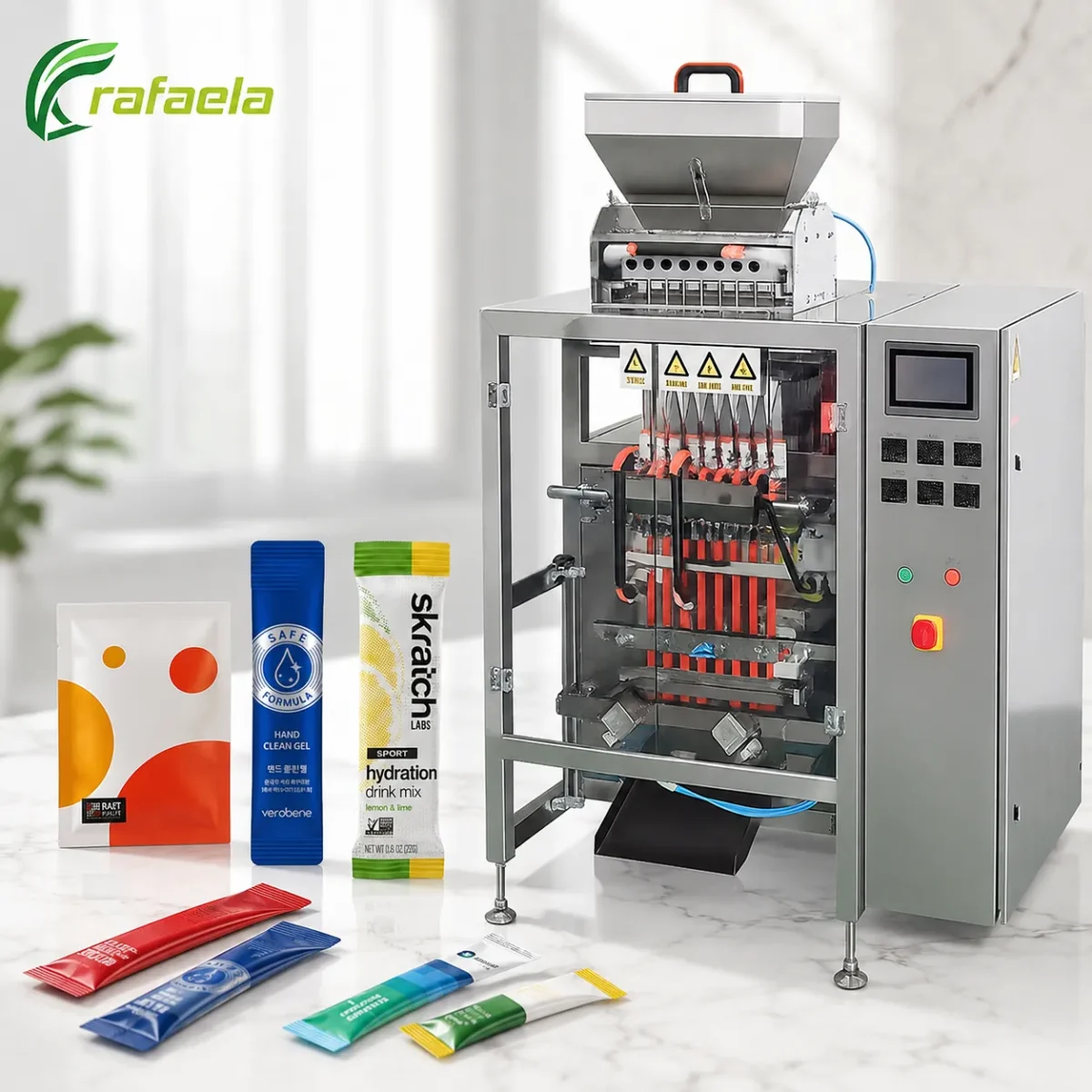

Multi Lane Sachet Packing Machine
The Multi Lane Sachet Packing Machine, model MP-40L, is designed for simultaneous production of multiple small sachets on one automatic packaging platform. It is available with 2, 4, 6, 8, 10, or 12 lanes and provides a stated speed of 30-60 bags per minute per lane. The machine can be configured for granules, powders, liquids, and pastes, with filling ranges of 1-50g, 1-100ml, or customized specifications. Back-seal, 3-side-seal, and 4-side-seal sachets are supported, while PLC and HMI control coordinate all lanes during continuous production.
30-60 bags/min/laneCapacity
1-50g / 1-100ml / CustomizableFilling Range
5-9KWPower
Heat Sealing / Ultrasonic Sealing (Optional)Sealing Type
Overview
The Multi Lane Sachet Packing Machine is designed for projects where many small packs must be produced at the same time. Different lane counts allow users to match total capacity to the required sachet size and output.
Applications and options
The machine can be configured for granules, powders, liquids, or pastes. Final setup depends on sachet dimensions, filling weight or volume, lane count, film material, sealing method, and required output.
Machine Advantages
Parallel Sachet Production
Multiple lanes operate at the same time, allowing one machine to produce several sachets during each packaging cycle. This helps increase output without installing several separate packing machines.
Three Sachet Seal Formats
The listed bag styles include back seal, 3-side seal, and 4-side seal. This gives users different finished-package options for small sachet products.
Flexible Dosing Configurations
The source lists filling ranges of 1-50g and 1-100ml, with customized ranges also available. The machine can be matched to granule, powder, liquid, or paste products according to the selected dosing system.
Broad Composite Film Support
Supported film structures include PET/PE, NY/PE, BOPP/CPP, and composite films. Film width per lane is listed from 15 to 90mm depending on sachet size and lane count.
Centralized Lane Synchronization
PLC control and an HMI touch screen coordinate the multiple packaging lanes from one interface, helping operators manage parameters and maintain stable synchronized operation.
Multi Lane Sachet Packing Machine Video
Technical Parameters
| Model | MP-40L |
|---|---|
| Packing Speed | 30-60 bags/min/lane |
| Filling Range | 1-50g / 1-100ml / Customizable |
| Bag Type | Back Seal / 3-Side Seal / 4-Side Seal |
| Sealing Method | Heat Sealing / Ultrasonic Sealing (Optional) |
| Power | 5-9KW |
| Machine Dimensions | 1450x1750x2400mm |
| Machine Weight | 450kg |
| Product Name | Multi Lane Sachet Packing Machine |
| Number of Lanes | 2 / 4 / 6 / 8 / 10 / 12 lanes |
| Listed Production Output | 30-50 bags/min |
| Application Material | Granule / Powder / Liquid / Paste |
| Film Material | PET/PE / NY/PE / BOPP/CPP / Composite Film |
| Film Width per Lane | 15-90mm, Depending on Bag Size and Lane Count |
| Control System | PLC Control + HMI Touch Screen |
| Power Supply | 220V / 380V, 50/60Hz |
| Listed Machine Power | 5KW |
Frequently Asked Questions
How many lanes can the Multi Lane Sachet Packing Machine use?
The available configurations are 2, 4, 6, 8, 10, and 12 lanes.
What is the packing speed per lane?
The stated speed is 30-60 bags per minute per lane. Actual output depends on lane count, sachet size, product, and machine settings.
What sachet styles are supported?
The listed formats are back seal, 3-side seal, and 4-side seal.
What products can be packed?
The machine can be configured for compatible granules, powders, liquids, and pastes.
What sealing methods are available?
Heat sealing is listed, while ultrasonic sealing is available as an optional configuration.
What information should be provided before ordering?
Please provide the product type, target filling weight or volume, sachet dimensions, seal style, film material, required output, preferred lane count, and voltage. Product and film samples are also recommended for configuration confirmation.
