How the machine works
The filled tray is placed in the sealing area with matching film positioned above it. The machine applies controlled heat and pressure to seal the film around the tray edge.

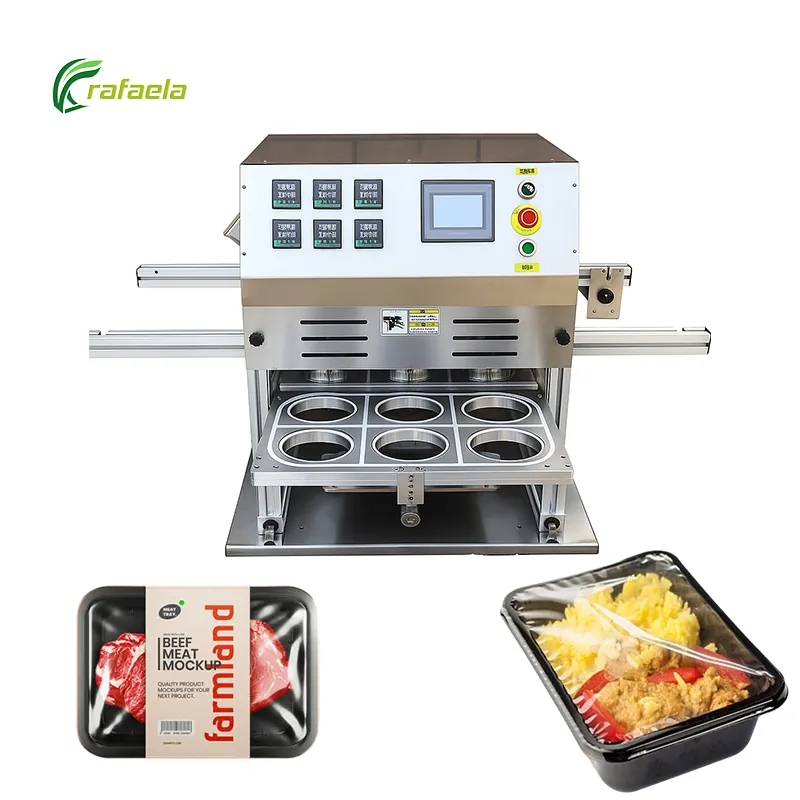

Tray Sealing Machine
Food Tray Packing Machine
The Food Tray Packing Machine, model TSM-10, is designed for sealing food trays used for ready meals, takeaway foods, catering portions, and other prepared food packaging. It supports PP, PET, PE, and compatible aluminum trays, while tray dimensions can be customized according to the actual container. With a stated sealing speed of 300-800 trays per hour, heat-sealing technology, and PLC touchscreen or manual control options, the machine provides a practical solution for regular tray packing operations.
1.5-3.5KWPower
Heat SealingSealing Type
220V / 50HzVoltage
70kgWeight
Overview
The Food Tray Packing Machine combines tray positioning and heat sealing in one compact system. It is suitable for food businesses that need stable tray closure with customizable container sizes.
Applications and options
The Food Tray Packing Machine is suitable for ready meals, takeaway food, catering portions, deli products, and other tray-packed foods. Tray dimensions and sealing setup can be customized according to the actual container.
Machine Advantages
300-800 Trays Per Hour
The TSM-10 provides a stated sealing speed of 300-800 trays per hour, helping improve packing efficiency during regular production and busy operating periods.
Reliable Heat Sealing
Controlled heat and pressure help create a firm seal around the tray edge. Correct film, tray material, temperature, and pressure settings support consistent sealing results.
Multiple Tray Materials
The machine supports PP, PET, PE, and compatible aluminum trays. This gives users flexibility when working with different food container materials and tray formats.
Customizable Tray Sizes
Tray dimensions can be customized according to the actual container. This makes the TSM-10 suitable for businesses using different meal boxes or tray specifications.
Simple Control System
PLC touchscreen or manual control options make routine operation straightforward. The machine structure is also designed for practical daily cleaning and maintenance.
Food Tray Packing Machine Video
Technical Parameters
| Machine Type | Tray Sealing Machine |
|---|---|
| Model | TSM-10 |
| Packaging Type | Heat Sealing Packaging / Vacuum Tray Packaging |
| Sealing Method | Heat Sealing |
| Voltage | 220V / 50Hz |
| Power | 1.5-3.5KW |
| Machine Dimensions | 1400x850x780mm |
| Machine Weight | 70kg |
| Product Name | Food Tray Packing Machine |
| Applicable Tray Material | PP / PET / PE / Aluminum |
| Tray Size Range | Customizable |
| Sealing Speed | 300-800 trays/hour |
| Control System | PLC with Touch Screen / Manual |
| Application Industries | Food Packaging / Ready Meal / Catering |
Frequently Asked Questions
What trays can the Food Tray Packing Machine seal?
The machine supports PP, PET, PE, and compatible aluminum trays. Final suitability depends on tray dimensions, rim structure, sealing film, and machine configuration.
What is the sealing speed?
The stated sealing speed is 300-800 trays per hour. Actual output depends on tray size, sealing time, operator workflow, and machine setup.
Can the tray size be customized?
Yes. The tray size range is customizable. Providing actual tray dimensions or physical samples helps confirm the correct mold and sealing configuration.
What sealing method does the TSM-10 use?
The machine uses heat sealing. Heat and pressure are applied to the sealing film and tray rim to create a secure closure around the container.
What products can be packed?
The machine is suitable for ready meals, takeaway foods, catering portions, deli foods, and other compatible food products packed in trays.
What information should be provided before ordering?
Please provide the tray length, width, height, tray material, sealing film specification, required output, and voltage requirement. Tray and film samples are also helpful for confirming compatibility.
