How the machine works
Premade pouches are positioned for filling and then sealed after the required product quantity is added. Filling and sealing settings can be adjusted according to the product and pouch specification.
Granule Packaging Machines

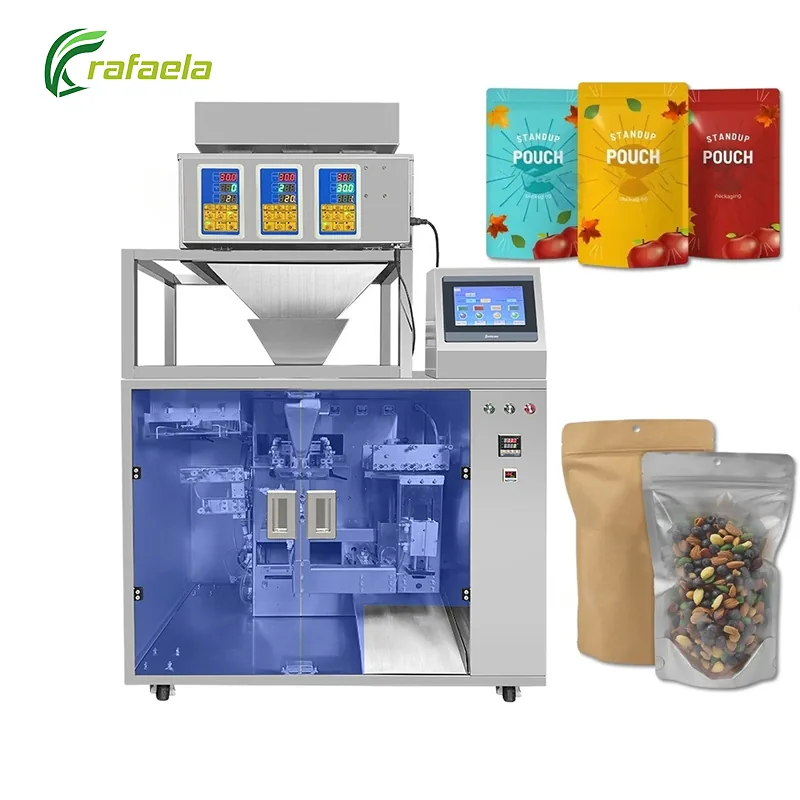

Doypack Pouch Packing Machine
The Doypack Pouch Packing Machine, model SPK-500, is designed for automatic filling and sealing of premade pouches with granules, powders, and liquids. It supports a packaging speed of 15-30 bags per minute, pouch lengths from 120 to 300mm, and pouch widths from 100 to 200mm. With a customizable filling capacity of 10-500ml, stainless steel construction, and heat-seal or ultrasonic sealing options, the machine provides a compact solution for flexible doypack pouch packaging.
1.3KWPower
Heat Seal / UltrasonicSealing Type
150kgWeight
Stainless Steel 304 / 316Material
Overview
The Doypack Pouch Packing Machine combines pouch handling, filling, and sealing in one compact packaging system. Its adjustable setup makes it suitable for different premade pouch sizes and material types.
Applications and options
The Doypack Pouch Packing Machine is suitable for granules, powders, and liquids packed in 3-side seal, 4-side seal, or compatible stand-up pouches. Final setup depends on pouch size, material type, filling volume, and sealing method.
Machine Advantages
Compact Machine Structure
The SPK-500 measures approximately 970x560x1500mm, making it suitable for small and medium production areas where floor space needs to be used efficiently.
15-30 Bags Per Minute
The machine provides a stated packaging speed of 15-30 bags per minute, helping support steady doypack pouch production while reducing repetitive manual packaging work.
Flexible Pouch Compatibility
The machine supports 3-side seal and 4-side seal pouches, while compatible stand-up pouch applications can also be configured according to the selected setup.
Customizable 10-500ml Filling
The filling capacity can be customized within the stated 10-500ml range, allowing the machine to match different products and package sizes.
Heat Seal or Ultrasonic Sealing
The machine can be configured with heat sealing or ultrasonic sealing according to the pouch material and packaging requirement, providing flexibility for compatible multi-layer films.
Doypack Pouch Packing Machine Video
Technical Parameters
| Model | SPK-500 |
|---|---|
| Applicable Materials | Granules, Powder, Liquid |
| Sealing Method | Heat Seal / Ultrasonic |
| Power | 1.3KW |
| Machine Dimensions | 970x560x1500mm |
| Machine Weight | 150kg |
| Product Name | Doypack Pouch Packing Machine |
| Packaging Speed | 15-30 bags/min |
| Pouch Type Compatibility | 3-Side Seal / 4-Side Seal |
| Pouch Size Range | Length 120-300mm / Width 100-200mm |
| Filling Capacity | 10-500ml (Customizable) |
| Power Supply | 220V, 50/60Hz |
| Material Compatibility | PET / AL / PE Multi-Layer Film |
| Machine Material | Stainless Steel 304 / 316 |
| Certifications | CE / FDA / ISO |
Frequently Asked Questions
What products can the Doypack Pouch Packing Machine pack?
The machine is suitable for compatible granules, powders, and liquids. Final suitability depends on product characteristics, filling volume, and pouch design.
What pouch sizes are supported?
The stated pouch length range is 120-300mm and the pouch width range is 100-200mm.
What is the filling capacity?
The stated filling capacity is 10-500ml and can be customized according to the product and packaging requirement.
What pouch materials can be used?
The machine supports compatible PET, AL, and PE multi-layer film pouches. Final compatibility depends on the pouch structure and sealing method.
What sealing methods are available?
The machine can be configured with heat sealing or ultrasonic sealing according to the pouch material and required sealing result.
What information should be provided before ordering?
Please provide the product type, filling volume, pouch length, pouch width, pouch material, pouch style, required output, and voltage requirement. Product and pouch samples are also helpful for confirming compatibility.
