How the machine works
The product is placed in the wrapping area and film is applied around the package according to the selected settings. The machine completes the wrapping and sealing cycle before discharging the finished pack.
Solid Packaging Machines

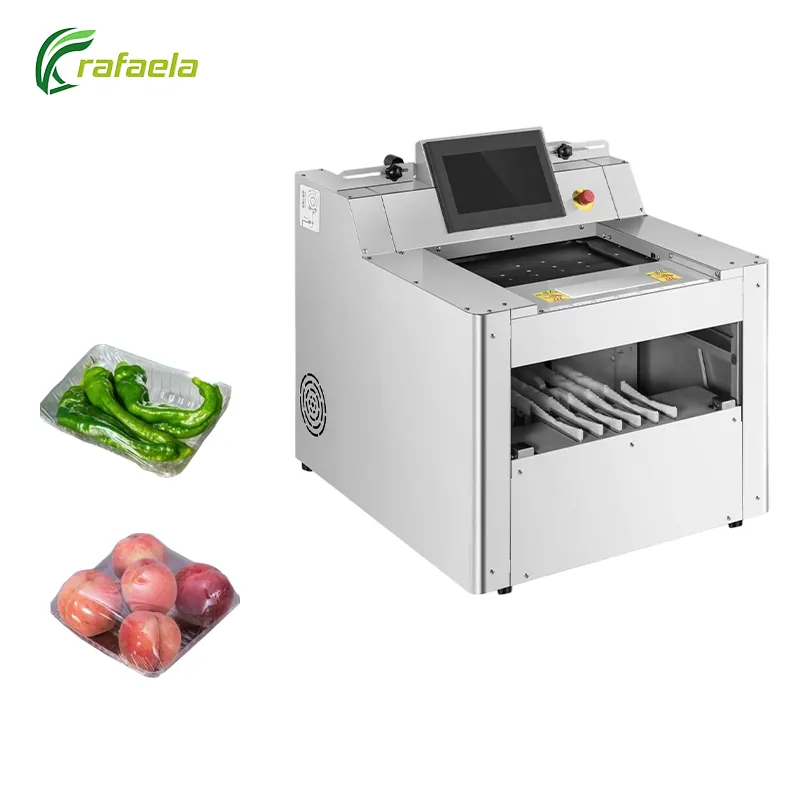

Cling Film Sealing Machine
The Cling Film Sealing Machine, model CFP-20, is designed for commercial wrapping and sealing of compatible food products with cling film. It provides a stated production speed of 14 packs per minute and supports package weights from 100g to 3kg. The machine accepts products from 80 to 280mm in length, 90 to 200mm in width, and 10 to 150mm in height. With a 10.2-inch TFT color touch screen, stainless steel construction, and support for 250-450mm film widths, the CFP-20 is suitable for routine food wrapping where stable film application and a neat finished package are required.
14 packs/minCapacity
900WPower
Stainless SteelMaterial
Overview
The Cling Film Sealing Machine focuses on producing a consistent wrapped finish around products of different sizes. Its adjustable package range and film specifications make it suitable for repeated commercial sealing tasks.
Applications and options
The CFP-20 is suitable for compatible food products and tray-based or tray-free packages. The selling-point source lists PVC and PE film compatibility, while final film suitability should be confirmed using the actual material.
Machine Advantages
Stable Finished Package Appearance
The machine is designed to apply film consistently around each package, helping create a neater and more uniform finished appearance across repeated production.
Wide Product Size Compatibility
Supported dimensions include 80-280mm in length, 90-200mm in width, and 10-150mm in height, allowing different compatible food packs to be processed on the same machine.
250-450mm Film Width Range
The listed film width range is 250-450mm, with a maximum film roll diameter of 160mm. This gives operators flexibility when matching film size to different package dimensions.
14 Packs/Min Sealing Capacity
The stated output is 14 packs per minute, supporting regular commercial wrapping and sealing while reducing dependence on fully manual film handling.
Clear 10.2-Inch Touch Interface
The machine uses a 10.2-inch TFT color touch screen with 1024x600 resolution, providing a clear interface for routine operating adjustments.
Cling Film Sealing Machine Video
Technical Parameters
| Model | CFP-20 |
|---|---|
| Packing Speed | 14 packs/min |
| Power Consumption | 900W |
| Machine Dimensions | 840x888x1415mm |
| Product Name | Cling Film Sealing Machine |
| Packing Length | 80-280mm |
| Packing Width | 90-200mm |
| Packing Height | 10-150mm |
| Packing Weight | 100g-3kg |
| Film Width | 250-450mm |
| Max Film Roll Diameter | 160mm |
| Display Screen | 10.2-inch TFT Color Touch Screen, 16:9 |
| Screen Resolution | 1024x600 |
| Power Supply | 220V / 50Hz |
| Working Humidity | 10-90% RH |
| Machine Material | Stainless Steel |
| Machine Net Weight | 118kg |
Frequently Asked Questions
What products can the Cling Film Sealing Machine handle?
The source supports commercial food wrapping applications. Final suitability depends on product size, shape, package format, and film material.
What package weight range is supported?
The listed packing weight range is 100g-3kg.
What product dimensions can be processed?
The machine supports lengths of 80-280mm, widths of 90-200mm, and heights of 10-150mm.
What film size can be used?
The listed film width is 250-450mm and the maximum film roll diameter is 160mm.
What film materials are listed?
The selling-point source lists PVC and PE film compatibility. Final compatibility should be confirmed with the actual film sample.
What information should be provided before ordering?
Please provide the product length, width, height, package weight, film material, film width, film thickness, and required output. Product photos and film samples are recommended for final compatibility confirmation.
