Irregular Product Packaging Machines

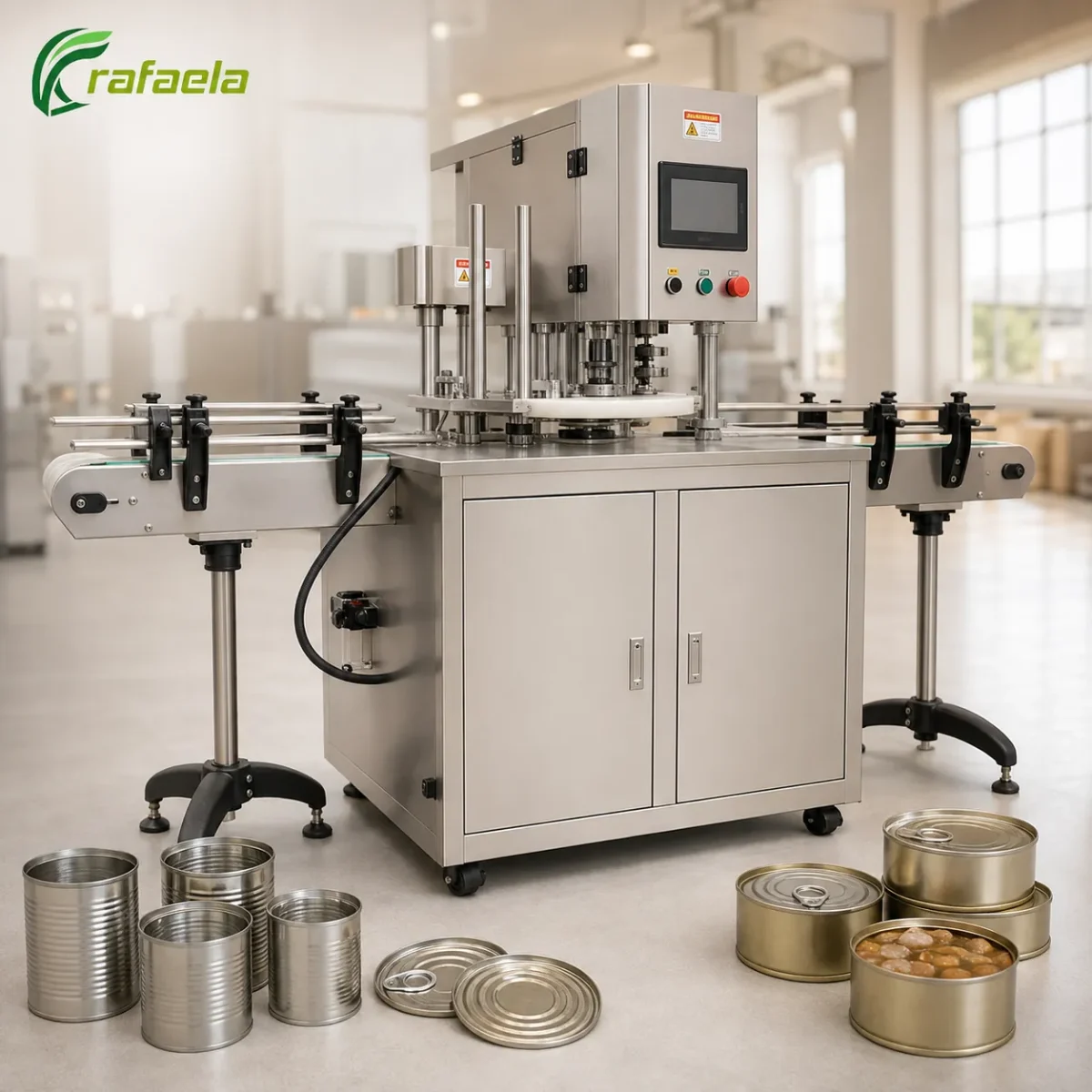

The Can Closing Machine is designed for automatic closing and sealing of compatible round cans at a stable speed of 25-30 cans per minute. It supports can diameters from 50 to 100 mm and sealing heights from 50 to 200 mm, allowing one machine to work with several common can sizes. Equipped with PLC control, a touchscreen interface, and a precision sealing head, the machine provides repeatable can closing performance while reducing manual handling during continuous production.
The Can Closing Machine combines automatic can positioning, lid closing, sealing, and discharge in one compact system. It is intended for manufacturers that require consistent can closure and convenient size adjustment across different production batches. The machine closes one can at a time and uses a controlled sealing structure to help create uniform and reliable closures when the can and lid specifications are correctly matched.
Cans are guided into the closing position and aligned beneath the sealing head. Once a can reaches the correct position, the closing mechanism engages the lid and completes the sealing cycle before the finished can is released. The PLC controller and touchscreen allow operators to set and monitor the main operating parameters, while the fully automatic cycle supports steady production with less manual intervention.
The Can Closing Machine is suitable for compatible round cans within the stated diameter and height range. It can be used where automatic lid closing and sealing are required for rigid can packaging. Final suitability depends on the can body, lid specification, diameter, height, and sealing structure. For this reason, actual can and lid samples should be checked before the final machine configuration is confirmed.
The machine provides a stated closing speed of 25-30 cans per minute. This helps maintain a consistent production rhythm and reduces the amount of manual work required during repetitive can closing operations.
The stated can diameter range is 50-100 mm, while the sealing height range is 50-200 mm. This allows the machine to handle several compatible can sizes through appropriate adjustment.
The sealing head is designed to create tight and repeatable closures when matched with suitable cans and lids. Correct machine adjustment and consistent container dimensions help maintain stable closing quality during continuous operation.
The machine uses a PLC controller with a touchscreen interface. Operators can set and monitor the main operating parameters from one control panel, making routine setup and production adjustments easier to manage.
The machine can be configured with 201 stainless steel or 304 stainless steel construction. Its metal structure is designed for repeated industrial use and provides a practical surface for routine cleaning and maintenance.
| Model | FQJ-Q1 |
|---|---|
| Voltage | 220V-240V |
| Power | 2.02KW |
| Machine Weight | 350KG |
| Product Name | Can Closing Machine |
| Automation Level | Fully Automatic |
| Sealing Speed | 25-30 cans/min |
| Cans Sealed at a Time | 1 |
| Can Sealing Height | 50-200mm |
| Can Diameter | 50-100mm |
| Material | 201 Stainless Steel / 304 Stainless Steel |
| Machine Size | L1330*W900*H1500mm |
| User Interface | PLC Controller, Touch Screen |
The machine is designed for compatible round cans within the stated size range. Can diameter should be between 50 and 100 mm, while the sealing height should be between 50 and 200 mm. Final compatibility depends on the can body, lid type, and sealing structure.
The stated speed is 25-30 cans per minute. Actual production output can vary according to can size, lid condition, feeding consistency, machine adjustment, and the overall production line arrangement.
Yes, provided the cans remain within the stated diameter and height ranges and use a compatible closing structure. Operators can adjust the machine according to the selected can dimensions when changing between approved sizes.
The machine closes one can per cycle. The fully automatic operating sequence allows cans to enter, close, and discharge continuously, supporting the stated output of 25-30 cans per minute under suitable operating conditions.
The machine is equipped with a PLC controller and touchscreen interface. Operators can use the control panel to set and monitor the main operating parameters and make routine adjustments during production.
Please provide the can diameter, can height, lid type, lid dimensions, required output, and clear photos or samples of the actual can and lid. These details are necessary for checking whether the sealing head and machine configuration match the selected container.
