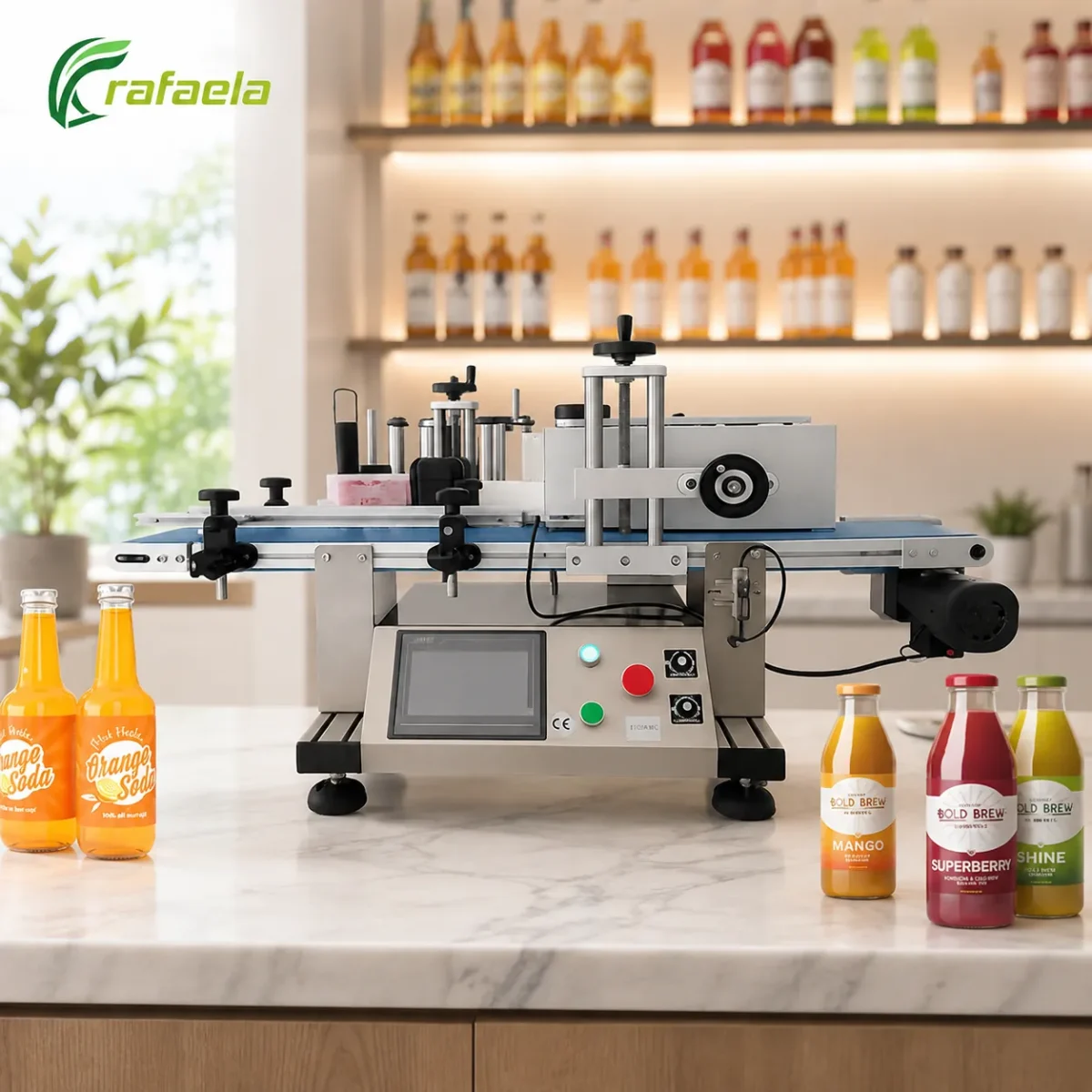

Desktop Automatic Labeling Machine
The Automatic Round Bottle Labeling Machine, model DLM-150, is designed for continuous application of self-adhesive labels to round bottles, jars, cans, and other compatible containers. It provides a stated labeling speed of 20-200 pcs per minute and a listed positioning accuracy of ±1mm. The machine supports bottle diameters from 20 to 100mm and label sizes from 20-300mm in length and 25-150mm in width. With PLC control, a touch-screen interface, and automatic product handling, the DLM-150 is suitable for production lines that require consistent labeling with less manual intervention.
The Automatic Round Bottle Labeling Machine is built for repeated labeling of cylindrical containers at different production speeds. Its adjustable bottle and label ranges make it suitable for switching between multiple product sizes within one labeling platform.
Containers enter the labeling section and are guided into position while the sensor detects each product. The label is fed, applied to the container surface, and pressed into place before the labeled product moves to the next process.
The DLM-150 is suitable for round bottles, jars, cans, and other compatible containers. Final setup depends on bottle diameter, container surface, label dimensions, label roll specification, and required output.
The machine is designed for repeated automatic labeling instead of manual label placement, helping maintain a more consistent production rhythm across larger batches.
The stated labeling speed is 20-200 pcs per minute, giving users flexibility to match the labeling rate to different bottle sizes and production conditions.
The source lists a labeling accuracy of ±1mm. Stable container guidance and sensor detection help support repeatable label positioning during continuous operation.
The DLM-150 supports bottle diameters from 20 to 100mm and a broad label size range, allowing users to adjust the machine for different round-container products.
PLC control and a touch-screen interface provide centralized adjustment of routine operating parameters, helping simplify setup when changing bottles or label specifications.
| Machine Type | Desktop Automatic Labeling Machine |
|---|---|
| Model | DLM-150 |
| Application | Round Bottles / Jars / Cans / Compatible Flat Surfaces |
| Power | 750W |
| Machine Dimensions | 1300x800x800mm |
| Machine Weight | 100kg |
| Product Name | Automatic Round Bottle Labeling Machine |
| Labeling Speed | 20-200 pcs/min |
| Labeling Accuracy | ±1mm |
| Label Size Range | Length 20-300mm / Width 25-150mm |
| Bottle Diameter Range | 20-100mm |
| Control System | Touch Screen + PLC Control |
| Power Supply | AC 110V / 220V, 50/60Hz |
The machine is mainly suitable for round bottles, jars, cans, and other compatible cylindrical containers. Final suitability depends on container dimensions and surface condition.
The listed bottle diameter range is 20-100mm.
The supported label length is 20-300mm and the label width is 25-150mm.
The stated speed is 20-200 pcs per minute. Actual output depends on bottle size, label dimensions, product spacing, and machine settings.
The source lists a labeling accuracy of ±1mm.
Please provide bottle diameter, bottle height, container material, label length, label width, label roll specification, required output, and voltage. Bottle and label samples are recommended for final configuration confirmation.
