How the machine works
The pallet is placed on the turntable and stretch film is attached to the load. As the turntable rotates, film is applied around the pallet under controlled tension until the programmed wrapping cycle is completed.
Pallet Wrapping Machine

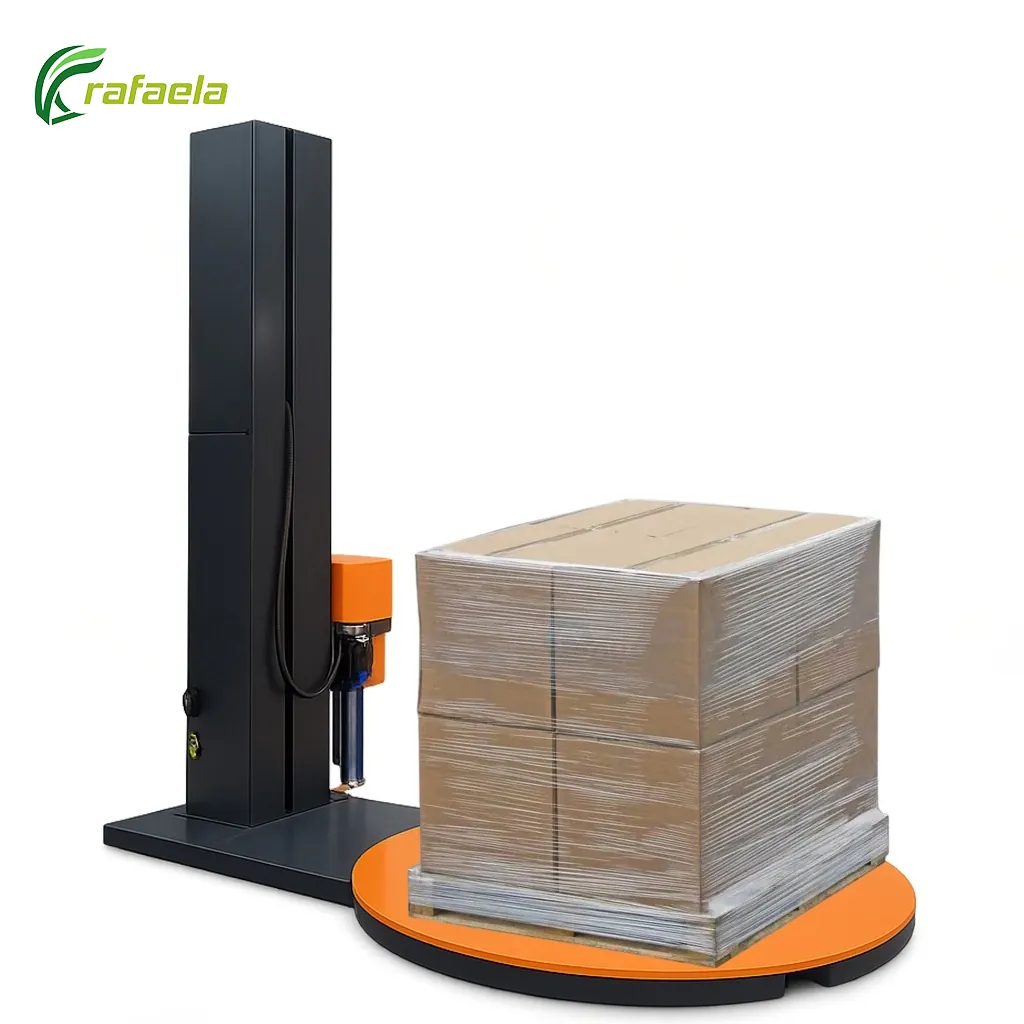

Automatic Pallet Stretch Wrapper
The Automatic Pallet Stretch Wrapper, model PWM-10, is designed to apply LLDPE stretch film around palletized loads with controlled tension and repeatable wrapping cycles. It supports film thicknesses from 17 to 35 microns, turntable speeds of 3-15 rpm, and stated pallet capacities of up to 2000kg or 3000kg depending on configuration. With available wrapping heights of 2000mm, 2400mm, or customized options, plus PLC and touch-screen control, the machine provides a flexible solution for stabilizing pallet loads before storage or shipment.
1.5KWPower
220V / 380V, 50Hz / 60HzVoltage
600kgWeight
Overview
The Automatic Pallet Stretch Wrapper focuses on creating consistent film coverage around loaded pallets while reducing dependence on manual wrapping. Key machine settings can be adjusted to match different pallet weights, heights, and wrapping requirements.
Applications and options
The Automatic Pallet Stretch Wrapper is suitable for palletized cartons, bags, containers, and other stable stacked goods. Available options include different turntable diameters, wrapping heights, automation levels, and automatic film cutting.
Machine Advantages
Controlled Stretch Film Application
The machine is designed to maintain consistent stretch-film tension around the pallet. Proper tension adjustment helps improve load containment while avoiding unnecessary film use.
Multiple Wrapping Heights
Standard maximum wrapping heights of 2000mm and 2400mm are listed, while customized configurations are also available for taller palletized loads.
Heavy-Duty Load Handling
Depending on configuration, the turntable can support maximum pallet loads of 2000kg or 3000kg, making the machine suitable for heavier industrial products.
Adjustable Turntable Speed
The 3-15 rpm speed range gives operators more control over the wrapping cycle. Lower speeds can be used for less stable pallets, while higher speeds can improve throughput for suitable loads.
Flexible Automation Setup
The machine is available in semi-automatic and fully automatic configurations. Optional automatic film cutting can further reduce manual steps at the end of each wrapping cycle.
Automatic Pallet Stretch Wrapper Video
Technical Parameters
| Machine Type | Pallet Wrapping Machine |
|---|---|
| Model | PWM-10 |
| Packaging Material | LLDPE Stretch Film |
| Voltage | 220V / 380V, 50Hz / 60Hz |
| Power | 1.5KW |
| Machine Dimensions | 2200x1700x2400mm |
| Machine Weight | 600kg |
| Product Name | Automatic Pallet Stretch Wrapper |
| Available Automation | Semi-Automatic / Fully Automatic |
| Film Thickness Range | 17-35 microns |
| Max Wrapping Height | 2000mm / 2400mm / Customizable |
| Turntable Diameter | 1500mm / 1650mm / 1800mm |
| Max Pallet Load | 2000kg / 3000kg |
| Turntable Speed | 3-15 rpm, Adjustable |
| Packaging Capacity | 30 pallets/hour |
| Control System | PLC + Touch Screen |
| Optional Feature | Automatic Film Cutting |
Frequently Asked Questions
What film is used with the Automatic Pallet Stretch Wrapper?
The machine uses LLDPE stretch film with a listed thickness range of 17-35 microns.
What pallet heights can be wrapped?
The listed maximum wrapping heights are 2000mm and 2400mm, with customized height options also available.
What turntable sizes are available?
Available turntable diameters are 1500mm, 1650mm, and 1800mm.
How much weight can the turntable support?
The listed maximum pallet load options are 2000kg and 3000kg, depending on the selected configuration.
Can the wrapping speed be adjusted?
Yes. The turntable speed is adjustable from 3 to 15 rpm to suit different pallet conditions and production requirements.
What details are needed before ordering?
Please provide pallet length, width, loaded height, maximum weight, required hourly output, stretch-film specification, voltage, and preferred automation level. Photos of typical pallet loads are also useful for confirming the correct configuration.
