How the machine works
The product is positioned in the wrapping area and film is applied around the package according to the selected settings. The wrapped product is then discharged for the next handling or storage step.
Automatic

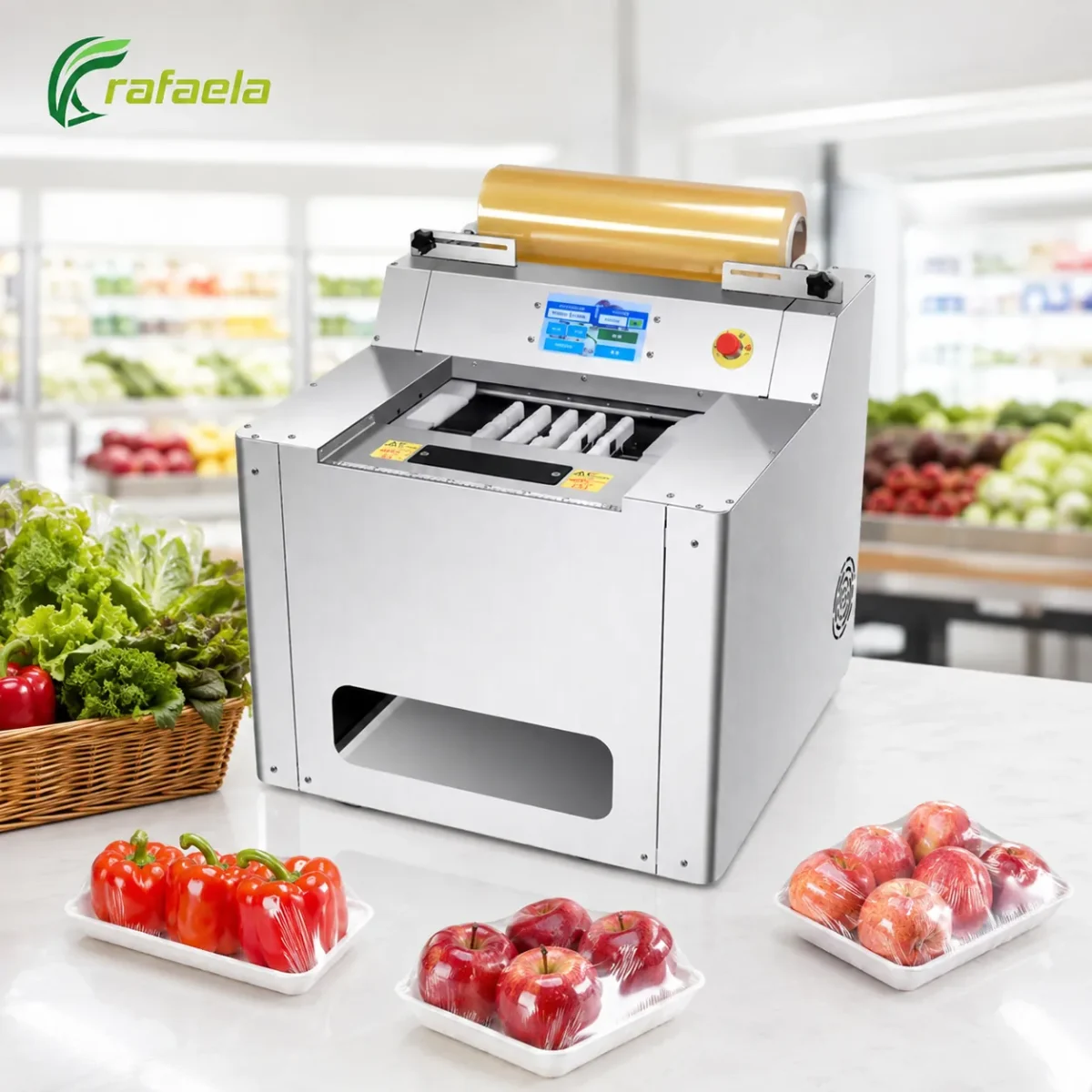

Automatic Cling Film Wrapping Machine
The Automatic Cling Film Wrapping Machine, model CFP-10, is designed for fast and repeatable wrapping of food products, fruits, vegetables, and compatible boxes with cling film or plastic wrap. It provides a stated production capacity of 11 packs per minute and supports product lengths from 80 to 280mm, widths from 90 to 200mm, and heights from 10 to 150mm. With PLC, touch-screen, and button-control options, the machine offers an adjustable packaging solution for supermarkets, food preparation areas, and commercial packing operations.
11 packs/minCapacity
450WPower
62kgWeight
Overview
The Automatic Cling Film Wrapping Machine replaces repetitive manual film wrapping with a controlled packaging process. Product dimensions and operating parameters can be adjusted within the supported range to match different daily packaging tasks.
Applications and options
The CFP-10 is suitable for compatible food products, fruits, vegetables, and boxes. Cling film, stretch film, and plastic wrap are listed as supported packaging materials, while the final setup depends on product dimensions and film specification.
Machine Advantages
11 Packs/Min Automatic Output
The machine provides a stated capacity of 11 packs per minute, helping increase consistency compared with repeated manual wrapping and supporting regular commercial packaging work.
Adjustable Product Size Range
It supports product lengths of 80-280mm, widths of 90-200mm, and heights of 10-150mm. This makes the machine suitable for a variety of compatible food packages and boxes.
Multiple Control Methods

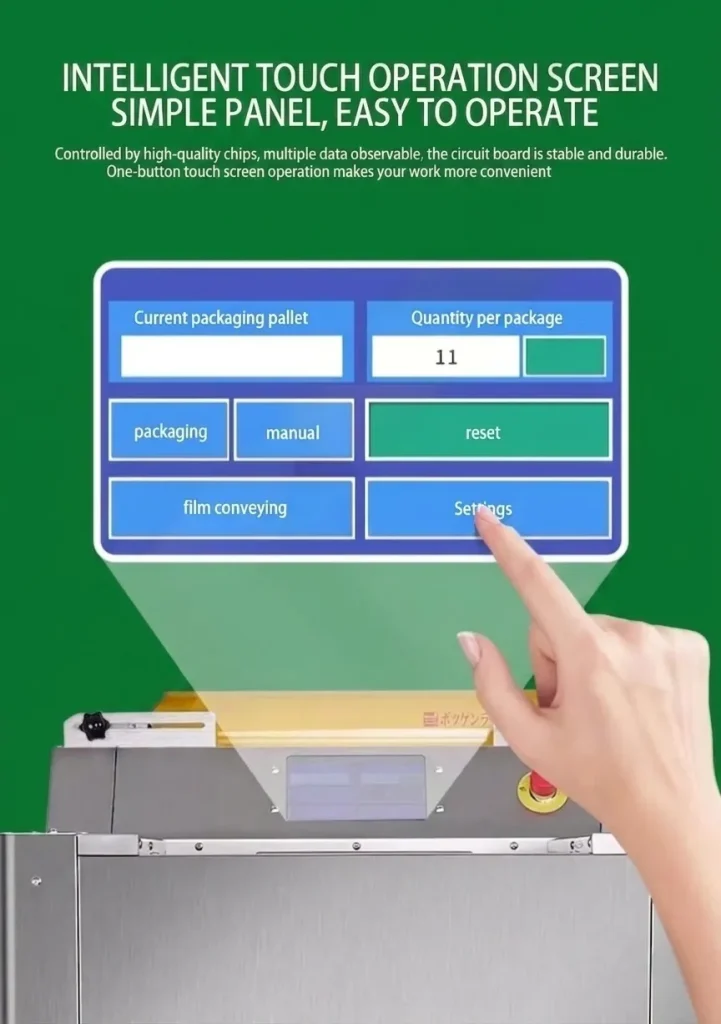

PLC, touch-screen, and button control are listed for the CFP-10, providing operators with convenient access to routine machine settings and adjustments.
Flexible Film Compatibility
The machine supports cling film, stretch film, and plastic wrap, allowing users to select the appropriate film according to the product and packaging requirement.
Compact, Easy Daily Operation
With a machine weight of 62kg and a listed power of 450W, the CFP-10 is designed for practical everyday use where stable wrapping and straightforward operation are important.
Automatic Cling Film Wrapping Machine Video
Technical Parameters
| Machine Type | Automatic / Semi-Automatic |
|---|---|
| Model | CFP-10 |
| Production Capacity | 11 packs/min |
| Packaging Material | Cling Film / Stretch Film / Plastic Wrap |
| Power | 450W |
| Machine Weight | 62kg |
| Product Name | Automatic Cling Film Wrapping Machine |
| Max Packaging Length | 80-280mm |
| Max Packaging Width | 90-200mm |
| Max Product Height | 10-150mm |
| Power Supply | AC 220V / 50Hz |
| Control System | PLC / Touch Screen / Button Control |
| Applicable Products | Food / Fruits / Vegetables / Boxes |
| Feature | Fast / Stable / Easy Operation / Adjustable |
Frequently Asked Questions
What products can the Automatic Cling Film Wrapping Machine wrap?
The source lists food, fruits, vegetables, and boxes. Final suitability depends on the product dimensions, shape, and film material.
What is the packaging speed?
The stated production capacity is 11 packs per minute.
What product sizes are supported?
The listed length range is 80-280mm, width range is 90-200mm, and product height range is 10-150mm.
What film materials can be used?
The source lists cling film, stretch film, and plastic wrap.
What control system does the machine use?
The listed control options include PLC, touch screen, and button control.
What information should be provided before ordering?
Please provide the product length, width, height, product type, film material, film dimensions, required output, and voltage. Product photos and film samples are also helpful for confirming compatibility.
