How the machine works
Flat cartons and products are fed into the machine and synchronized through the packaging process. The carton is opened, the product is inserted, and the box is closed before discharge.
Horizontal Cartoning Machine
Automatic Box Wrapping Machine

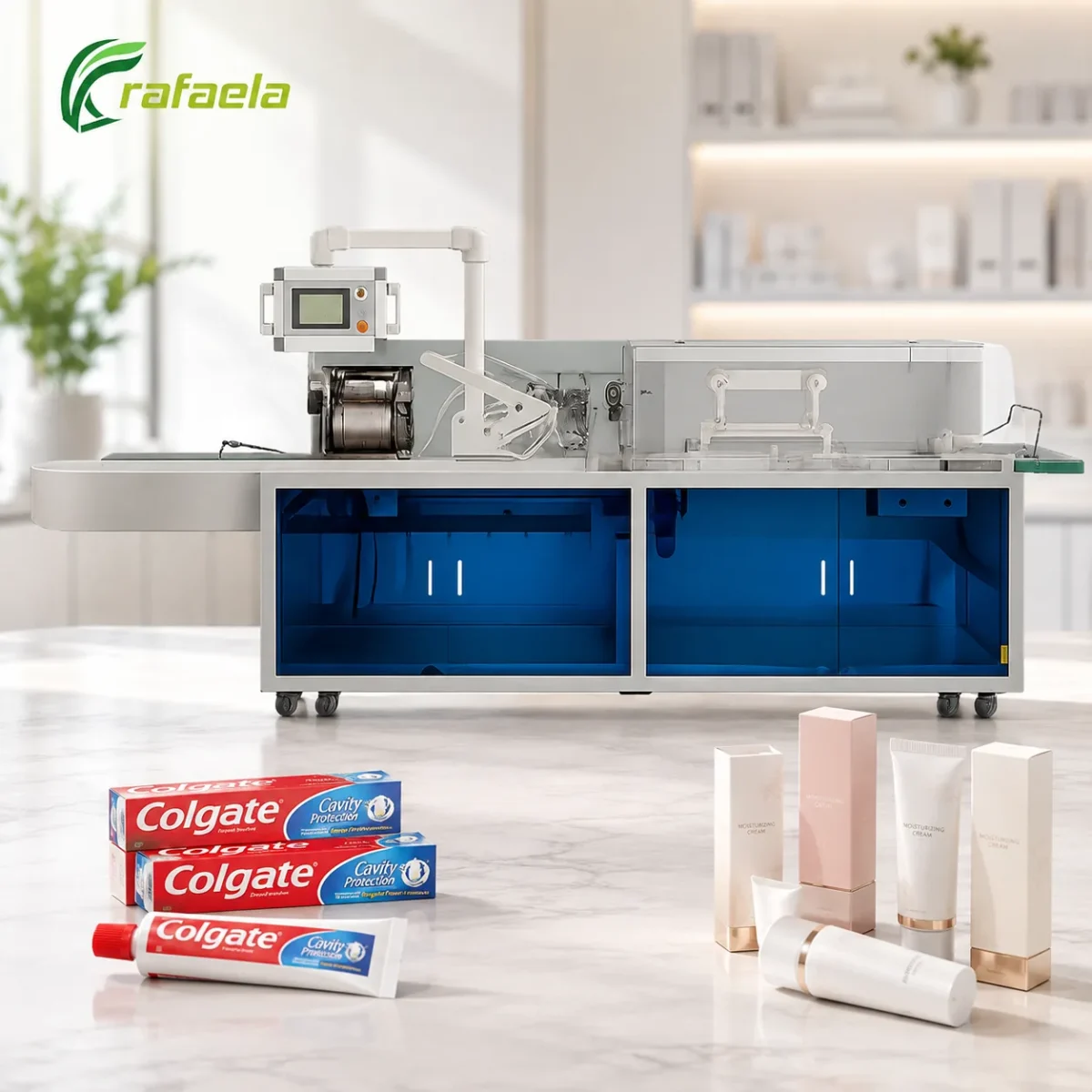

The Automatic Box Wrapping Machine, model CM-10, is an automatic horizontal cartoning system designed for high-speed box packaging of bottles, tubes, sachets, blisters, and other compatible products. It supports a stated packaging speed of 60-100 cartons per minute and a carton size range of L90-200 x W45-160 x H15-40mm. With PLC and touch-screen control, adjustable operating settings, and a 0.6-0.8MPa air pressure requirement, the machine is suitable for production lines that require efficient and repeatable carton packaging.
1500kgWeight
Stainless Steel (SS304) / Carbon SteelMaterial
Overview
The Automatic Box Wrapping Machine combines carton forming, product loading, box closing, and finished-carton discharge in one automated packaging process. Its horizontal structure supports different carton sizes within the stated range.
Applications and options
The Automatic Box Wrapping Machine is suitable for bottles, tubes, sachets, blisters, and other compatible products packed into folding cartons. Final setup depends on product dimensions, carton size, feeding method, and required speed.
Machine Advantages
High-Speed Box Packaging
The machine provides a stated packaging speed of 60-100 cartons per minute, helping improve throughput and reduce manual box packing work in larger production lines.
Wide Carton Size Range
It supports cartons from L90-200mm, W45-160mm, and H15-40mm, providing flexibility for different box dimensions within the supported range.
PLC and Touch-Screen Control
The PLC control system with touch-screen interface allows operators to monitor operating conditions and make routine parameter adjustments from one control panel.
Multiple Product Compatibility
The machine can be configured for bottles, tubes, sachets, blisters, and other compatible products, making it suitable for different box packaging applications.
Production-Line Integration
The horizontal machine layout is suitable for connection with upstream and downstream equipment. Final integration should be confirmed according to feeding direction, discharge height, and line layout.
Automatic Box Wrapping Machine Video
Technical Parameters
| Machine Type | Horizontal Cartoning Machine |
|---|---|
| Model | CM-10 |
| Machine Dimensions | 2800x1300x1500mm |
| Machine Weight | 1500kg |
| Product Name | Automatic Box Wrapping Machine |
| Automation Grade | Automatic |
| Carton Size Range | L(90-200) x W(45-160) x H(15-40) mm |
| Packaging Speed | 60-100 cartons/min |
| Power Supply | 220V / 380V, 50Hz / 60Hz |
| Listed Power | 2.5KW |
| Power Consumption in Custom Attributes | 2000W / 5000W |
| Control System | PLC + Touch Screen |
| Air Pressure Requirement | 0.6-0.8MPa |
| Applicable Products | Bottles, Blisters, Tubes, Sachets, etc. |
| Machine Material | Stainless Steel (SS304) / Carbon Steel |
Frequently Asked Questions
What products can the Automatic Box Wrapping Machine pack?
The machine is suitable for compatible bottles, tubes, sachets, blisters, and similar products. Final suitability depends on product dimensions and the selected feeding setup.
What carton sizes are supported?
The stated carton size range is L90-200 x W45-160 x H15-40mm.
What is the packaging speed?
The stated packaging speed is 60-100 cartons per minute. Actual output depends on carton size, product feeding, box structure, and production settings.
What air pressure is required?
The listed air pressure requirement is 0.6-0.8MPa. A suitable compressed-air supply is required for operation.
What control system does the machine use?
The machine uses PLC control with a touch-screen interface for operation, monitoring, and routine parameter adjustment.
What information should be provided before ordering?
Please provide the product dimensions, carton dimensions, carton sample, required output, feeding direction, and power supply requirement. Product and carton samples are also helpful for confirming compatibility.
